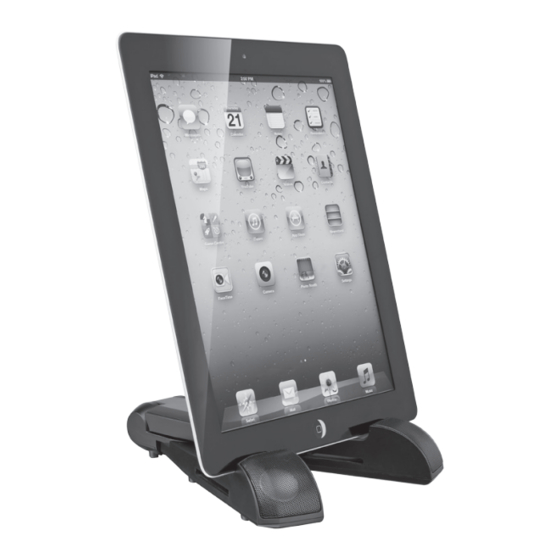

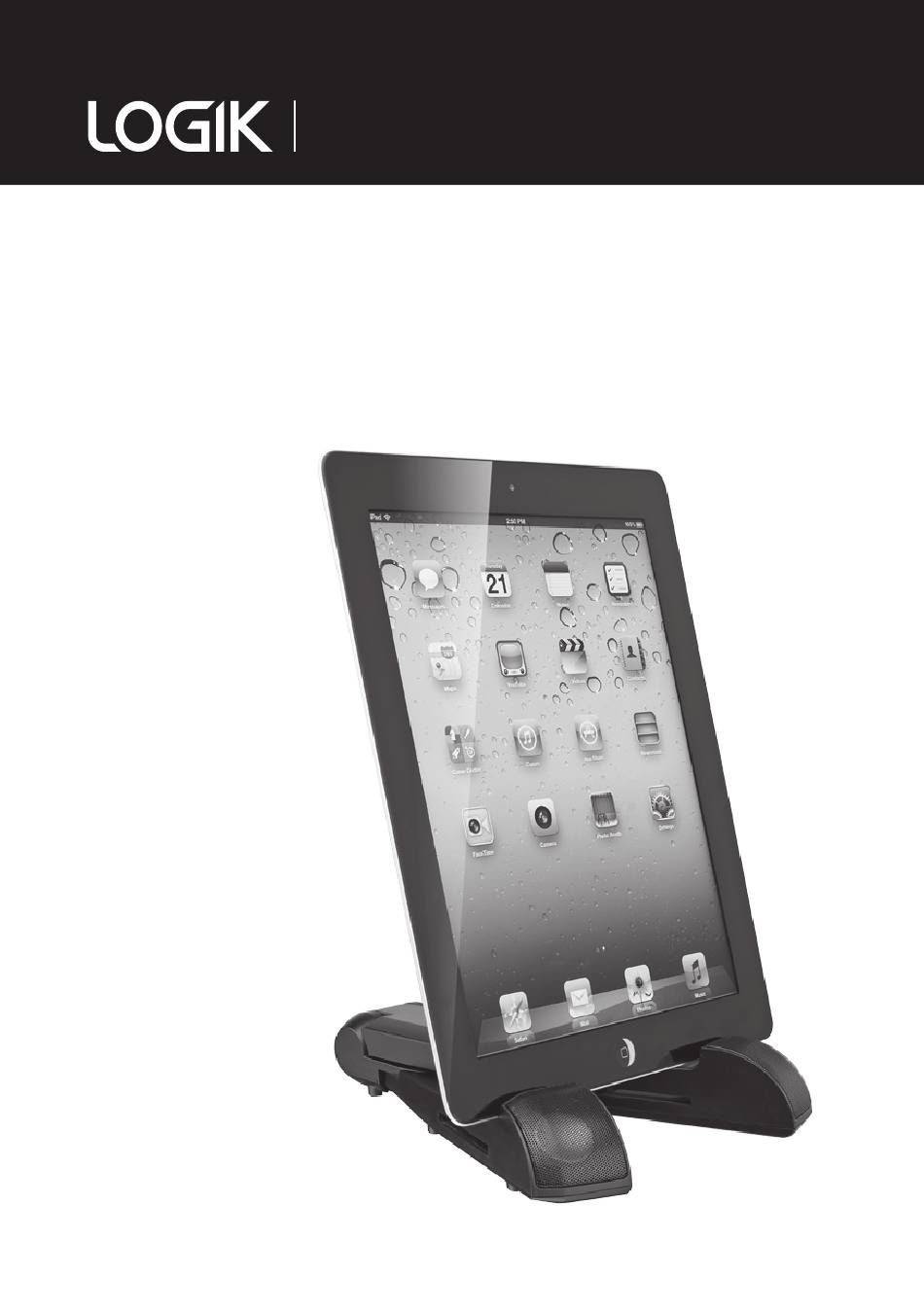

- Page 1 Instruction Manual Speaker Stand With Bluetooth® Technology LBTSS13...
-
Page 2: Table Of Contents
Contents Safety Warnings ................3 Unpacking ..................5 Product Overview .................6 Closed View ....................6 Open View .....................6 Control Panel....................7 Setting up the Speaker Stand ............7 Charging the Speaker..............9 Before First Use ....................9 Charging on Subsequent Uses ..............9 Connecting the Unit Using the Aux Cable ............10 Connecting the Unit Using Bluetooth®... -
Page 3: Safety Warnings
Safety Warnings • Do not block the openings • Read all instructions before in the speaker cabinets, using the unit and keep never push objects into the them for future reference. speaker vents or slots, and • Use only voltage specified provide sufficient space on the rating label of the around the unit for proper... - Page 4 • Children should be supervised to ensure that they do not play with the unit. • Do not attempt to open any part of the unit. There are no user-serviceable parts. • Avoid extreme variations in climate, temperature and environment, e.g., very hot or very cold places.
-
Page 5: Unpacking
Unpacking Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Main Unit Audio Cable USB Charging / Power Cable... -
Page 6: Product Overview
Product Overview Closed View Open View 1. Non-slip support tray 4. Speaker arms/stands 2. Vertical support & unit 5. Speakers control panel 3. Stand base... -
Page 7: Control Panel
Control Panel 1. LED indicator light 3. AUX socket 2. Unit’s ON/OFF switch 4. Micro USB connection / charging port Setting up the Speaker Stand... -
Page 9: Charging The Speaker
Charging the Speaker Before First Use To charge the built-in battery, in OFF mode, connect the USB charging cable to the Micro USB charging socket and the other end to your computer or USB charging device. The LED will illuminate RED while charging. Once fully charged, the LED will turn off. -
Page 10: Connecting The Unit Using The Aux Cable
Connecting the Unit Using the Aux Cable mobile phone / iPod : music players : Tablet PC / iPad : laptops / computers : 1. Connect one end of the audio cable to your media device’s headphones output. 2. Connect the other end of the audio cable to the unit’s AUX socket. -
Page 11: Connecting The Unit Using Bluetooth® Technology
Bluetooth® techology. 3. Switch on your media device’s wireless function to connect using Bluetooth® technolgoy. Look for “LBTSS13 Speaker Stand” in the list of devices with Bluetooth® technology. 4. Select “LBTSS13 Speaker Stand”. If asked for a password, enter “0000”, else press “Yes” or “OK” to accept the pairing. -
Page 12: Media Playback Controls
“LBTSS13 Speaker Stand” again and accept the pairing. Wait for the wireless device to confirm and for the unit to beep. • Media device, e.g., Tablet PC, does not list “LBTSS13 Speaker Stand”. • Check your media device’s wireless function is turned on, so you can connect with Bluetooth®... -
Page 13: Specifications
Specifications Model LBTSS13 Compatibility* Tablet PCs* Built-in lithium-ion battery and / Power Supply or USB charging/power cable Charge Voltage DC 5V Power Frequency Response 50 Hz ~ 20 kHz Impedance 4 Ω 193mm (L) x 165mm (W) x 167mm (H) (opened max.) - Page 16 All trademarks and trade names are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Hertfordshire., HP2 7TG, UK (IB-LBTSS13-130503V1)
