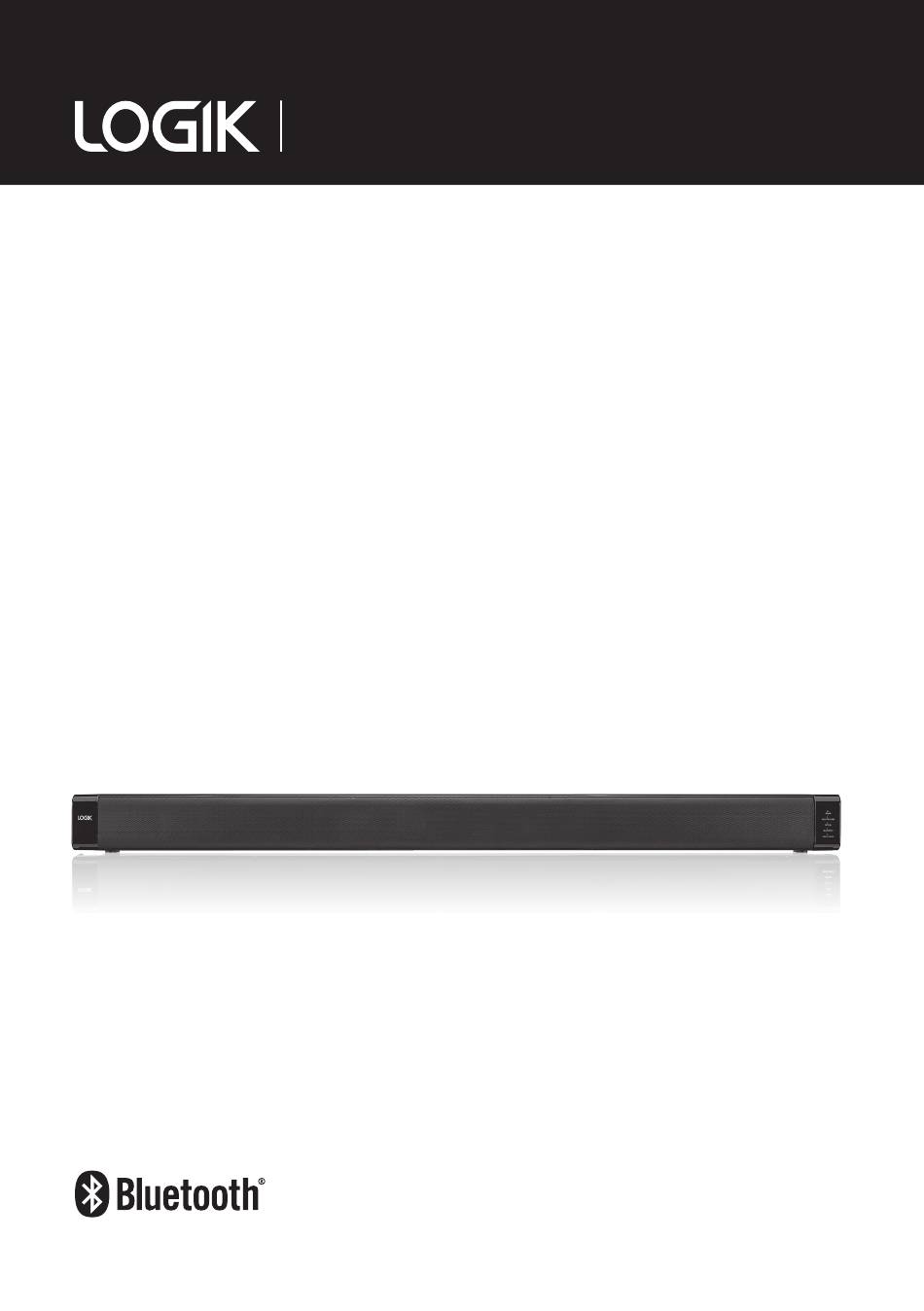

- Page 1 Instruction Manual Soundbar L32SBT15...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................6 Product Overview ..........................7 Main Unit ................................... 7 Remote Control ..........................8 Remove the Plastic Strip from the Remote Control ..............8 Battery Replacement for the Remote Control ................9 Remote Control Operation Range ....................10 Wall Mounting ..........................10 Connections ..........................12 Using the OPTICAL Connection ........................12 Using the AUX Connection..........................12... -
Page 4: Safety Warnings
Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure that curtains and other materials do not • Retain the manual. - Page 5 • The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. • Keep new and used battery away from children.
-
Page 6: Unpacking
Thank you for purchasing your new Logik Soundbar. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Product Overview

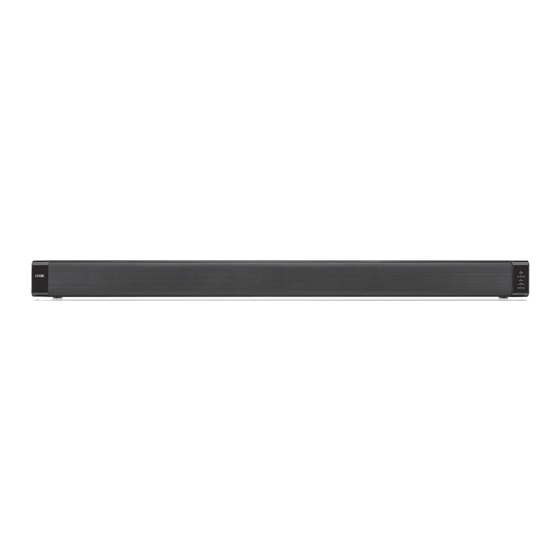

Product Overview Main Unit Front View 3. POWER / AUX/MP3 LINK / OPTICAL / 1. Speakers Bluetooth® / MOVIE/MUSIC Indicators 2. Remote Control Sensor Side View Rear View 1. MP3 LINK Socket 1. OPTICAL Socket /SOURCE Button 2. AUX (L/R) Sockets • Switch the unit between On and 3. -
Page 8: Remote Control
Remote Control Button 5. EQ Button Switch the unit between On and Select the preset equaliser. Standby mode. 6. MUTE Button 2. VOL +/– Buttons Silence the unit or restore the sound. Adjust the volume. Button Buttons Play/pause/resume playback in Skip to previous track/Skip to next track Bluetooth®... -
Page 9: Battery Replacement For The Remote Control
Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery. 1. Slide and hold the battery release tab in the direction of the arrow. 2. Pull out the battery holder and remove the old battery. 3. -
Page 10: Remote Control Operation Range
Remote Control Operation Range • The remote control sensor at the front unit is sensitive to the remote control’s commands up to a maximum of 6 metres away and within a maximum of a 40° arc. • Please note that the operating distance may vary depending on the brightness of the room. - Page 11 3. Fix two screws (not included) onto the wall. They should be parallel to each other. The distance between the two screws should be 720 mm. 720 mm 4. Leave a 5 mm gap between the wall and the screw’s head. Lift the unit with the attached wall brackets over the heads of the screws and slot into place.
-
Page 12: Connections
Connections Using the OPTICAL Connection Use an optical cable (not included) to connect the TV’s optical output socket to the unit’s OPTICAL socket. Before inserting the optical cable, remove the OPTICAL socket cover. OPTICAL cable (not included) Rear view of the unit If there is no sound output and the OPTICAL Indicator flashes, ensure the audio setting of the input source (e.g. -
Page 13: Using The Mp3 Link Connection
Using the MP3 LINK Connection Use the 3.5mm to 3.5mm audio cable to connect the audio device’s headphone socket to the unit’s MP3 LINK socket. 3.5mm to 3.5mm audio cable Audio device Side view of the unit Connecting to the Mains Supply To the mains •... -
Page 14: General Operation
General Operation When you first connect the main unit to the mains socket, the main unit will be in Standby mode. The POWER Indicator will light up red. Press the /SOURCE Button on the main unit or the • Button on the remote control to switch the main unit on. -
Page 15: Bluetooth® Operation
The Bluetooth® indicator will flash rapidly. 3. Activate your Bluetooth® device and select the search mode. 4. “L32SBT15” will appear on your Bluetooth® device. Select “L32SBT15” and enter “0000” for password if necessary. 5. On successful pairing, you will hear “Paired“ from the unit, and the Bluetooth® indicator will light up steadily. -
Page 16: Listen To Music From Bluetooth® Device
Listen to Music from Bluetooth® Device • If the connected Bluetooth® device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the player. • If the device also supports Audio Video Remote Control Profile (AVRCP), you can use the player’s remote control to play music stored on the device. -
Page 17: Specifications
If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again. Specifications Model L32SBT15 Main supply AC 220 – 240V ~50/60 Hz Main Unit power consumption 30 W Ecodesign Information... - Page 20 For advice on where to purchase accessories, please contact the store where you purchased your equipment. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-L32SBT15-160414V4...
