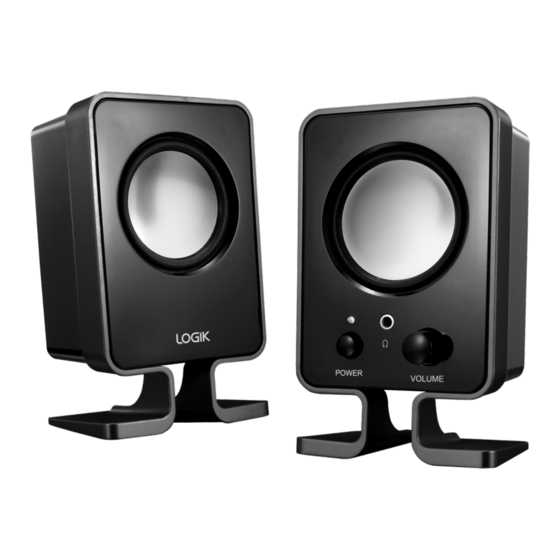

2.0 PC Speakers
Quick Start Guide
L20SP10
Congratulations
on the purchase of your new Logik 2.0 PC Speakers.
Before commencing the installation and set up, please check that you have all the items and familarise
yourself with this Quick Start Guide.
1
1
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it,
please do so according to the local regulations. The following items are included:
POWER
VOLUME
Main Unit
2.0 PC Speakers
Quick Start Guide
L20SP10
Quick Start Guide
PN: WOLS001B+110000
If items are missing or damaged, please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.
2
2
Product Overview
3.5mm Earphone socket
LED Indicator
POWER
Power Control
Volume Control
Main Adaptor
PN: EP230090+410100
Main Power Socket
VOLUME
POWER
VOLUME
3.5mm stereo plug
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Logik L20SP10
Summary of Contents for Logik L20SP10
- Page 1 Congratulations on the purchase of your new Logik 2.0 PC Speakers. Product Overview Before commencing the installation and set up, please check that you have all the items and familarise yourself with this Quick Start Guide. 2.0 PC Speakers 3.5mm Earphone socket...
- Page 2 Connection Important Safety Instructions Speci cation Output Power (Total): 4W Speaker Driver Unit: 2.5” 4 3W x 2 • Read all instructions before using these speakers and keep them for future reference. Frequency Response Range: 100Hz –18KHz • Use only voltage specified on the rating label of the speaker. Size (in mm): Speaker (LxWxH): 88m x 65mm x 147mm •...
