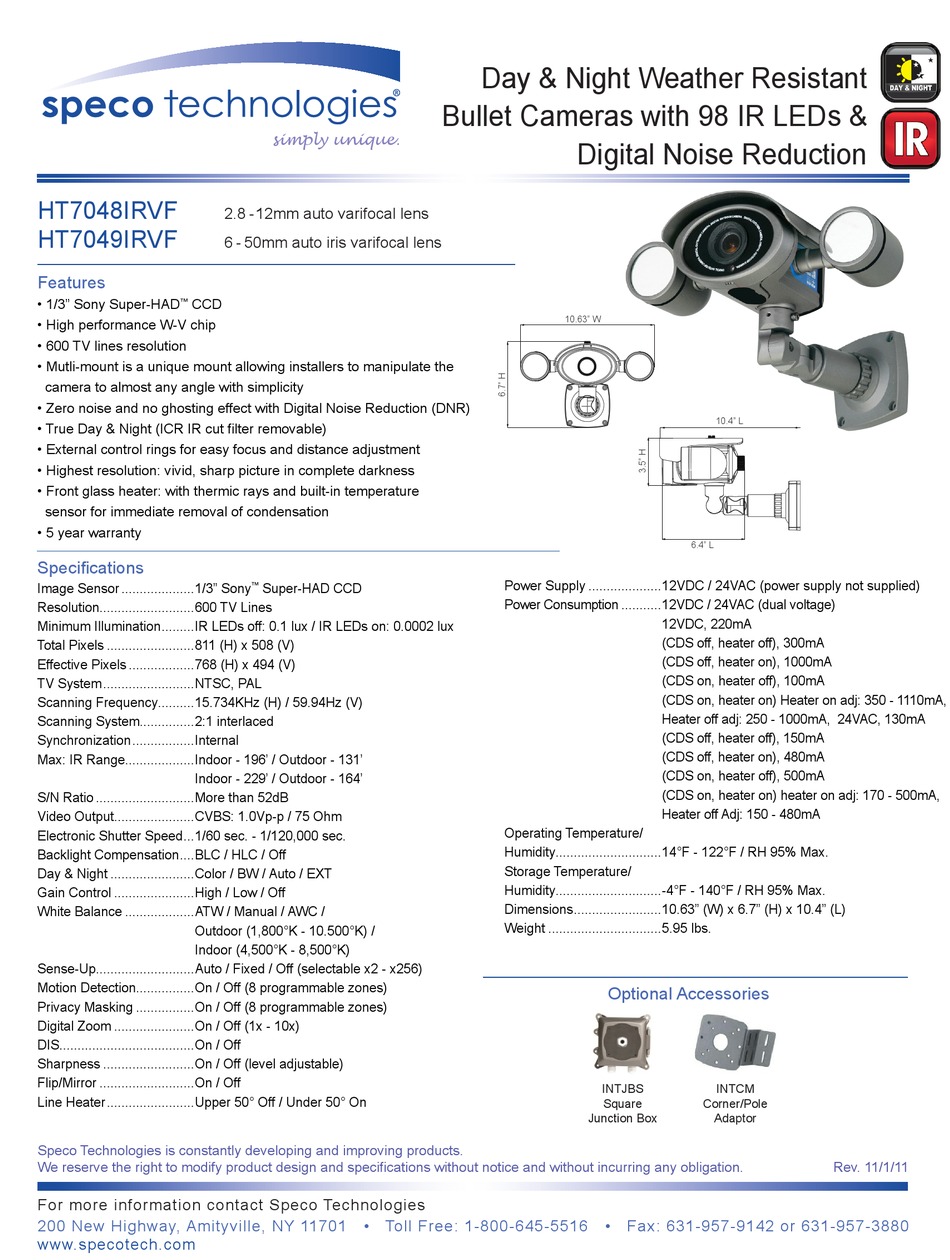

Speco HT-7048IRVF Specifications

HT7048IRVF
HT7049IRVF
Features
• 1/3" Sony Super-HAD CCD
™
• High performance W-V chip
• 600 TV lines resolution
• Mutli-mount is a unique mount allowing installers to manipulate the
camera to almost any angle with simplicity
• Zero noise and no ghosting effect with Digital Noise Reduction (DNR)
• True Day & Night (ICR IR cut filter removable)
• External control rings for easy focus and distance adjustment
• Highest resolution: vivid, sharp picture in complete darkness
• Front glass heater: with thermic rays and built-in temperature
sensor for immediate removal of condensation
• 5 year warranty

Specifications

Image Sensor ....................1/3" Sony
Resolution..........................600 TV Lines
Minimum Illumination .........IR LEDs off: 0.1 lux / IR LEDs on: 0.0002 lux
Total Pixels ........................811 (H) x 508 (V)
Effective Pixels ..................768 (H) x 494 (V)
TV System .........................NTSC, PAL
Scanning Frequency..........15.734KHz (H) / 59.94Hz (V)
Scanning System...............2:1 interlaced
Synchronization .................Internal
Max: IR Range...................Indoor - 196' / Outdoor - 131'
............................................ Indoor - 229' / Outdoor - 164'
S/N Ratio ...........................More than 52dB
Video Output ......................CVBS: 1.0Vp-p / 75 Ohm
Electronic Shutter Speed ...1/60 sec. - 1/120,000 sec.
Backlight Compensation ....BLC / HLC / Off
Day & Night .......................Color / BW / Auto / EXT
Gain Control ......................High / Low / Off
White Balance ...................ATW / Manual / AWC /
............................................ Outdoor (1,800°K - 10.500°K) /
............................................ Indoor (4,500°K - 8,500°K)
Sense-Up...........................Auto / Fixed / Off (selectable x2 - x256)
Motion Detection................On / Off (8 programmable zones)
Privacy Masking ................On / Off (8 programmable zones)
Digital Zoom ......................On / Off (1x - 10x)
DIS.....................................On / Off
Sharpness .........................On / Off (level adjustable)
Flip/Mirror ..........................On / Off
Line Heater ........................Upper 50° Off / Under 50° On
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique.
2.8 - 12mm auto varifocal lens
6 - 50mm auto iris varifocal lens
Super-HAD CCD
™
• Toll Free: 1-800-645-5516
Day & Night Weather Resistant
Bullet Cameras with 98 IR LEDs &
Digital Noise Reduction
10.63" W
Power Supply ....................12VDC / 24VAC (power supply not supplied)
Power Consumption ...........12VDC / 24VAC (dual voltage)
............................................
............................................
............................................
............................................
............................................
............................................
............................................
............................................
............................................
............................................
............................................
Operating Temperature/
Humidity.............................14°F - 122°F / RH 95% Max.
Storage Temperature/
Humidity.............................-4°F - 140°F / RH 95% Max.
Dimensions ........................10.63" (W) x 6.7" (H) x 10.4" (L)
Weight ...............................5.95 lbs.
Optional Accessories
INTJBS
Square
Junction Box
•
10.4" L
6.4" L
12VDC, 220mA
(CDS off, heater off), 300mA
(CDS off, heater on), 1000mA
(CDS on, heater off), 100mA
(CDS on, heater on) Heater on adj: 350 - 1110mA,
Heater off adj: 250 - 1000mA, 24VAC, 130mA
(CDS off, heater off), 150mA
(CDS off, heater on), 480mA
(CDS on, heater off), 500mA
(CDS on, heater on) heater on adj: 170 - 500mA,
Heater off Adj: 150 - 480mA
INTCM
Corner/Pole
Adaptor
Fax: 631-957-9142 or 631-957-3880
Rev. 11/1/11
