Installation, Operation & Maintenance Instructions
DESCRIPTION

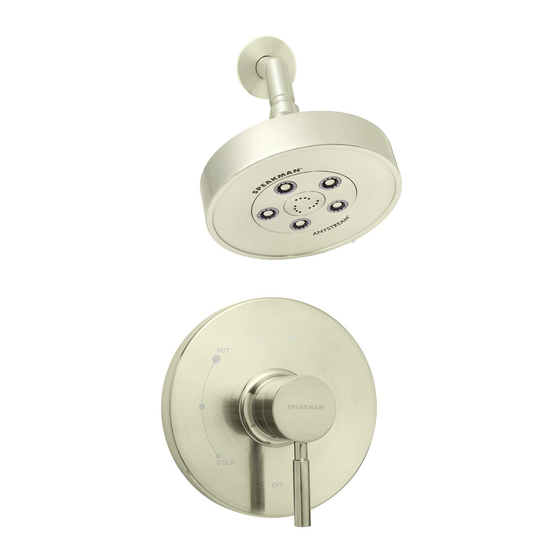

Speakman Neo™ Collection Combination Series, SM-1010 includes: Shower Valve Trim (CPT-1001), Shower
Arm with Wall Flange (S-2540), and Low Flow Multi Function Shower Head (S-3010-E2). This combination
does include the Shower Valve.
This combination comes with the following Speakman
Sentinel Mark II® Pressure Balance Shower Valve
CPV-PB:
SPECIFICATIONS
CPV-PB SENTINEL MARK II® PRESSURE BALANCE SHOWER VALVE:
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Certified / ASSE 1016 Certified
CPT-1001 SENTINEL MARK II® SHOWER VALVE TRIM:
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-2540 SHOWER ARM WITH WALL FLANGE:
CONNECTIONS: ½" NPT Male Inlet & Outlet
S-3010-E2 LOW FLOW MULTI FUNCTION SHOWER HEAD:
CONNECTIONS: ½" NPT Female Inlet
FLOW RATE: 2.0 gpm (7.6 L/min)
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard & WaterSense Certified
INSTRUCTIONS
See individual products for installation of the components and warranty information.
SPEAKMAN
NEO™ COLLECTION COMBINATION SERIES
Pressure Balance Shower Valve
Sweat & Thread Connections
SPEAKMAN
Phone: 800-537-2107
01/14/19
www.speakman.com
®
SM-1010
®
Fax: 800-977-2747
92C-SM-1010-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Speakman NEO SM-1010
Summary of Contents for Speakman NEO SM-1010
- Page 1 Installation, Operation & Maintenance Instructions NEO™ COLLECTION COMBINATION SERIES DESCRIPTION Speakman Neo™ Collection Combination Series, SM-1010 includes: Shower Valve Trim (CPT-1001), Shower Arm with Wall Flange (S-2540), and Low Flow Multi Function Shower Head (S-3010-E2). This combination does include the Shower Valve.
- Page 2 ROUGH-IN SPEAKMAN ® Phone: 800-537-2107 Fax: 800-977-2747 01/14/19 www.speakman.com 92C-SM-1010-01...
-
Page 3: Tools And Supplies
The use of Saw or similar tool, cut along traced line and harsh chemicals and abrasives on any of the Speakman remove this section of wall. custom finish products may damage the finish and void the product warranty. -
Page 4: Back-To-Back Installation
COPPER SWEAT INSTALLATION PIPE FITTING INSTALLATION When performing a Copper Sweat installation, it is recommended that you remove the Valve Cartridge ❹, Integral Stops ❷ ❸ Connect the HOT and COLD Water Supply Lines (not included), the Shower Outlet Pipe (not included), ❺, and Diverter Cartridge ❷... - Page 5 NOTE: A thermometer can be held at the Valve outlet to aid in either checking the existing factory setting or reaching the desired outlet temperature. Reinstall Rough-In Template over Valve to protect it during final wall preparation. Secure into position with the included screws. SPEAKMAN CPV-PB / CPV-PB-DV SERVICE INSTRUCTIONS CPV-PB / CPV-PB-DV REPAIR PARTS ®...
- Page 6 SPEAKMAN CPV-PB ROUGH-IN DIAGRAM ® NOTES: COMPLIANCE: ASME A112.18.1/CSA B125.1 1" 25mm ASSE1016/ASME A112.1016/CSA B125.16 HOLE FOR SHOWER ARM 6'-6" [2 METERS] TO FLOOR CONNECTIONS: 5-1/2" (140MM) DIA. 1/2" NPT MALE Hot/Cold Inlets: ½” Female Copper Sweat HOLE FOR 1/2" SWEAT VALVE ACCESS ½”...
- Page 7 FOR DEEP MOUNT APPLICATION MAINTENANCE For additional assistance or service please contact: Your new Speakman Product is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. The use of harsh SPEAKMAN ®...
- Page 8 SPEAKMAN CPT-1001 REPAIR PARTS ® ITEM NO. PART NO. DESCRIPTION RPG05-0874 SCREWS AND SPLINE ADAPTERS SPEAKMAN CPT-1001 ROUGH-IN DIAGRAM ® 1" 25mm HOLE FOR SHOWER ARM " 6'-6" 140mm R3 1 " " [2 METERS] 2" HOLE FOR 23.6mm 88.9mm TO FLOOR 50.4mm...
-
Page 9: Rough-In Dimensions
WARRANTY 175.4mm Additional warranty information can be found at: www.speakman.com Slide Escutcheon Plate (2) over the long Position Escutcheon Plate (2) flat against end of the Shower Arm (1). wall. Secure Escutcheon Plate (2) to Shower Arm (1) by tightening set screw with Allen Wrench (Hex: 2.0mm) provided. - Page 10 Chrome. Model: S-3010-E2 Max. Flow Rate: 2.0 gpm (7.6 L/min) To reduce mineral build-up, turn the handle to FLOOD SPEAKMAN position to let the water drain out after every use. ® Company Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi...
