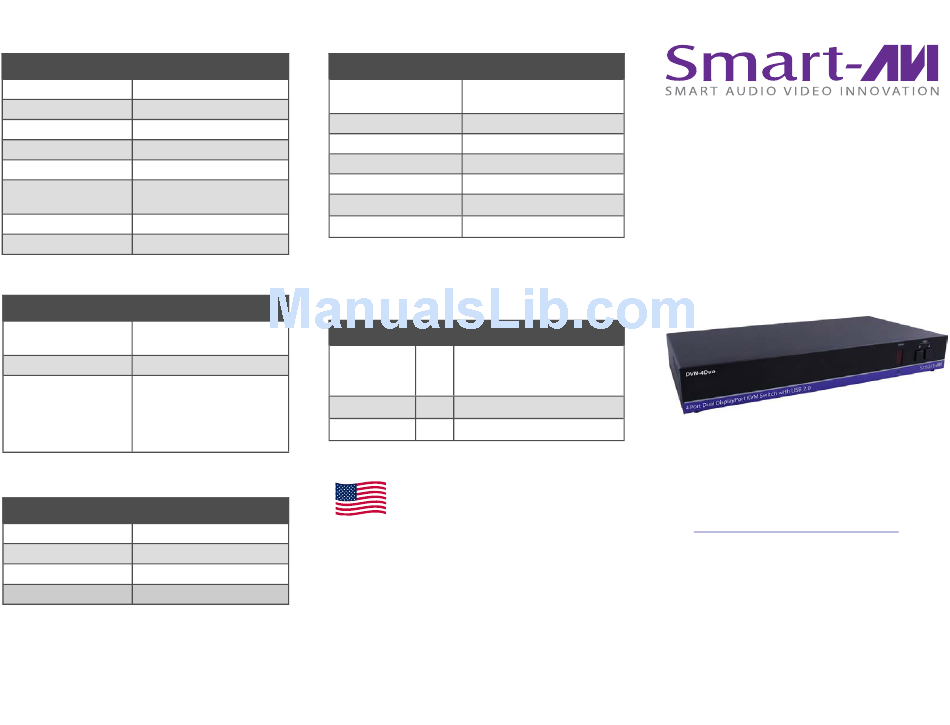

SMART-AVI DPN-4DUO User Manual

TECHNICAL SPECIFICATIONS

VIDEO
Format DisplayPort 1.2
Link Rate 5.4 Gbps/lane
Input Interface (8) DisplayPort (female)
Output Interface (2) DisplayPort (female)
Max Resolution Up to 3840 x 2160 @ 30Hz
DDC FAUX transaction mode
option over Aux channel
Input Equalization Automatic
Bandwidth Frequency 10.2 Gbps
USB
Signal Type USB 2.0, 1.1, and 1.0 w/
internal hub
Input Interface (8) USB Type B (female)
Output Interface (2) USB Type A (female) for
keyboard and mouse con-
nection only;
(2) for USB 2.0
Transparent

CONTROL

Front Panel Tactile Switches
RS-232 Control @ 9600 bps
Hotkeys Via Keyboard
Emulation Optional
OTHER
Power External 100-240 VAC/
5VDC4A @20W
Dimensions 12" W x 1.75" H x 6" D
Weight 4 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 23 to 95 °F (-5 to 35 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION

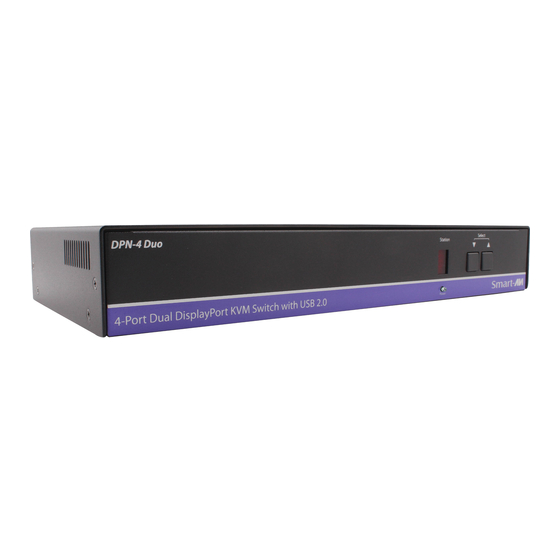

DPN-4DUO 1 4-Port Dual-Head DisplayPort
KVM Switch with USB 2.0 and
Front Panel Push Buttons.
PS5VDC4A 1 Power Supply

User Manual

1
Designed and Manufactured in the USA
DPN-4Duo
User Manual
4-Port Dual-Head DisplayPort 1.2
KVM Switch with Full Keyboard
Mouse Emulation and USB 2.0
Sharing
and
