SMART-AVI DPN-4DUO Quick Start Manual

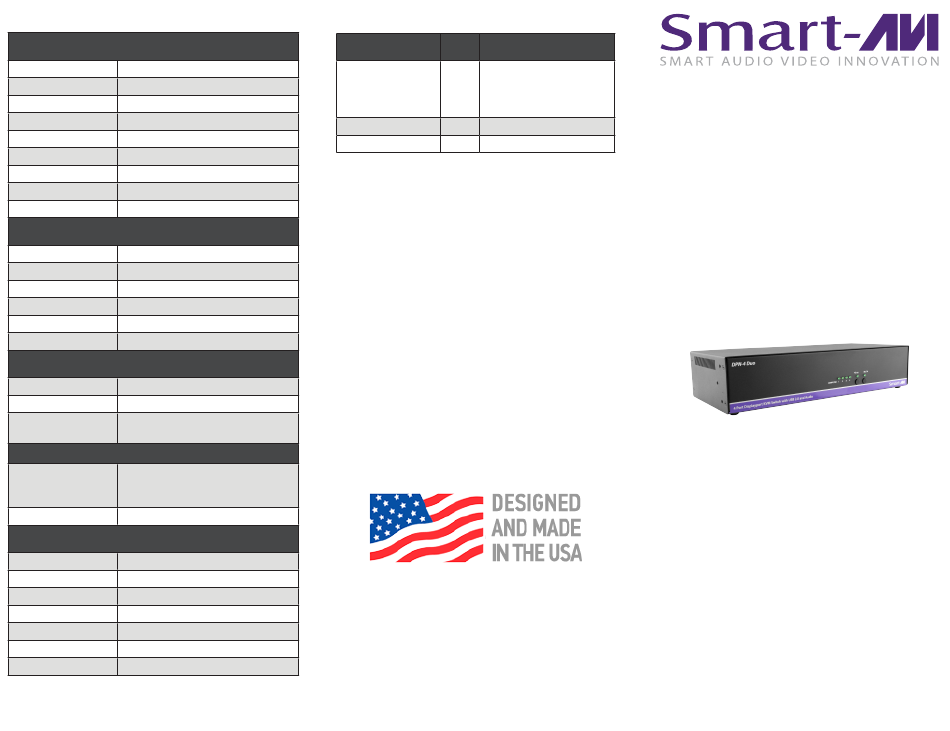

TECHNICAL SPECIFICATION

VIDEO

Format DisplayPort 1.2
Maximum Pixel Clock 165 MHz
Input Interface (TX) (8) DisplayPort
Output Interface (RX) (2) DisplayPort
Resolution Up to 4K (3840x2160 @60Hz)
DDC via AUX
Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.

AUDIO

Input Interface (4) 3.5 mm Mic Audio
Output Interface (1) 3.5 mm Mic Audio
Impedance 600 0hm
Frequency Responce 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB

USB

Signal Type USB 2.0
Input Interface (TX) (4) USB Type B
(2) USB 1.1 Type A K/M
Output Interface (RX)
(2) USB 2.0 Type A Transparent

CONTROL

Buttons, Select/Switch between
Front Panel Video & Audio sources and view the
current selected channel
Hot Keys Via Keyboard

OTHER

Power External 100-240 VAC/5VDC3A
Dimensions 2.875" H x 6" D x 12.75" W
Weight 4.4 lbs (unit only)
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Emulation Keyboard and mouse only
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
4-Port Dual-Head
DisplayPort KVM Switch
DPN-4DUO-S 1
with USB 2.0 and Mic
Audio Support
PS5VD3A-WMT 1 PS5VD3A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

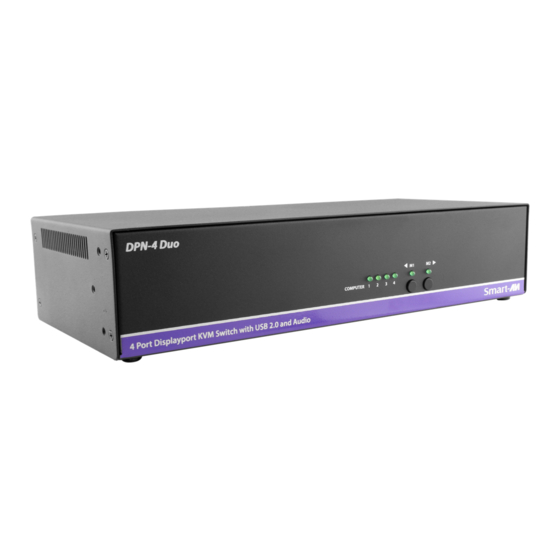

DPN-4DUO
4 Port Dual-Head DisplayPort
USB KVM Switch with Mic Audio
and USB 2.0 Support
ACCESS & CONTROL
UP TO 4 COMPUTERS
FROM A SINGLE WORKSTATION
Quick Start Guide
