Microsoft XBOX CONTROLLER Repair Instructions page 49

Hide thumbs Also See for XBOX CONTROLLER:

Advertisement

2. Install Mainboard

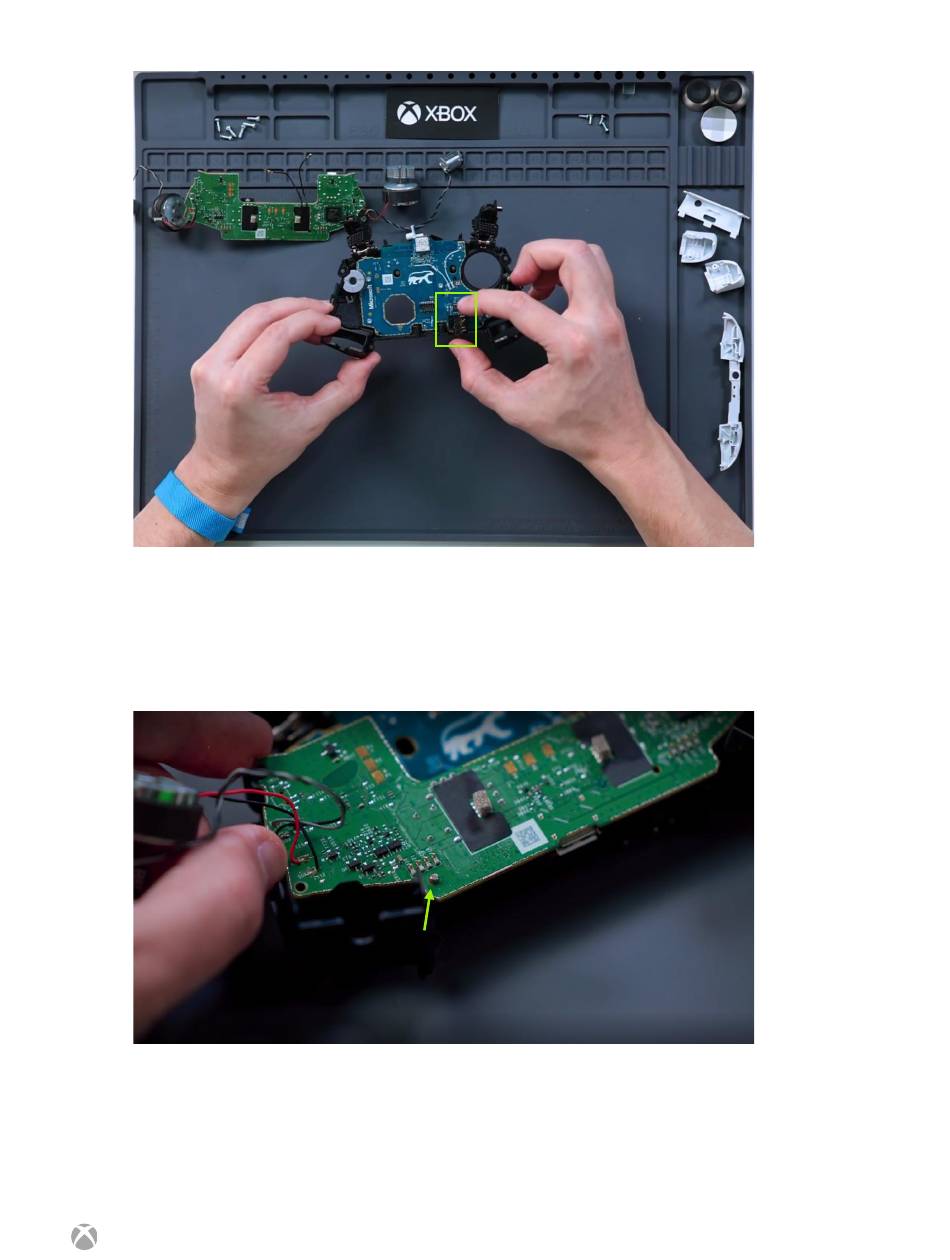

Align locating holes on mainboard with locating posts in the mid-frame. Taking care not to
damage the soldered connections to the motors and to align the connectors properly,
lower the mainboard into place and pressing firmly to mate the connectors.
48
