7. Remove Palm Motors

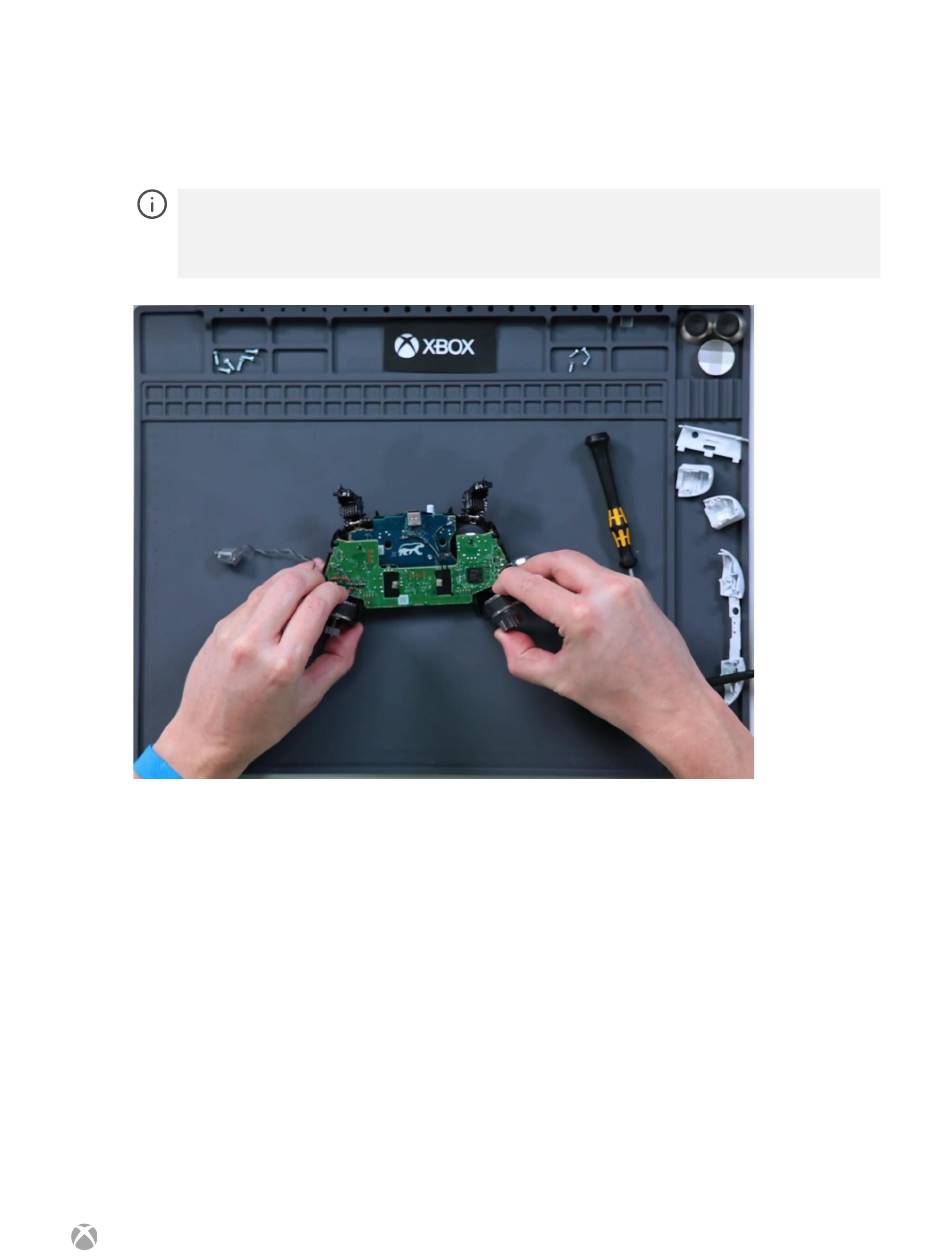

Remove the palm motors from the mid-frame using a plastic pry tool to gently pry the

retention clip back while pushing up on motor from the bottom.

NOTE:

The motors are soldered to the mainboard. This solder connection is very

fragile at both the motor and board ends. Take care not to damage the soldered

connections.
