Microsoft XBOX CONTROLLER Repair Instructions page 23

Hide thumbs Also See for XBOX CONTROLLER:

Procedure – Installation (Mid-frame)

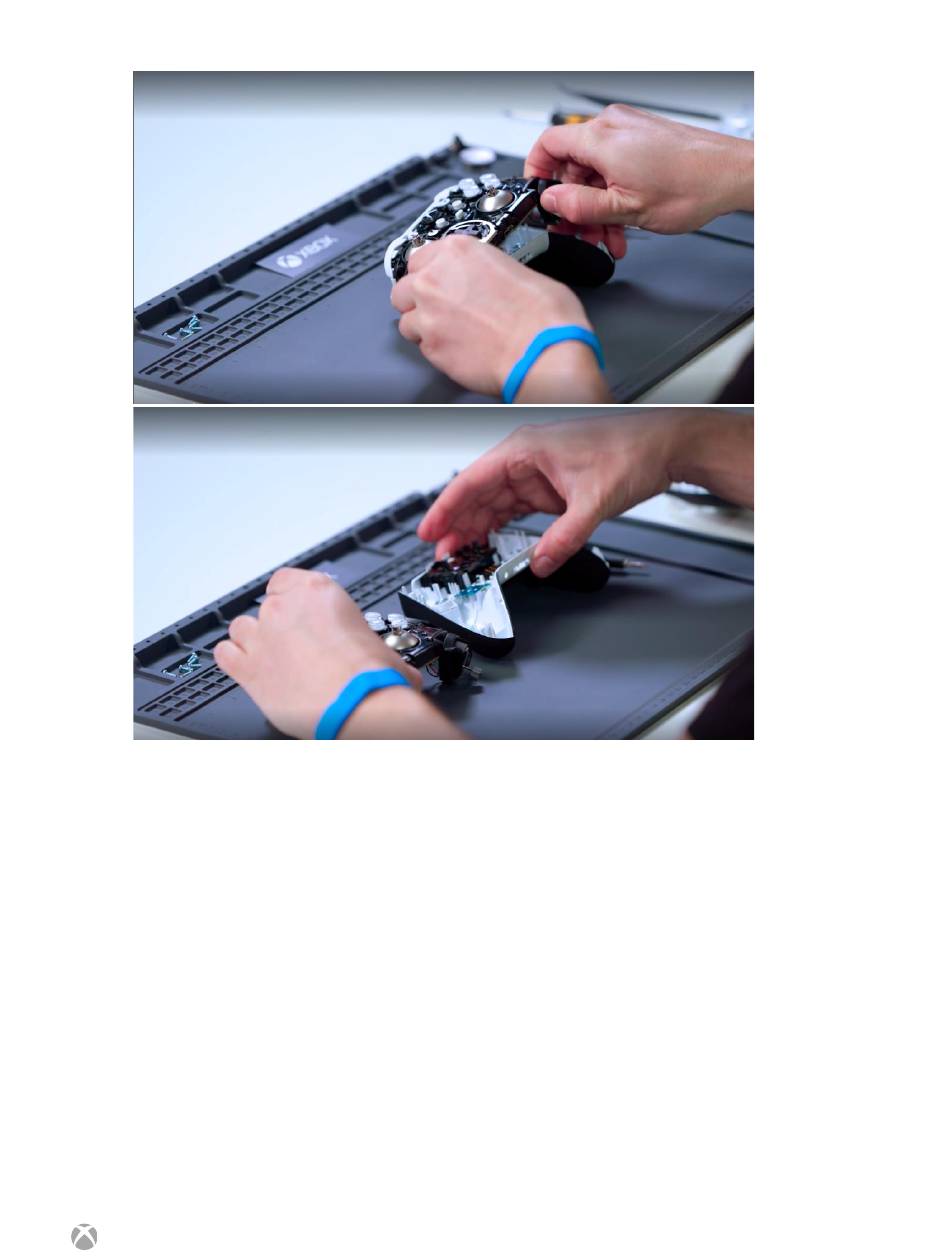

1. Install Mid-Frame

Ensure the trigger stops on the back case are set to the upper-most (full stroke) position.

Pull the triggers halfway and lower the mid-frame onto the back case, ensuring no wires

are pinched between the mid-frame and the back case. Verify that LT and RT function

normally before proceeding.
