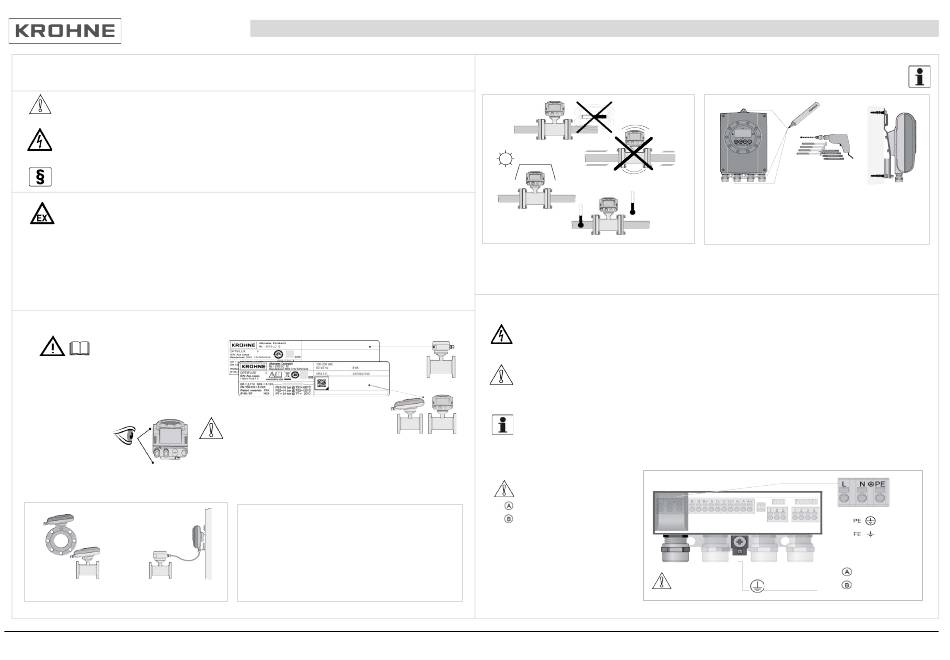

Quick Start

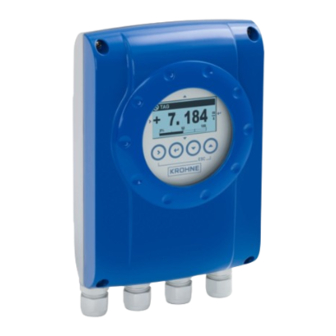

IFC 050
Signal converter for electromagnetic flowmeters
Installation, assembly, start-up and maintenance may only be performed by appropriately trained personnel.
This instrument complies with requirements of Low Voltage Directive. Instruments must not be connected to power supply
before reading instructions described in the manual.
The responsibility as to the suitability, intended use and corrosion resistance of the used materials against the measured
fluid of this device rests solely with the operator.
This device cannot be used in Hazardous Locations or Explosive Gas Atmospheres!
General
Maximum ambient and process temperatures are
depending on version (e.g liner material, size),
temperature and protection class
and maximum surface temperature of sensor.
Check the device nameplate to ensure that the device is
delivered according to your order.
Device version(s)
Compact version
Remote version
05/2022 - 4009341201 - IFC 050 R04 en
Device nameplate (example)
Transport
- No special requirements
- Use the original packing of the device(s) when transporting
to the installation location.
For initial set up, we strongly recommend that you also refer to the relevant manual!
1
Installation
General installation requirements
Avoid vibration / Electromagnetic fields
Use sunshade / Check medium and ambient temperature specifications
2
Electrical connection
All work on the electrical connections may only be carried out with the power disconnected. Take note of the voltage
data on the nameplate! Observe the national regulations for electrical installations!
The device must be grounded in accordance with regulations in order to protect personnel against electric shocks.
There should be no difference in potential between the flow sensor and the housing or protective earth of the signal
converter.
Observe without fail the local occupational health and safety regulations. Any work done on the electrical components of
the measuring device may only be carried out by properly trained specialists.
Refer to the manual for more details on connection options and preparing the signal and field current cable.
Electrical connections signal converter
100...230 VAC (-15% / +10%), 15 VA
24 VDC (-30% / +30%), 5.6 W
1
Refer to the documentation of the flow sensor for specific
installation conditions.
Wall mounting
Mounting the field housing, remote version
Power supply - grounding
PE
N
(FE) (L-) (L+)
L
2
