- Page 1 TWN4 MULTITECH 2 LEGIC M LF HF INTEGRATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................................. 3 ABOUT THIS MANUAL ..............................3 ABOUT TWN4 MULTITECH 2 LEGIC M LF HF ......................3 ELATEC SUPPORT ................................3 REVISION HISTORY ..............................3 SAFETY INFORMATION ..............................4 INTEGRATION INSTRUCTIONS ............................5 GENERAL ..................................5 LIST OF APPLICABLE RULES ............................5 SPECIFIC OPERATIONAL USE CONDITIONS ......................5... -
Page 3: Introduction

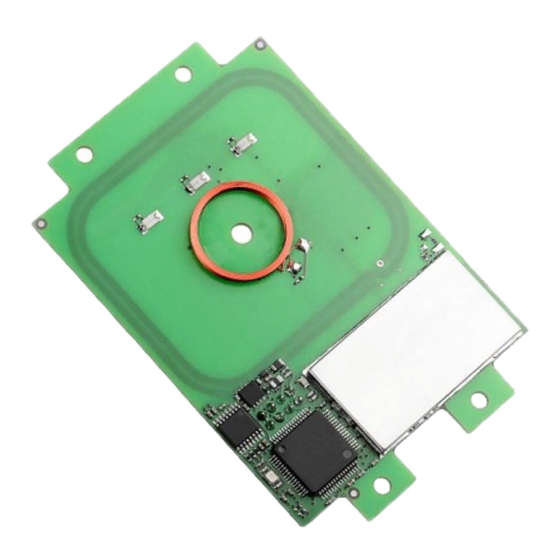

ISO 14443A/B (T=CL), ISO 15693, ISO 18092 / ECMA-340 (NFC). The TWN4 MultiTech 2 LEGIC M LF HF reader module has integrated RFID (LF & HF) and NFC, which is supported by mobile phones with Android version 4.3 or greater. The app on the reader communicates with the NFC module with easy commands. -
Page 4: Safety Information
• Before installing TWN4 MultiTech 2 LEGIC M LF HF into a host device, the integrator should also make sure that he/she has read and understood the ELATEC technical documentation related to TWN4 MultiTech 2 LEGIC M LF HF, as well as the technical documentation related to the host device. -
Page 5: Integration Instructions
GENERAL TWN4 MultiTech 2 LEGIC M LF HF may be installed in any host devices, as long as it is operated under the operational conditions stated in the user manual and other technical documents (e.g. data sheet). TWN4 MultiTech 2 LEGIC M LF HF is equipped with two integrated antennas. -
Page 6: Antennas
ADDITIONAL TESTING, PART 15 SUBPART B DISCLAIMER TWN4 MultiTech 2 LEGIC M LF HF is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. -
Page 7: Electrical Connection
Active-low, enables RS-232 transceiver. Short to Pin 6 (GND) when using RS-232. *Hirose DF11 series, 2mm pitch or type equivalent. In case the reader module is not connected with a cable delivered by ELATEC, the reader module can only be connected with a cable equipped with the following connector: Manufacturer: Shenzhen Le Qing Lin Hai Electronics Co., Ltd... -
Page 8: Compliance Statements
4 COMPLIANCE STATEMENTS TWN4 MultiTech 2 LEGIC M LF HF is in compliance with the EU directives and regulations as listed in the respective declaration of conformity. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: United Kingdom
UNITED KINGDOM TWN4 MultiTech 2 LEGIC M LF HF complies with the requirements of the UK legislations and other regulations as listed in the respective UK declaration of conformity. The importer is responsible for applying the following information to the packaging of the product: •... -
Page 10: Integrator And Host Requirements
Using a permanently affixed label, TWN4 MultiTech 2 LEGIC M LF HF must be labeled with its own FCC and IC identification numbers. In case this label is not visible anymore after integration of TWN4 MultiTech 2 LEGIC M LF HF in the host device, it is necessary to... -
Page 11: Appendix
Federal Communications Commission Regulations (CFR) For more information about this integration manual or TWN4 MultiTech 2 LEGIC M LF HF, go to www.elatec.com or contact ELATEC. © 2022 ELATEC GmbH – TWN4 MultiTech 2 LEGIC M LF HF integration manual DocRev2 – 07/2022... - Page 12 Elatec reserves the right to change any information or data in this document without prior notice. Elatec declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer himself at his own responsibility. Where application information is given, it is only advisory and does not form part of the specification.
