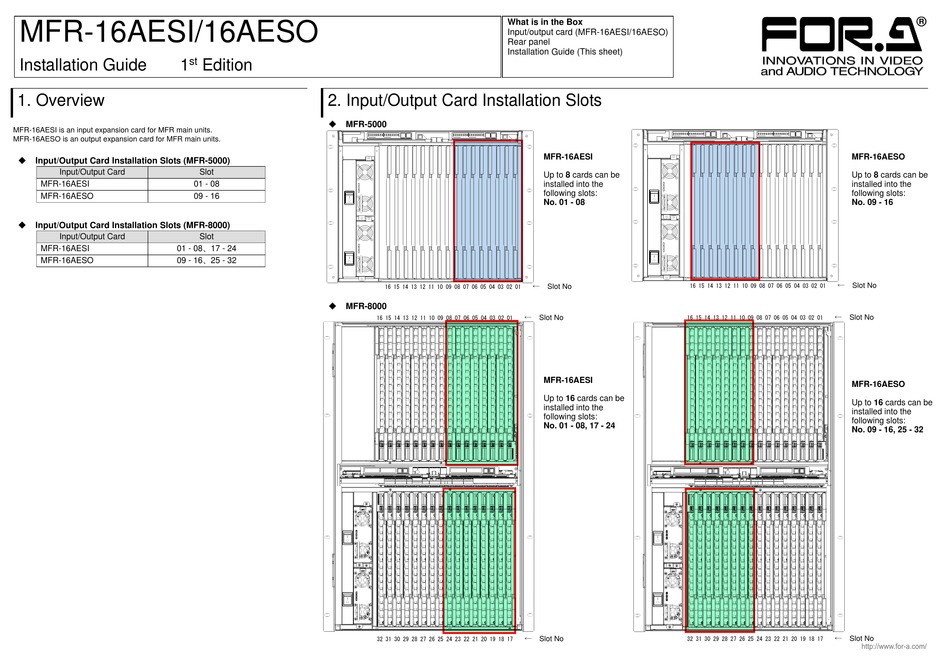

MFR-16AESI/16AESO
st
Installation Guide
1
1. Overview
MFR-16AESI is an input expansion card for MFR main units.
MFR-16AESO is an output expansion card for MFR main units.
Input/Output Card Installation Slots (MFR-5000)
Input/Output Card
MFR-16AESI
MFR-16AESO
Input/Output Card Installation Slots (MFR-8000)
Input/Output Card
MFR-16AESI
01 - 08、17 - 24
MFR-16AESO
09 - 16、25 - 32
Edition
2. Input/Output Card Installation Slots
MFR-5000
Slot
01 - 08
09 - 16
Slot
MFR-8000
What is in the Box
Input/output card (MFR-16AESI/16AESO)
Rear panel
Installation Guide (This sheet)
MFR-16AESI
Up to 8 cards can be
installed into the
following slots:
No. 01 - 08
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
MFR-16AESI
Up to 16 cards can be
installed into the
following slots:
No. 01 - 08, 17 - 24
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
MFR-16AESO
Up to 8 cards can be
installed into the
following slots:
No. 09 - 16
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
MFR-16AESO
Up to 16 cards can be
installed into the
following slots:
No. 09 - 16, 25 - 32
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
