Summary of Contents for Ryobi R18LTR10

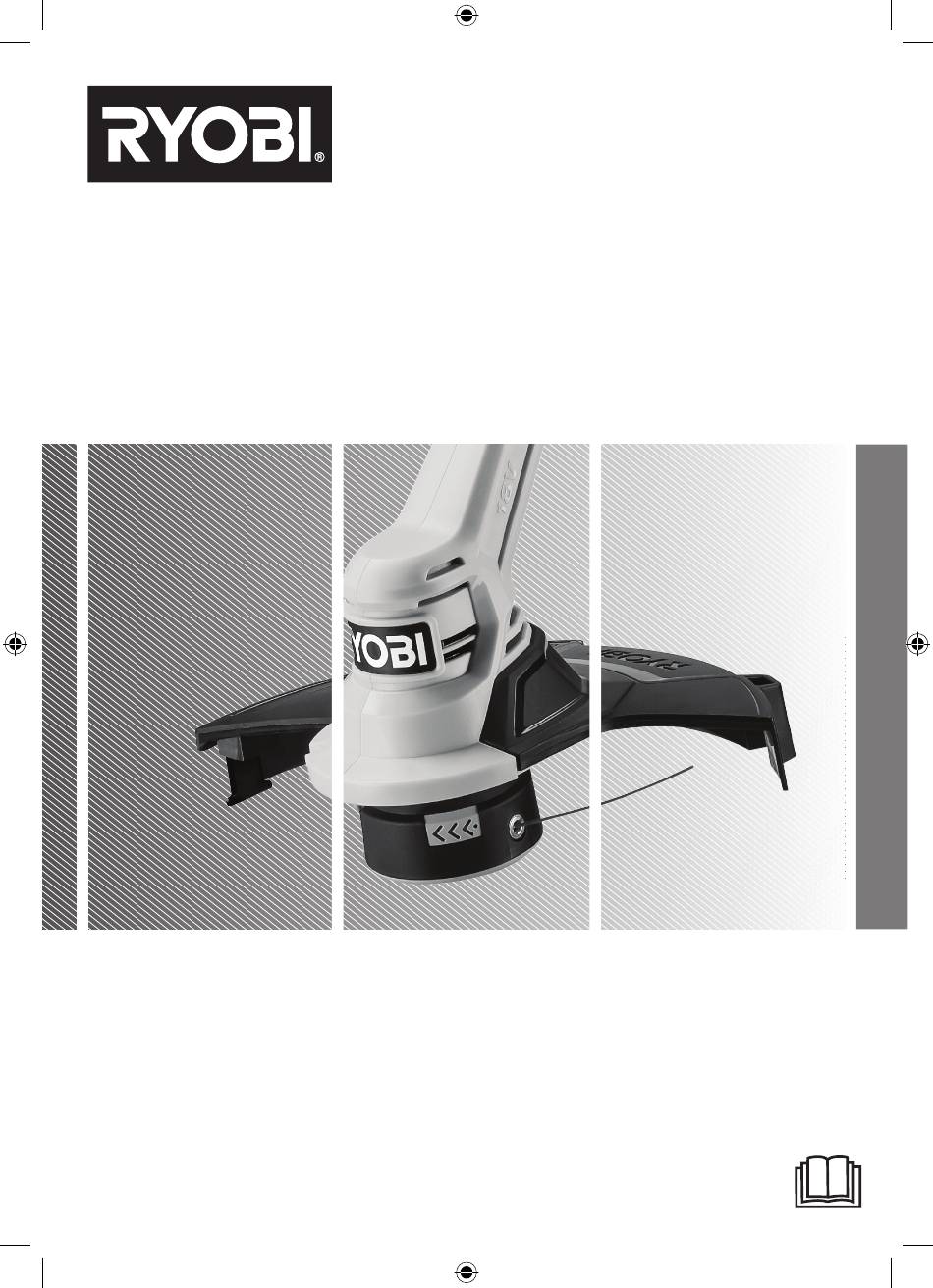

- Page 1 R18LTR10 R18LTR52...
- Page 2 PREPARATION IMPORTANT! ■ Wear full eye and hearing protection while operating the It is essential that you read the instructions in this manual product. If working in an area where there is a risk of before assembling, operating, and maintaining the product. falling objects, head protection must be worn.
-
Page 3: Transportation And Storage
■ Beware, the cutting elements continue to rotate after the TRANSPORTATION AND STORAGE motor is turned off. ■ Turn off the product, remove the battery pack, and allow ■ Beware of objects thrown by the cutting means. Remove both to cool down before storing or transporting. debris like small stones, gravel, and other foreign objects ■... -
Page 4: Symbols On The Product
SYMBOLS ON THE PRODUCT Read and understand all the instructions before operating the product. Follow all the warnings and safety instructions. Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area. - Page 5 R18LTR10 Rear handle Lock-out trigger On/off trigger Edging button Front handle Upper drive shaft Lower drive shaft Spool cover Spool Eyelet Slider Operator's manual Screws Cutting line R18LTR52 Safety guard Cut-off blade Battery pack Charger Know your product...
- Page 6 Always wear safety goggles or safety Install the safety guard to the trimmer head. Secure the safety guard in place glasses with side shields when using two screws. operating the product. Wear non-slip, heavy-duty protective gloves. Wear non-skid, protective footwear that will protect your feet and improve your footing on slippery surfaces.
- Page 7 Operating the Operating the p.10 edger trimmer Replacing the Cleaning the Storing the p.11 p.12 p.13 spool product product...
-
Page 8: Operating The Trimmer
OPERATING THE TRIMMER WARNING: Always use two hands to operate the product. Hold the product with the right hand on the rear handle and the left hand on the front handle. WARNING: Beware of objects thrown by the cutting means. Remove debris like small stones, gravel, and other foreign objects from the work area before starting operation. - Page 9 NOTE: Holding and releasing both the lock- out trigger and the on/off trigger automatically releases a quarter inch of line. NOTE: The cut-off blade fitted to the cutting attachment guard is designed to trim the new extended line. NOTE: The cut-off blade on the grass deflector cuts the line to the correct length for safe and optimum performance.
-
Page 10: Operating The Edger
180° OPERATING THE EDGER 1. Remove the battery pack. 2. Push the edging button. Rotate the upper drive shaft counterclockwise to turn to the edger position. 3. Insert the battery pack until the battery latch button clicks into place. Hold the lock-out trigger, and squeeze the on/off trigger to turn on the product. -
Page 11: Replacing The Spool
REPLACING THE SPOOL 1. Remove the battery pack. 2. Push the slider on the side of the spool retainer, and remove the spool cover. 3. Remove the spool. 4. Thread the line of the new spool through the eyelet. Install the new spool with the line and slot aligned with the eyelet in the string head. -
Page 12: Cleaning The Product
CLEANING THE PRODUCT 1. Remove the battery pack. 2. Remove all foreign materials from the product with a soft, dry brush. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 13: Storing The Product
STORING THE PRODUCT WARNING: Make sure that the product is clean before storing. 1. Remove the battery pack. 2. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children and away from sources of ignition. Do not store the product outdoors. -
Page 14: Product Specifications
Model R18LTR10/R18LTR52 Flailing blade head RLTH1 Voltage 18 V d.c. NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts. No-load speed 9500 +/- 10% rpm Cutting capacity 25 cm WARNING! The declared vibration total values and the Cutting line diameter 1.6 mm... - Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961478301-02...
Need help?
Do you have a question about the R18LTR10 and is the answer not in the manual?
Questions and answers
How do I remove the slider to clear grass from under it. It has stopped the machine from working.
To remove the slider on the Ryobi R18LTR10 to clear grass, follow these steps:
1. Remove the battery pack to ensure safety.
2. Pull the line extending from the string head.
3. Then you can access and clear any grass or debris.
Always keep hands away from the cut-off blade during this process.
This answer is automatically generated
