OPERATOR'S MANUAL
MANUEL D'UTILISATION
MANUAL DEL OPERADOR

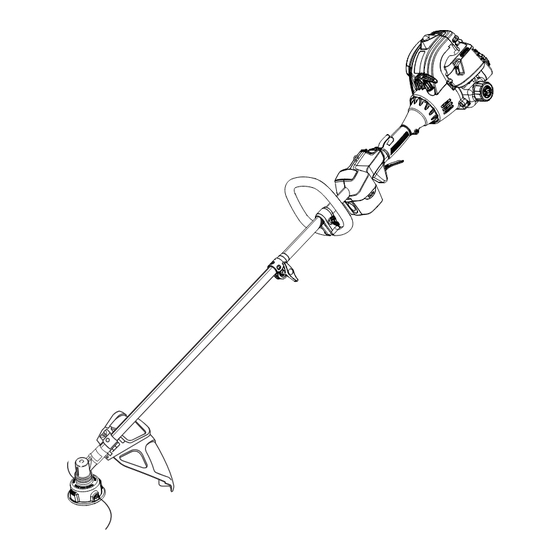

30
STRINg TRIMMER
cc
ELEcTRIc START
TAILLE-BORDURES DE 30 cc
DÉMARRAgE ÉLEcTRIQUE
REcORTADORAS DE HILO 30 cc
ARRANQUE ELÉcTRIcO
RY29550
Your trimmer has been engineered and manufactured to our high standard for dependability, ease of operation, and opera-
tor safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNINg:
To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENcE
Le taille-bordures à ligne a été conçue et fabriquée conformément
à nos strictes normes de fiabilité, simplicité d'emploi et sécurité
d'utilisation. Correctement entretenue, elle vous donnera des
années de fonctionnement robuste et sans problème.
AVERTISSEMENT :
blessures, l'utilisateur doit lire et veiller à bien comprendre le
manuel d'utilisation avant d'employer ce produit.
Merci de votre achat.
cONSERVER cE MANUEL POUR
FUTURE RÉFÉRENcE
Pour réduire les risques de
Su recortadoras de hilo ha sido diseñada y fabricada de conformidad
con las estrictas normas para brindar fiabilidad, facilidad de uso
y seguridad para el operador. Con el debido cuidado, le brindará
muchos años de sólido y eficiente funcionamiento.
ADVERTENcIA:
el usuario debe leer y comprender el manual del operador antes
de usar este producto.
Le agradecemos su compra.
gUARDE ESTE MANUAL PARA
FUTURAS cONSULTAS
Para reducir el riesgo de lesiones,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RY29550 and is the answer not in the manual?

Questions and answers

Related Manuals for Ryobi RY29550

Summary of Contents for Ryobi RY29550

  • Page 1 REcORTADORAS DE HILO 30 cc ARRANQUE ELÉcTRIcO RY29550 Your trimmer has been engineered and manufactured to our high standard for dependability, ease of operation, and opera- tor safety. When properly cared for, it will give you years of rugged, trouble-free performance.

  • Page 2: Table Of Contents

    TABLE OF cONTENTS TABLE DES MATIÈRES / ÍNDIcE DE cONTENIDO  Introduction .................................. Introduction / Introducción  General Safety Rules ..............................3-4 Règles de sécurité générales / Reglas de seguridad generales  Specific Safety Rules ................................ 4 Règles de sécurité particulières / Reglas de seguridad específicas  Symbols ..................................5-6 Symboles / Símbolos ...

  • Page 3: General Safety Rules

    gENERAL SAFETY RULES is the added risk of injury to bystanders from being struck WARNINg: with the moving blade in the event of a blade thrust or other unexpected reaction of the saw. Read and understand all instructions. Failure to follow all ...

  • Page 4: Specific Safety Rules

    gENERAL SAFETY RULES  Stop the engine and allow to cool before refueling or  Wear your protective equipment and observe all safety storing the unit. instructions. For units equipped with a clutch, be sure the cutting attachment stops turning when the engine ...

  • Page 5: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter- pretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIgNATION/EXPLANATION Volts Voltage Amperes Current Hertz...

  • Page 6: Symbols

    If you servicing, use only identical replacement parts. do not understand the warnings and instructions in the operator’s manual, do not use this product. Call Ryobi customer service for assistance. WARNINg: The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage.

  • Page 7: Features

    FEATURES PRODUcT SPEcIFIcATIONS Engine Displacement...........30 cc Battery Voltage ............1 Volt Cutting Path Diameter ..........18 in. Weight ..............15. lbs. String Diameter ............0.095 in. REAR HAnDLE SHOuLDER TRIGGER pRIMER STRAp LOck buLb IGnITIOn fuEL cAp SwITcH STRAp HAnGER REcOIL STARTER THROTTLE cOupLER TRIGGER 12 VOLT...

  • Page 8: Assembly

    ASSEMBLY INSTALLINg THE POWER HEAD SHAFT TO UNPAcKINg THE ATTAcHMENT This product requires assembly. See Figure 2.  Carefully remove the tool and any accessories from the box. Make sure that all items listed in the packing list are included. WARNINg: ...
  • Page 9 ASSEMBLY REMOVINg THE ATTAcHMENT FROM THE POWER HEAD For removing or changing the attachment: HAnGER  Loosen the knob.  Push in the button and twist the shafts to remove and separate ends. HOLE ATTAcHINg THE HANgER cAP See Figure 3. There are two ways to hang your attachment for storage.

  • Page 10: Operation

    ASSEMBLY ATTAcHINg THE SHOULDER STRAP See Figure 6. Follow these steps to attach the shoulder strap. LATcH HAnGER bRAckET Connect the latch on the strap to the hanger bracket.  Adjust the strap to a comfortable position.  STRAp Fig. 6 OPERATION FUELINg AND REFUELINg THE TRIMMER WARNINg:...

  • Page 11: Oxygenated Fuels

    Methanol (methyl or wood alcohol) 5% by volume. You charging, return battery pack and charging assembly to may use gasoline containing up to 5% methanol by volume your nearest Ryobi Authorized Service Center for electrical as long as it also contains cosolvents and corrosion inhibitors check.

  • Page 12: Operating The Trimmer

    THE BATTERY PAcK for normal recharging of batteries. If the charging assembly does not charge the battery pack under normal circumstances, return both the battery pack and charging assembly to your nearest Ryobi Authorized Service Center for electrical check. TO INSTALL BATTERY PAcK RED LED See Figure 8.

  • Page 13: To Advance The Cutting Line

    OPERATION pROpER WARNINg: OpERATInG pOSITIOn Always hold the string trimmer away from the body keeping clearance between the body and the product. Any contact with the housing or string trimmer cutting head can result in burns and/or other serious personal injury. TO ADVANcE THE cUTTINg LINE String advance is controlled by tapping the string head on grass while running engine at full throttle.

  • Page 14: Operation

    OPERATION STARTINg AND STOPPINg See Figures 12 - 14. When starting the string trimmer for the first time or when IGnITIOn the battery voltage is low, it may be necessary to manually SwITcH TRIGGER start the string trimmer. LOck FOR MANUAL START: To start a cold engine: DO NOT squeeze the throttle trigger until the engine starts and runs.

  • Page 15: Maintenance

    MAINTENANcE WARNINg: cOVER When servicing, use only identical replacement parts. LATcHES Use of any other parts may create a hazard or cause STRAIGHT product damage. SHAfT knOb HEx bOLT WARNINg: SpOOL Always wear safety goggles or safety glasses with side shields during tool operation.
  • Page 16 MAINTENANcE INSTALLINg STRINg IN REEL EASY STRINg ALIGn HEAD LInE On See Figures 17 - 18. knOb wITH Use .095 in. diameter monofilament string. ARROwS  Stop the engine and disconnect the spark plug wire.  Cut one piece of string approximately 5 ft. in length.  Rotate knob on string head until line on knob aligns with arrows on top of string head.
  • Page 17 MAINTENANcE INSTALLINg PRO cUT II STRINg HEAD See Figure 19. DRIVE SHAfT  Stop the engine and disconnect the spark plug wire.  Remove currently installed string head.  Install the string head on the drive shaft until fully seated. STRInG HEAD  Install the spool retainer and turn counterclockwise.
  • Page 18 MAINTENANcE cLEANINg THE EXHAUST PORT, MUFFLER AND SPARK ARRESTOR NOTE: Depending on the type of fuel used, the type and amount of lubricant used, and/or your operating conditions, the exhaust port, muffler, and/or spark arrestor screen may become blocked with carbon deposits. If you notice a power loss with your gas powered tool, you may need to remove these deposits to restore performance.

  • Page 19: Storing The Product

    MAINTENANcE SPARK PLUg REPLAcEMENT FUEL cAP This engine uses a Champion RCJ-6Y or NGK BPMR7A spark plug with .05 in. electrode gap. Use an exact re- WARNINg: placement and replace annually. A leaking fuel cap is a fire hazard and must be replaced STORINg THE PRODUcT immediately.

  • Page 20: Troubleshooting

    TROUBLESHOOTINg IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM cONTAcT YOUR AUTHORIZED SERVIcE DEALER. PROBLEM POSSIBLE cAUSE SOLUTION 1. No spark. 1. Clean or replace spark plug. Reset spark plug Engine will not start gap. Refer to Spark Plug Replacement earlier in this manual.

  • Page 21: Warranty

    ALL EMISSIONS-RELATED PARTS ARE WARRANTED FOR TWO YEARS OR FOR THE PERIOD OF TIME PRIOR TO THE PARTS FIRST SCHEDULED REPLACEMENT WHICHEVER COMES FIRST. cALL uS fIRST For any questions about operating or maintaining your product, call the Ryobi Help Line! ® Your product has been fully tested prior to shipment to ensure your complete satisfaction.

  • Page 22: Limited Warranty Statement

    Straps, Guide Bars, Saw Chains purchase. Techtronic Industries North America, Inc., reserves the  Two years if the product is used for personal, family or right to change or improve the design of any RYOBI brand ® household use;...

  • Page 23: Your Warranty Rights And Obligations

    RYOBI brand California Air Resources Board.
  • Page 24 ® Puede encontrar los Centros de Servicio Autorizados visitando nuestro sitio en la red de Ryobi Limited y es empleada mediante mundial, en la dirección www.ryobitools.com or by calling 1-800-860-4050. autorización. • cóMO OBTENER SERVIcIO O ASISTENcIA TÉcNIcA AL cONSUMIDOR: Para obtener Servicio o Asistencia Técnica al Consumidor, sírvase comunicarse con...
