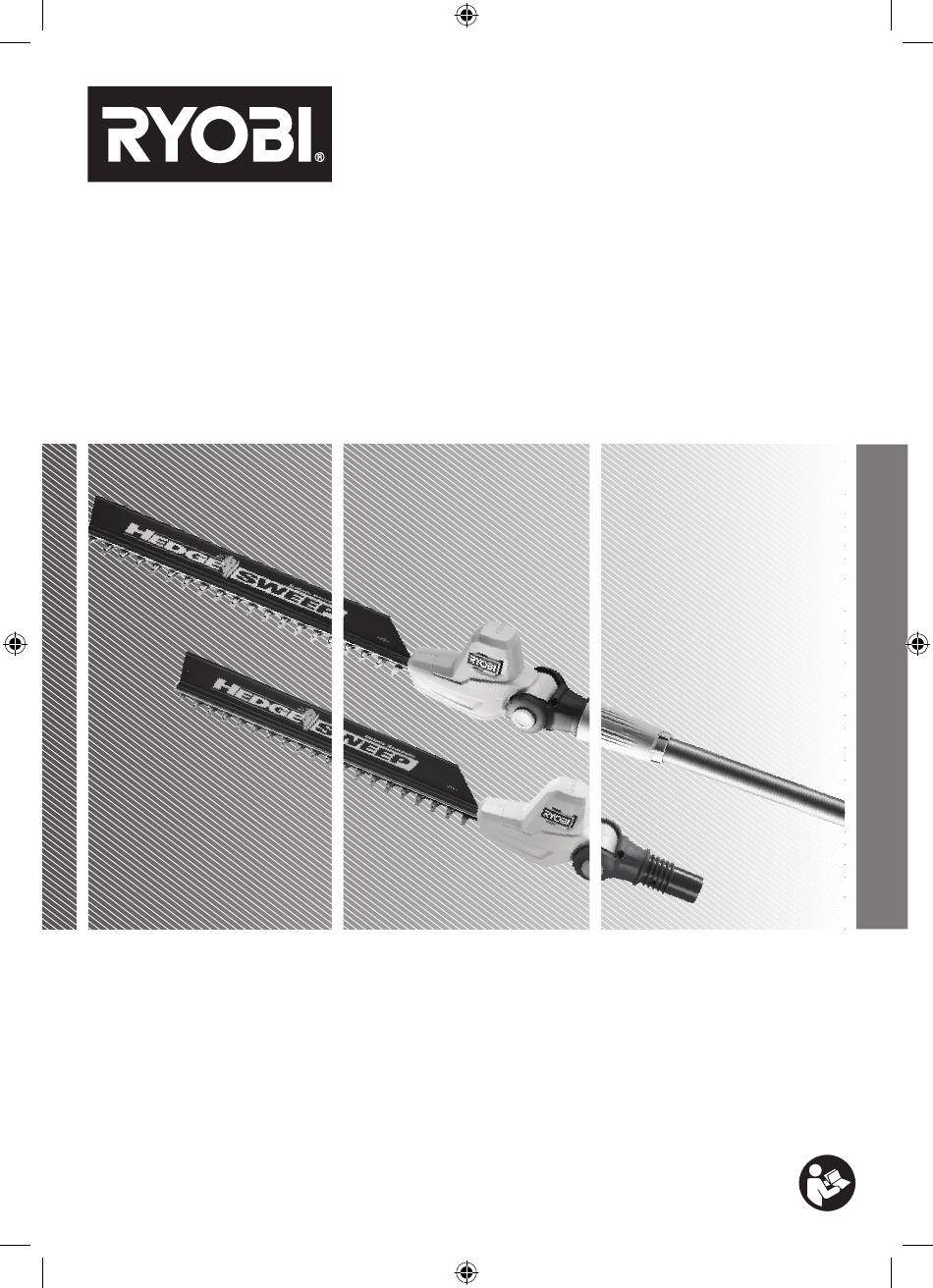

  • Page 1 R18PHT120 R18PHTA20...

  • Page 2: Intended Use

    ■ Do not expose power tools to rain or wet conditions. IMPORTANT! Water entering a power tool will increase the risk of It is essential that you read the instructions in this manual electric shock. before assembling, operating, and maintaining the ■...

  • Page 3: Additional Safety Warnings

    ■ Disconnect the plug from the power source and/ SERVICE or remove the battery pack, if detachable, from ■ Have your power tool serviced by a qualified repair the power tool before making any adjustments, person using only identical replacement parts. This changing accessories, or storing power tools.

  • Page 4: Transportation And Storage

    ■ Inspect the product before each use. Check for loose inside them. Corrosive or conductive fluids, such as fasteners, etc. Make sure that all guards and handles are seawater, certain industrial chemicals, and bleach or properly and securely attached. Replace any damaged bleach-containing products, etc., can cause a short parts before use.

  • Page 5: Symbols In This Manual

    the risk of personal injury from contact with the blades. SYMBOLS IN THIS MANUAL For information about a suitable spray product, check with an authorised service centre. ■ Check all nuts, bolts, and screws at frequent intervals Parts or accessories sold separately for proper tightness to ensure that the product is in safe working condition.
  • Page 6 R18PHT120 Harness Shaft coupling Telescopic release latch Blade Gearbox housing Gearbox cover Top motor housing Angle button release Operator's manual Harness hanger Lock-out trigger Rear handle On/off trigger Blade cover HEDGESWEEP debris sweeper Telescopic pole Battery pack Charger Spray lubricant...
  • Page 7 Always wear eye, ear, and head Attach the pole hedge trimmer attachment to the pole. Turn the shaft coupling protection while operating the product. clockwise to tighten. Wear non-slip, heavy-duty protective gloves. Wear non-slip safety footwear when using the product. Slide the HEDGESWEEP debris sweeper over the blade.
  • Page 8 Operating the product R18PHTA20 R18PHT120 R18PHT120 R18PHTA20 Cleaning the Removing the Installing the blade Storing the product p.17 p.12 p.15 p.13 product blade...

  • Page 9: Operating The Product

    ≤60˚ ≥15m (50ʹ) OPERATING THE PRODUCT DANGER! Risk of electrocution! Do not operate within 10 m of overhead electrical lines. Position the product at an angle of 60° or less, depending on the specific situation. Keep bystanders at least 15 m away. CAUTION: Always use two hands to operate the product.
  • Page 10 3. Lay the product on the ground. WARNING: Keep bare hands away from the blades at all times. 4. Press the angle button release and adjust the pole to the required working angle. WARNING: Do not touch the blade to adjust the working angle.
  • Page 11 5. Remove the blade cover. 6. Install the battery pack. Make sure that -30° the latches on the battery pack click into place. 7. Unlock the telescopic release latch. Adjust the pole length according to the required working height. Lock the telescopic release latch.

  • Page 12: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the latches on the battery pack and remove the battery pack from the product. 2. Remove HEDGESWEEP debris sweeper. Clean the HEDGESWEEP debris sweeper and body and handles of the product with a soft, dry cloth. Clean the blades with a stiff brush.

  • Page 13: Removing The Blade

    REMOVING THE BLADE 1. Press the latches on the battery pack and remove it from the product. 2. Turn the pole hedge trimmer attachment upside down. 3. Turn gearbox cover screws counterclockwise to loosen them. 4. Remove the gearbox cover screws and gearbox cover.
  • Page 14 6. Remove the blade shaft screws and R18PHTA20 blade shaft washers from the blade. R18PHT120 7. Remove the blade from the pole hedge trimmer attachment. Maintenance...

  • Page 15: Installing The Blade

    INSTALLING THE BLADE 1. Install the blade to the pole hedge trimmer attachment. 2. Install the blade shaft washers and blade shaft screws to the blade. 3. Turn the blade shaft screws clockwise to tighten them using a socket wrench. NOTE: Do not overtighten the screws.
  • Page 16 6. Turn the pole hedge trimmer attachment right-side up. Maintenance...

  • Page 17: Storing The Product

    STORING THE PRODUCT WARNING: Make sure that the product is clean before storing. 1. Press the latches on the battery pack, and remove the battery pack from the product. 2. Install the blade cover. 3. Turn the shaft coupling counterclockwise, and remove the pole hedge trimmer attachment from the pole 4.

  • Page 18: Product Specifications

    RB1820C, RB1825C, RB1840C, RB1840X, Rear handle 1.0 m/s² RB1850C, RB1850X, RB1860X NOTE: Visit your local special orders desk or contact RYOBI Uncertainty of measurement 1.5 m/s² customer service for replacement parts. Noise emission level (in accordance with EN 62841-1 and EN...
  • Page 20 Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. HEDGESWEEP is a trade mark of Techtronic Outdoor Products Technology Limited. 961476030-02...
