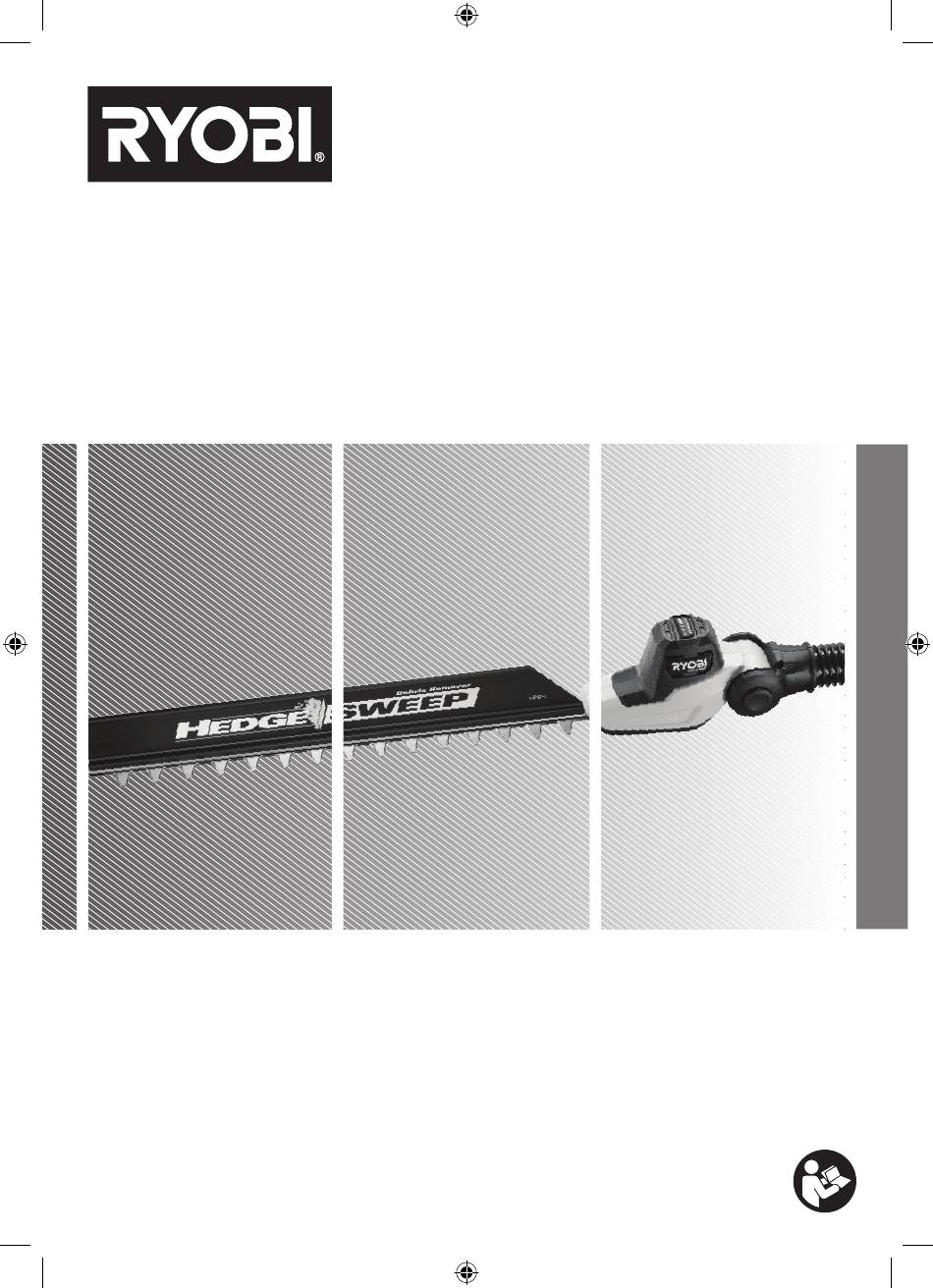

  • Page 1 FRONT PAGE R18XPHTA0...

  • Page 2: Intended Use

    ■ Do not expose power tools to rain or wet conditions. IMPORTANT! Water entering a power tool will increase the risk of It is essential that you read the instructions in this manual electric shock. before assembling, operating, and maintaining the ■...

  • Page 3: Additional Safety Warnings

    ■ Disconnect the plug from the power source and/ SERVICE or remove the battery pack, if detachable, from ■ Have your power tool serviced by a qualified repair the power tool before making any adjustments, person using only identical replacement parts. This changing accessories, or storing power tools.

  • Page 4: Transportation And Storage

    ■ Use the product only at ground level and not on any ADDITIONAL BATTERY SAFETY WARNINGS other unstable support. ■ To reduce the risk of fire, personal injury, and product ■ Inspect the product before each use. Check for loose damage due to a short circuit, never immerse the tool, fasteners, etc.

  • Page 5: Symbols In This Manual

    ■ After each use, clean the debris from the blades SYMBOLS IN THIS MANUAL with a stiff brush, and then carefully apply a rust preventative lubricant before refitting the blade cover. The manufacturer recommends using rust preventative Parts or accessories sold separately lubricant spray to apply an even distribution and reduce the risk of personal injury from contact with the blades.
  • Page 6 R18XPHTA0 Blade Angle button release Operator's manual Gearbox cover HEDGESWEEP debris sweeper Blade cover Harness Telescopic pole Fiber glass pole Plant-friendly lubricant Battery pack Charger Know your product...
  • Page 7 Always wear eye, ear, and head Attach the HP pole hedge attachment to the telescopic pole or fiber glass pole. protection while operating the product. Turn the shaft lock on the telescopic pole clockwise to secure the connection Wear non-slip, heavy-duty protective between the HP pole hedge attachment and the telescopic pole.
  • Page 8 Slide the lock-out trigger forward Slide the lock-out trigger backward and Begin trimming the hedge from left to squeeze the on/off trigger on the fiber right. and squeeze the on/off trigger on the glass pole to turn on the product. telescopic pole to turn on the product.
  • Page 9 Operating the Cleaning the p.10 p.14 p.18 Storing the product product product Removing the Installing the blade p.17 p.15 blade...

  • Page 10: Operating The Product

    ≤60˚ ≥15m (50′) OPERATING THE PRODUCT DANGER: Risk of electrocution! Do not operate within 10 m of overhead electrical lines. Position the product at an angle of 60° or less, depending on the specific situation. Keep bystanders at least 15 m away. CAUTION: Always use two hands to operate the product.
  • Page 11 b. Press the latches on the battery pack, and remove the battery pack from the fiber glass pole. 2. Install the blade cover. 3. Lay the product on the ground. WARNING: Keep bare hands away from the blades at all times. 4.
  • Page 12 WARNING: Do not touch the blade to adjust the working angle. NOTE: The working angle of the pole hedge trimmer can be adjusted to -60°, -30°, 0°, 30°, 60°, and 90°. 5. Remove the blade cover. 6. Install the battery pack to the telescopic pole or fiber glass pole.
  • Page 13 b. Attach the HP pole hedge attachment to the fiber glass pole. Turn the shaft lock on the fiber glass pole clockwise to secure the connection. c. Attach the HP pole hedge attachment to the extension pole. Turn the shaft lock on the extension pole clockwise to secure the connection.

  • Page 14: Cleaning The Product

    CLEANING THE PRODUCT 1. a. Press the latches on the battery pack and remove it from the telescopic pole. b. Press the latches on the battery pack and remove it from the fiber glass pole. 2. Remove HEDGESWEEP debris sweeper. Clean the body and handles of the product with a soft, dry cloth and a stiff brush.

  • Page 15: Removing The Blade

    REMOVING THE BLADE 1. a. Press the latches on the battery pack and remove it from the telescopic pole. b. Press the latches on the battery pack and remove it from the fiber glass pole. 2. Turn the HP pole hedge attachment upside down.
  • Page 16 5. Using a socket wrench, turn the blade shaft screws counterclockwise until they are loose. 6. Remove the blade shaft screws and blade shaft washers from the blade. 7. Remove the blade from the HP pole hedge attachment. Maintenance...

  • Page 17: Installing The Blade

    INSTALLING THE BLADE 1. Install the blade to the HP pole hedge attachment. 2. Install the blade shaft washers and blade shaft screws to the blade. 3. Using a socket wrench, turn the blade shaft screws clockwise to tighten them. NOTE: Do not overtighten the screws.

  • Page 18: Storing The Product

    6. Turn the HP pole hedge attachment right- side up. STORING THE PRODUCT 1. Make sure that the product is clean before storing. 2. Install the blade cover. 3. Turn the shaft lock on the telescopic pole counterclockwise to loosen the connection between the HP pole hedge attachment and the telescopic pole.
  • Page 19 4. Remove the telescopic pole from the HP pole hedge attachment. 5. Store the product in a cool, dry, and well- ventilated area that is inaccessible to children and well away from sources of ignition. Storage...

  • Page 20: Product Specifications

    Noise emission level (in accordance with EN 62841-1 and EN 62841-4-2) A-weighted sound pressure 85.2 dB(A) level Uncertainty of measurement 3 dB A-weighted sound power level 93.2 dB(A) Uncertainty of measurement 3 dB NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.
