Summary of Contents for Fieldmann FZF 4050 E

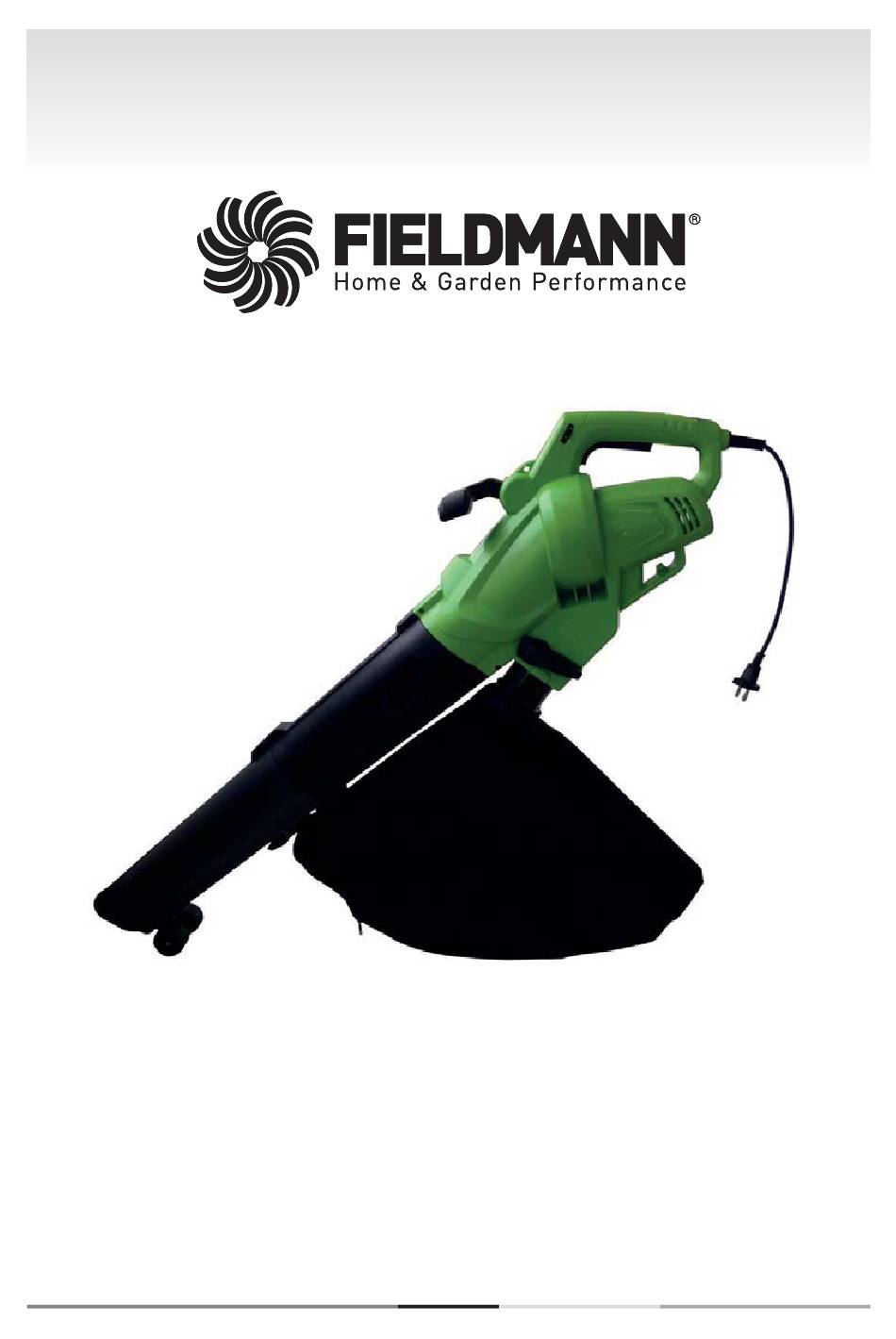

- Page 1 FZF 4050 E...
-
Page 2: Table Of Contents
Table of Contents Electric Garden Vacuum Blower USER'S MANUAL Thank you for purchasing this garden vacuum blower. Before you start using it, please carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................4 Important safety notice ............................ -
Page 3: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZF 4050 E... -
Page 4: Meanings Of Warning Symbols
Meanings of warning symbols This power tool is intended exclusively for blowing and vacuuming fallen leaves in private gardens. Any other use that is not explicitly approved in these instructions, may cause damage to the power tool and presents a serious hazard to the user. 2. -
Page 5: Safety Instructions
When working with the power tool outdoors, only use extension cords specifi cally designed for outdoor use. Using extension cords designed for outdoor use limits the risk of electric shock. FZF 4050 E... -
Page 6: Personal Safety
Safety Instructions Personal safety Always pay full attention and concentrate on your work and proceed prudently when working with power tools. Do not use the power tool if you are tired or under the infl uence of drugs, alcohol or medication. When working with power tools, a single brief moment of inattentiveness may lead to very serious injuries. -
Page 7: Additional Safety Directives For Garden Vacuum Blowers
Only use spare parts and accessories recommended by the manufacturer. Never attempt to repair the power tool yourself or to reach the parts inside the power tool. If necessary, always take the power tool to an authorised professional workshop. FZF 4050 E... -
Page 8: Recommendations
Safety Instructions This power tool is not designed to be used by persons (including children) with physical or mental impairments or by persons lacking knowledge and experience, with the exception of the case, where they are under supervision and when they are provided with instructions for the use of the power tool by an adult responsible for their safety. - Page 9 9. Front adjustable handle 3. Start/stop trigger 10. Power cord retainer 4. Vacuum / blower mode selection lever 11. Cleaning hole screw 5. Collection sack 12. Handle angle setting lock 6. Support wheel 13. Rake control 7. Rake FZF 4050 E...
-
Page 10: Assembling The Vacuum Blower
Assembling the vacuum blower 4. ASSEMBLING THE VACUUM BLOWER Warning! This vacuum blower must not be used or turned on until it is fully assembled. DISCONNECT THE POWER CORD from the power grid before starting the assembly of the vacuum blower. Assembly Just attach the shoulder webbing and the collection sack to the vacuum blower. -
Page 11: Settings And Other Vacuum Blower Features
This vacuum blower’s tube is telescopic, enabling its length to be set within a range of 300mm. To make the adjustment, press the A lock (fi g. 5) and move the tube’s B bottom part simultaneously (fi g. 5). Using the rake (fi g. 6) FZF 4050 E... -
Page 12: Starting The Vacuum Blower
Starting the vacuum blower This vacuum blower is equipped with a rake to increase the blowing effi ciency. To eject the rake, turn the lock screw by 90° (fi g. 6, point A) Once ejected, the rake must be secured by turning the screw by 90° again (fi g. 6, point B) 6. -
Page 13: Using The Vacuum Blower
Plant material such as leaves has a large water content. Therefore, it may stick to the inner walls of the suction tube. If you wish to limit this problem, allow the plant material to dry out for a few days before vacuuming it. FZF 4050 E... -
Page 14: To Release The Choked Crusher
Using the vacuum blower To release the choked crusher Warning! DISCONNECT THE POWER CORD from the power grid before starting the cleaning of the vacuum blower. This model is equipped with an easy access to release jammed material. To clean, loose the cleaning hole screw (fi g. 8, point A) and open the cover. After cleaning, tighten the screw fi... -
Page 15: Maintenance, Storage And Repairs
Replace worn out or damaged parts with original spare parts or accessories. All damaged and worn out parts must be replaced to ensure the good operating condition of the vacuum blower. Have repairs performed at an authorised service centre that will use only original spare parts. FZF 4050 E... -
Page 16: Description Of The Power Tool
Description of the power tool 9. DESCRIPTION OF THE POWER TOOL Technical specifi cations Input voltage 230 - 240 V Type of power supply and frequency 50 Hz Power input 3,000 W Protection class: Class II Protection against the entry of solid substances and liquids IP 20 Capacity of the collection sack: 45 l... -
Page 17: Protection Of The Environment
This product meets all the basic requirements of EU directives that apply to it. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. FZF 4050 E... -
Page 18: Declaration Of Conformity
FAST ČR, a.s. Černokostelecká 2111, 100 00 Praha 10, Czech Republic VAT no: CZ26726548 Product / brand: LEAF BLOWER - VACUUM / FIELDMANN Type / model: FZF 4050-E as factory model GY8900 230 – 240V AC, 50Hz, 3000W The product is inline with directives and regulations listed below:... - Page 19 Notes FZF 4050 E...
