Enabling ACT™
Tidal I Use, Care, and Installation Guide

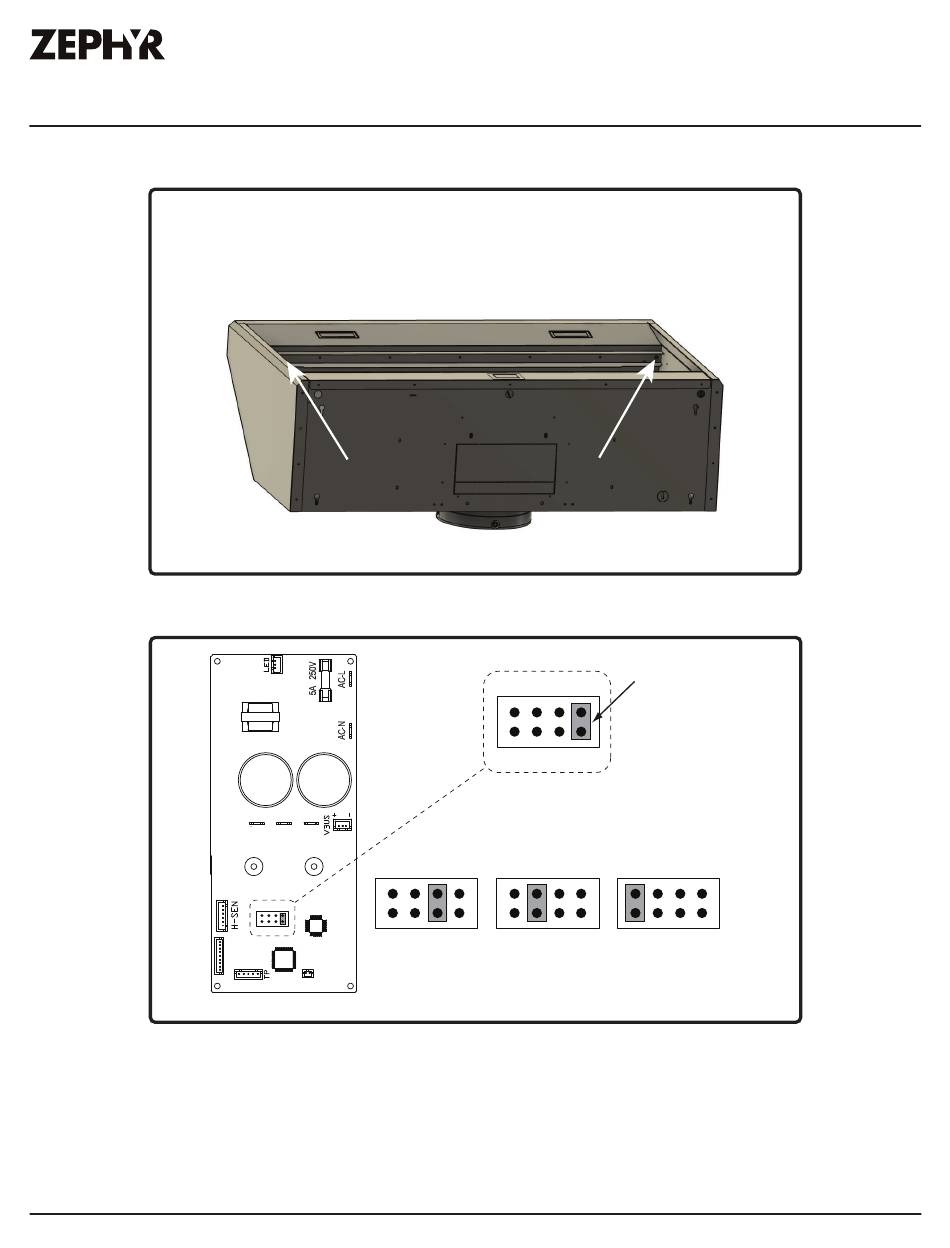

1. PC board located behind the light panel.
2. (If applicable) Remove both spacer panels by
2 screws for each spacer panel.
3. Remove 4 screws attaching light panel.
2 4 6 8
2 4 6 8
1 3 5 7
1 3 5 7
J u m p e r 5 - 6
Max. Blower CFM
590
PC Board
ACT™ Conversion
FIG. J
Jumper Pins
2 4 6 8
1 3 5 7
J u m p e r 7 - 8
DEFAULT POSITION
2 4 6 8
1 3 5 7
J u m p e r 3 - 4 J u m p e r 1 - 2
Max. Blower CFM Max. Blower CFM
390
FIG. K
Plastic
Jumper
2 4 6 8
1 3 5 7
290
