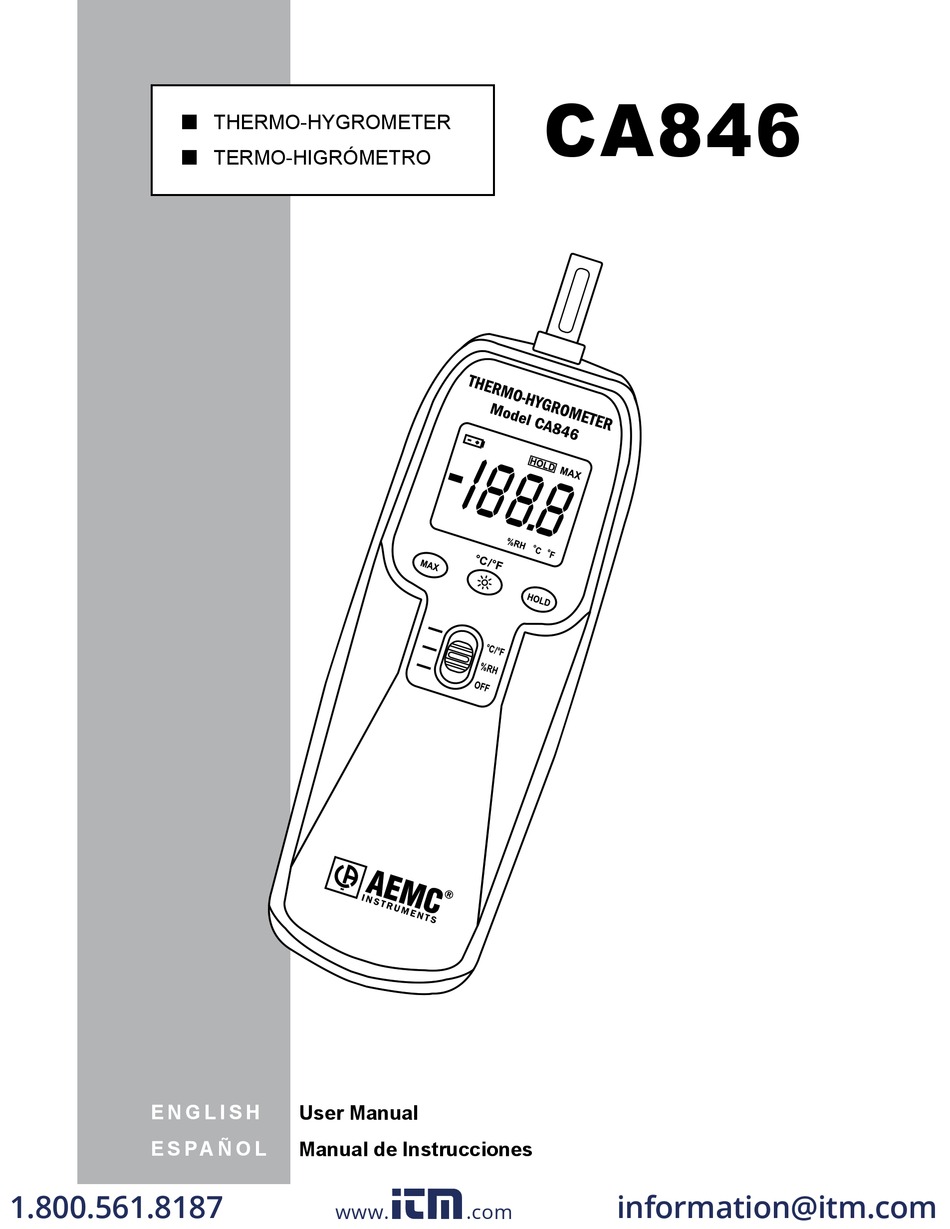

- Page 1 CA846 THERMO-HYGROMETER TERMO-HIGRÓMETRO E N G L I S H User Manual E S PA Ñ O L Manual de Instrucciones 1.800.561.8187 information@itm.com www. .com...
- Page 2 For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2121.24 Model #: CA846 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux ®...
-
Page 3: Table Of Contents
3. SPECIFICATIONS................6 3.1 Environmental Specications ............6 3.2 Mechanical Specications ............7 3.3 Safety Specications ..............7 4. OPERATION ..................8 4.1 Recommendations ..............8 4.2 Operating the Model CA846 .............8 5. MAINTENANCE ................9 5.1 Replacing the Battery ...............9 5.2 Cleaning ..................9 Repair and Calibration ................10 Technical and Sales Assistance ............10 Limited Warranty ................... 11 Warranty Repairs ................... -
Page 4: Introduction
Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. This symbol refers to a type A current sensor. This symbol signifies that application around and removal from HAZARDOUS LIVE conductors is permitted. In conformity with WEEE 2002/96/EC Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 5: DeNition Of Measurement Categories
Notify your distributor of any missing items. If the equipment appears to be damaged, le a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. Save the damaged packing container to substantiate your claim. Ordering Information Thermo-Hygrometer Model CA846 ........Cat. #2121.24 Includes meter, shockproof holster, 9V battery and user manual. Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. -
Page 6: Product Features
PRODUCT FEATURES Description The Thermo-Hygrometer Model CA846 is a portable, compact digital meter designed for simplicity and one-hand operation. The meter uses an NTC as the temperature sensor providing excellent response time to changes in temperature, good repeatability and accurate readings. The Model CA846 also utilizes a thin-lm polymer-capacitive type relative humidity sensor as hygrometer sensor, offering excellent recovery from 100% moisture and fast response time and durability. 1. Temperature/humidity sensor with protective sensor cover 2. 3½ digit display 3. MAX button 4. °C/°F selector & backlight 5. HOLD button 6. Power/mode selector Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 7: Push Buttons
• Press the button again to turn the Back-Light OFF. • Press the button for 2 seconds to change the temperature scale to °C or °F. The temperature scale °C or °F is displayed in the lower right hand corner of the display. 2.2.3 MAX Button • Press the MAX button to enter the MAX mode. The “MAX” annunciator appears in the upper right hand corner of the display. • The selected range (%RH or °C/°F) records and updates the maximum absolute values. • Press the MAX button again to exit the MAX-recording mode (“MAX” goes out). • The HOLD button may be used in the MAX mode to “Freeze” (no longer updates) the MAX measurement on the display. 2.2.4 HOLD Button The Hold button “freezes” the reading on the display. Press the “HOLD” button to toggle (activate/release) HOLD. In the HOLD mode, the “HOLD” annunciator is displayed in the upper part of the LCD display and the last reading is displayed until released. Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 8: Specifications
Sensor Response Time for 90% of Range: 60s typical Sensor Stability: ±2% RH, 2 years typical Sensor Hysterisis (10% to 90% to 10% RH): ±1% RH typical Sensor Temperature Dependence: Negligible from 32° to 140°F (0° to 60°C) Operating Temperature: 32° to 122°F (0°C to 50°C) at < 80% RH Storage Temperature: -4° to 140°F (-20° to 60°C), 0 to 80% RH with battery removed Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 9: Mechanical SpeciCations
Power Supply: Standard 9V battery (NEDA 1604, IEC 6F22 006P, or equivalent) Battery Life: 200 hours typical with carbon zinc battery Dimensions: 6.81 x 2.38 x 1.5" (173 x 60.5 x 38mm) Weight: Approx 7 oz (197g) including battery Safety Specifications EN 61010-1 (1995-A2), Protection Class III Overvoltage Category (CAT III, 24V), Pollution Degree 2 Indoor Use *All specications are subject to change without notice Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 10: Operation
Avoid temperature measurement errors induced by too short mea- surement time, sunshine during the measurement, heating, cold outer walls, air draft (e.g. fans), radiating sources including hand and/or body heat, etc. • Avoid humidity measurement errors induced by steam, water splashes, dripping water or condensation on the sensor, etc. • Avoid sensor contamination induced by particles in the air or measure- ments in powder like substances. Contamination may be avoided by measuring through a lter (user supplied). The lter must be cleaned or replaced periodically, depending upon the degree of contamination at the measurement site. Operating the Model CA846 1. Unscrew the protective metal tube covering the sensor. 2. Set the power switch to the desired %RH or °C/°F range. 3. Let the reading(s) stabilize (%RH takes at least 60 seconds to reach 90%). 4. Read the display. 5. After use, screw the protective metal tube back onto the sensor. 6. Turn the instrument OFF when nished. Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 11: Maintenance
Replacing the Battery symbol appears on the LCD display when replacement is needed. Replace with a standard 9V battery (NEDA 1604, IEC 6F22). To replace the battery: • Turn the Thermo-Hygrometer OFF. • Remove the rubber holster. • Remove the screw from the back of the meter and lift off the battery cover. • Replace the battery, then put the rear cover and holster back on. Cleaning • Use a soft cloth lightly dampened with soapy water. • Rinse with a damp cloth and then dry with a dry cloth. • Do not use any abrasives or solvents. • Do not let any liquid enter the case or sensor area. Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 12: Repair And Calibration
If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, fax or e-mail our technical support team: ® Chauvin Arnoux , Inc. Instruments ® d.b.a. AEMC Phone: (800) 945-2362 (Ext. 351) (603) 749-6434 (Ext. 351) Fax: (603) 742-2346 techsupport@aemc.com Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... -
Page 13: Limited Warranty
® Chauvin Arnoux , Inc. d.b.a. AEMC Service Department 15 Faraday Drive • Dover, NH 03820 USA Tel: (800) 945-2362 (Ext. 360) (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 or (603) 749-6309 repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. Thermo-Hygrometer Model CA846 1.800.561.8187 information@itm.com www. .com... - Page 14 3.3 Especicaciones de Seguridad ..........19 4. OPERACIÓN .................. 20 4.1 Recomendaciones ..............20 4.2 Operación ................20 5. MANTENIMIENTO ................. 21 5.1 Reemplazo de la Batería ............21 5.2 Limpieza .................21 Reparación y Calibración ..............22 Asistencia Técnica y de Ventas .............22 Garantía Limitada ..................23 Reparaciones bajo Garantía..............23 Termo-Higrómetro Modelo CA846 1.800.561.8187 information@itm.com www. .com...
