Summary of Contents for Ispring WHOLE HOUSE WCFM550K

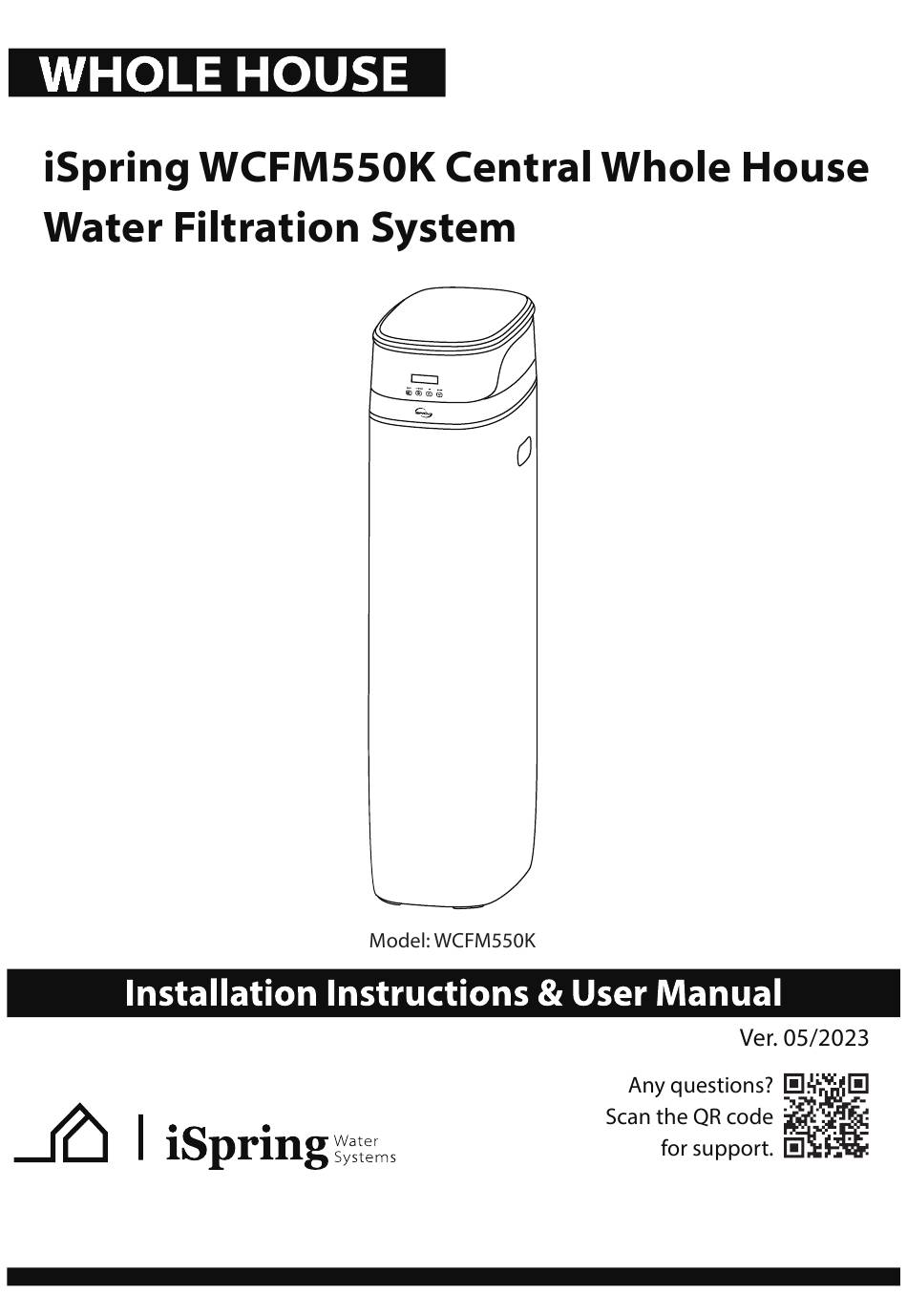

- Page 1 Copyright ©2005-2023 ISPRING WATER SYSTEMS, LLC. All rights reserved.
- Page 3 At iSpring, we strive to develop products to the highest of standards and aim to make excellent drinking water accessible for all households. With affordable pricing, reliable quality, prompt delivery, and top-notch customer service, we hope to assist in bringing you great water for years to come.
-
Page 4: Table Of Contents
Installation Instructions ....................7 Using the System Programming the Central Water Filtration System ........... 10 Operation Tips......................13 Maintenance ......................13 Emergency Response ....................13 Troubleshooting ......................14 Warranty iSpring Standard Limited Warranty (End-Users Only) ..........Warranty Registration Form .................. -
Page 5: User Information
The user must adhere to the installation specifications described in this Product Installation and Operation Manual (hereinafter referred to as the "instruction manual"). iSpring is not responsible for damage, loss, or injury resulting from neglect, improper maintenance, or unauthorized modification of the unit. -
Page 6: Product Specifications
Product Specifications Though testing was performed under standard laboratory conditions, the actual performance of the system may vary based on local water conditions and quality. SPECIFICATIONS Hydrostatic Test Pressure 350 psi (24.15 bar) Inlet Working Pressure 35 - 100 psi Inlet Water Temperature 40 - 100 °... -
Page 7: Packing List
Packing List General Product Information The Central Whole House Water Filtration System is designed for use whenever iron is problematic in the water supply. When water enters the Central Whole House Water Filtration System, it passes through a pocket of compressed air that incorporates oxygen. The water then passes through a filter bed, creating a reaction that separates the iron particles from the water. -
Page 8: Notice
The main functions of this system are listed below. • Fully Automatic Control • Daily Reserve • Smart Cleaning • Metric format and US format are available to meet the different customers' requirements • Multi-Language Function • Continuous water monitoring •... -
Page 9: Installation Instructions
hydrogen sulfide, and other heavy metals. Media containing biofouling cannot be reused because it harms drinking water. • The energy of the media is very aggressive at system startup and calms down by continuously backwashing the system for 1 to 2 hours. It retains enough buffering capacity when it reaches a stable pH of 8 to 10. - Page 10 (3) Installation Steps It is highly recommended that you watch the video DIY installation and Operation Guide | iSpring WCFM550K Whole House Water Filtration System on YouTube. Step 1. Confirm proper installation conditions, unpack the equipment and verify that all accessories are present.
- Page 11 Step 3. A pair of 1" connect screws and a pair of 3/4" connect screws are included in the package. Lubricate the inlet/outlet connect screw o-rings. Connect two one-inch quick-connectors, pull out the clamps, insert the quick-connectors into the water inlet and outlet, and re-insert the clamp. Use only food-grade/included silicone lubricant.
-
Page 12: Programming The Central Water Filtration System
Programming the Central Water Filtration System A. Button Configuration "MENU" This function is used to enter the basic setup information required during installation. • Press and hold the key for 3 seconds to unlock the device while in standby mode. •... - Page 13 a. Settings Press and hold "MENU" for 3 seconds to enter. Use the"UP" and "DOWN" button to modify the value. Press the "MENU" button once to confirm and switch to the following parameter setting, the entire menu shown below. Press "CONFIRM" to immediately return to the standby state.
- Page 14 c. Factory Options Press and hold "MENU" and "CONFIRM" at the same time for 3 seconds to enter. Press ''CONFIRM'' to confirm and switch to the following parameter setting, the entire menu shown below. Use the"UP" and "DOWN" button to modify the value. Press the "MENU" button to immediately return to the standby state.
-
Page 15: Operation Tips
Media needs to be refilled only when the system reaches capacity or accidentally gets contaminated. The media replacement process needs to be conducted with a professional or under professional guidance. For related questions, contact the iSpring Customer service team. •... -
Page 16: Troubleshooting
Troubleshooting ISSUE POSSIBLE CAUSE POSSIBLE SOLUTION Unit fails to No power supply Check electrical service, fuse, etc. initiate a Reset time. Power failure regeneration cycle Iron buildup in line to the unit Clean pipes. Clean the control valve. Increase frequency of Iron buildup in the unit Low water regeneration. - Page 18 __________________ __________________ __________________ __________________ ______________________________________________ ____________ ______________ _________________ ___________________________________________ ______ _________________ ___________________________________...
