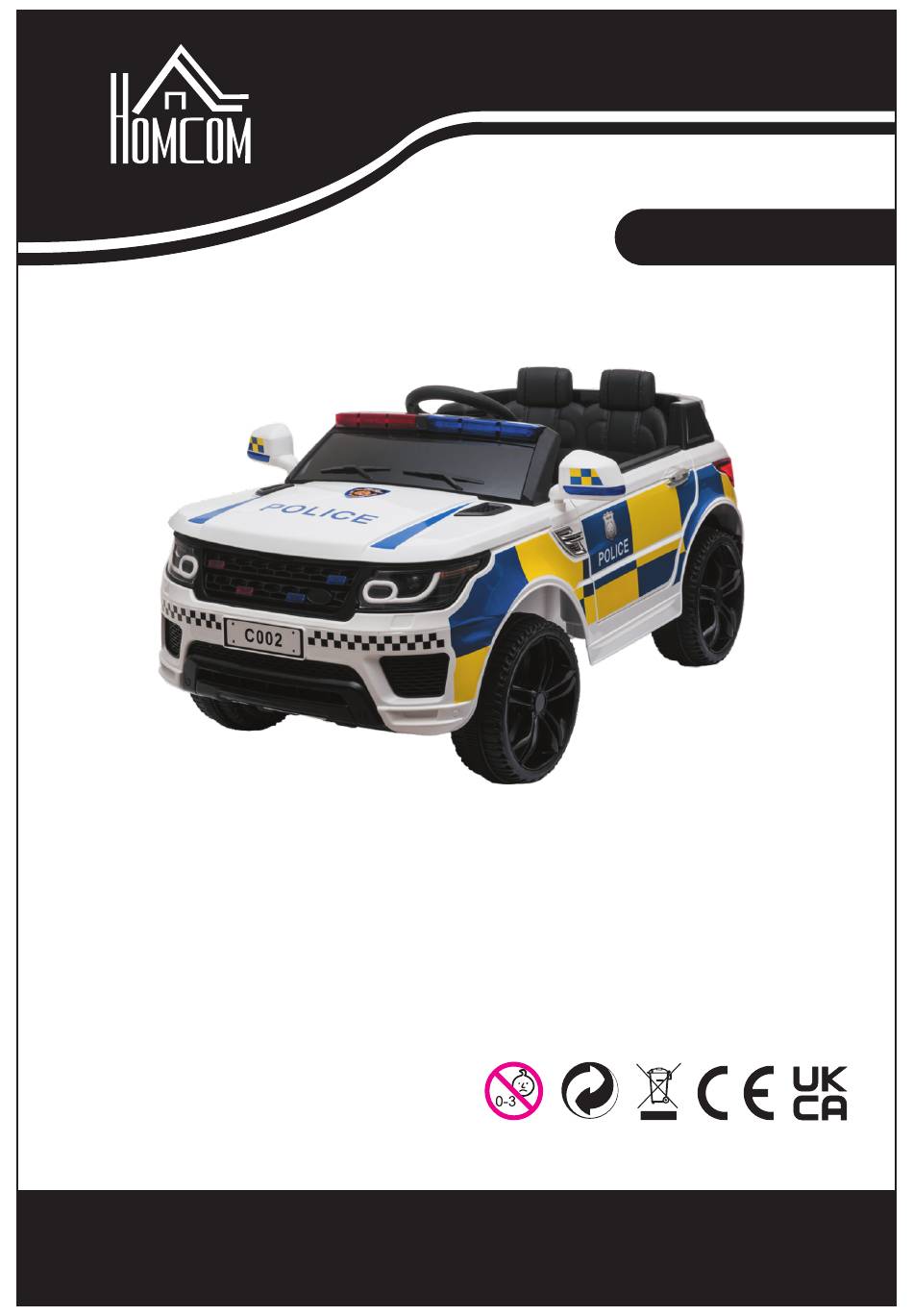

INfda008_UK
370-187V70
● R/C controls forward/backward and left/right
● Volume adjustment
● Power display
● Forward and backward
● High and low speed
*Suitable for children of
3-6
years old.
*Max weight:
30
kg.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
ASSEMBLY INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 370-187V70 and is the answer not in the manual?

Questions and answers

Related Manuals for HOMCOM 370-187V70

Summary of Contents for HOMCOM 370-187V70

  • Page 1 INfda008_UK 370-187V70 ● R/C controls forward/backward and left/right ● Volume adjustment ● Power display ● Forward and backward ● High and low speed *Suitable for children of years old. *Max weight: IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
  • Page 2 Steering wheel Wheel Cover Main Rear wing Wheel Windshield +1(spare) Washer Seat Right and left bracket Rearview mirror +1(spare) Charger Cotter pin Screw Remote Control Screw...
  • Page 3 Product Specifications : Battery 12V/4.5AHx1 Generator Drive Motor 12V,30W #390 x2 Steering Motor 12V #380 x1 Applicable Age Range 37-72 months Maximum load 30KG Speed 3-5 KM/H Hours of Use Using 1-2 hours after charging 8-12 hours Charger Input: AC120V-240V ,50-60Hz,0.2A; Output: DC12V,500mA,6W Remote Control Battery AAA1.5Vx2(not provided)
  • Page 4 Remote Control Function and explaination ● Never switch forward and backward operations in the moving, or the gear box and motor will be damaged. ● Use the remote control with battery. ● Only the baby's legal guardian can use the remote control. ●The product is operated mainly by remote control.

  • Page 5: Steering Wheel Assembly

    2. Front and rear wheels assembly Assembling washer, front wheel, washer step by step, then using cotter pin to tighten, finally inserting wheel cover. Assembling rear wheel, washer step by step, then using cotter pin to tighten, finally inserting wheel cover. Same way to the other side.

  • Page 6: Seat Assembly

    5. Rear wing assembly Connecting the lines which are in the rear wing and car body, then inserting rear wing into the right hole on the car. 6.Battery line connecting Connect the battery line correctly, red to red, black to black. 7.Seat assembly Inserting the seat into the right place in the car, then use 2pcs screw to tighten.
  • Page 7 8. Rearview mirror assembly Inserting right and left rearview mirror into the right place.

  • Page 8: Charging Notice

    WARNING The toy is to be assembled by an adult. ln unassembled state contain potentially hazardous sharp points, sharp edges and small part, so please keep out of baby's reach. Not to be used in traffic. Only adults can install parts and adjust the car, and keep moving parts out of children’s reach.

  • Page 9: Trouble Clearing

    Charging steps are as follows: Step 1: The charging hole is under the steering wheel. Step 2: Put the charger plug into the plug hole. Step 3: Connect the charger to the power socket. Warning: Car must be charged by adults only. Car is useless during charging. Trouble Clearing Type Analysis...

  • Page 10: Maintenance And Service

    Maintenance and Service Before use children’s parents should check whether charge' s wiring, plug, shell and other parts are damaged, and fix those damaged parts. After using the product for a time, parents should lubricate iron castings with lube, or those castings will get rusted; they should keep the product out of fire and lay it flat in dark places;...
