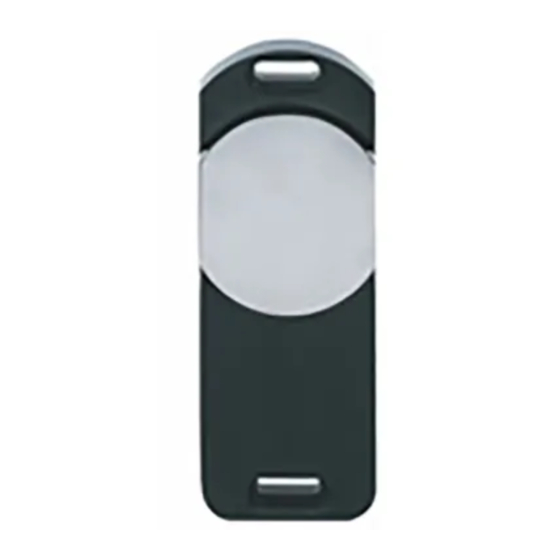

- Page 1 PSEN sl0.5n 1.1/2.1/2.2 PSEN sensor technology Operating Manual22173EN03...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received. Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®, SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks of Pilz GmbH & Co. KG in some countries. SD means Secure Digital...
-
Page 3: Table Of Contents
Content Introduction Validity of documentation Using the documentation Definition of symbols Safety Intended use Safety regulations Safety assessment Use of qualified personnel Warranty and liability Disposal Unit features Function description Lateral and vertical offset Wiring Guidelines for cable length Recommended cable cross sections Pin assignment Connection to evaluation devices Connection example PNOZ s3 Connection example PNOZmulti Teaching in the actuator PSEN sl0.5n 1.1 PSEN sl0.5n 2.1 PSEN sl0.5n 2.2 Installation Note regarding the freemoving actuator PSEN sl0.5fm Installing on a swing gate Installing on a sliding gate Adjustment Operation Error display through flashing codes Dimensions in mm Technical Details Order No. 570503570505 Technical Details Order No. 570563570565 Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... - Page 4 Content Status of the applied standards Safety characteristic data Order reference Safety gate system Accessories EC declaration of conformity Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03...
-
Page 5: Introduction
PSEN sl0.5n 1.1/2.1/2.2 Introduction Validity of documentation This documentation is valid for the product PSEN sl0.5n 1.1/2.1/2.2. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. Using the documentation This document is intended for instruction. Only install and commission the product if you have read and understood this document. The document should be retained for future ref erence. Definition of symbols Information that is particularly important is identified as follows: DANGER! This warning must be heeded! It warns of a hazardous situation that poses an immediate threat of serious injury and death and indicates preventive measures that can be taken. WARNING! This warning must be heeded! It warns of a hazardous situation that could lead to serious injury and death and indicates preventive measures that can be taken. CAUTION! This refers to a hazard that can lead to a less serious or minor injury plus material damage, and also provides information on preventive measures that can be taken. NOTICE This describes a situation in which the product or devices could be dam aged and also provides information on preventive measures that can be taken. It also highlights areas within the text that are of particular import ance. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 6: Safety
PSEN sl0.5n 1.1/2.1/2.2 INFORMATION This gives advice on applications and provides information on special fea tures. Safety Intended use The safety gate system meets the requirements in accordance with EN 602041:2006 EN 6094753:2005: PDFM with the corresponding actuator PSEN sl0.5 or PSEN sl0.5fm (see Technical details: System with normal actuator [ 22], System with freemoving actuator [ 25], under mechanical data) EN 62061:2005: SIL CL 3 EN ISO 138491:2008: PL e and Cat. 4 The safety switch may only be used with the corresponding actuator (see Technical de tails: System with normal actuator [ 22], System with freemoving actuator [ 25], under mechanical data). The safety level PL e (Cat. 4 )/SIL CL 3 is only achieved if the safety outputs use 2channel processing. The following is deemed improper use in particular: Any component, technical or electrical modification to the product Use of the product outside the areas described in this manual Use of the product outside the technical details (see chapter entitled "Technical De tails"). NOTICE EMCcompliant electrical installation The product is designed for use in an industrial environment. The product may cause interference if installed in other environments. If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in terference. INFORMATION The magnet surface and counterplate may heat up. When installing, make sure that heat dissipation is guaranteed. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 7: Safety Regulations
PSEN sl0.5n 1.1/2.1/2.2 INFORMATION Do not remove the protective cap until you are just about to connect the unit. Safety regulations Safety assessment Before using a unit it is necessary to perform a safety assessment in accordance with the Machinery Directive. Functional safety is guaranteed for the product as a single component. However, this does not guarantee the functional safety of the overall plant/machine. In order to achieve the re quired safety level for the overall plant/machine, define the safety requirements for the plant/machine and then define how these must be implemented from a technical and organ isational standpoint. Use of qualified personnel The products may only be assembled, installed, programmed, commissioned, operated, maintained and decommissioned by competent persons. A competent person is someone who, because of their training, experience and current pro fessional activity, has the specialist knowledge required to test, assess and operate the work equipment, devices, systems, plant and machinery in accordance with the general standards and guidelines for safety technology. It is the company’s responsibility only to employ personnel who: Are familiar with the basic regulations concerning health and safety / accident preven tion Have read and understood the information provided in this description under "Safety" And have a good knowledge of the generic and specialist standards applicable to the specific application. Warranty and liability All claims to warranty and liability will be rendered invalid if The product was used contrary to the purpose for which it is intended Damage can be attributed to not having followed the guidelines in the manual Operating personnel are not suitably qualified Any type of modification has been made (e.g. exchanging components on the PCB boards, soldering work etc.). Disposal In safetyrelated applications, please comply with the mission time T in the safetyre lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 8: Unit Features
PSEN sl0.5n 1.1/2.1/2.2 Unit features Transponder technology for presence detection (safety function) Unit types with coding (measure to minimise defeat possibilities in accordance with ISO 14119): – PSEN sl0.5n 1.1: coded – PSEN sl0.5n 1.1: coded, with freemoving actuator PSEN sl0.5fm – PSEN sl0.5n 2.1: fully coded – PSEN sl0.5n 2.1: fully coded, with freemoving actuator PSEN sl0.5fm – PSEN sl0.5n 2.2: uniquely coded – PSEN sl0.5n 2.2: uniquely coded, with freemoving actuator PSEN sl0.5fm Units available with two different actuators – Standard actuator PSEN sl0.5 with normal actuator plate for standard applications – Freemoving actuator PSEN sl0.5fm with freemoving actuator plate for special ap plications Dualchannel operation 2 safety outputs Magnetic guard locking for process protection 1 input to switch the locking magnet on/off LEDs for – Supply voltage/fault – Gate closed – State of the magnetic guard locking device 5 pin M12 male connector Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 9: Function Description
PSEN sl0.5n 1.1/2.1/2.2 Function description Power supply & Power/Fault & Safety Gate Lock Magnet Receiver Actuator There is a high signal at safety outputs 12 and 22 if the following occur simultaneously: The actuator is within the response range (safety gate closed) and Input S31 is high (control command for magnetic guard locking) and The holding force of the locking magnet has been tested successfully. Safety outputs 12 and 22 are low if at least one of the following conditions are met: The actuator is outside the response range or Input S31 (control command for magnetic guard locking) is low or The holding force of the locking magnet has not been tested successfully. Magnetic guard locking device and magnet monitoring The locking magnet is switched on if S31 (control command for magnetic guard locking) is high and the actuator is detected (safety gate closed). The holding force of the locking magnet is tested on powerup. After S31 switches to low, wait at least 500 ms until S31 is switched back to high. Also note the max. switching frequency (see Technical details [ 22]). If an open winding or a winding short circuit is detected on a locking magnet that is switched on, safety outputs 12 and 22 switch to a low state. For physical reasons, a remanence (residual magnetism) remains after the locking magnet is switched off; this is dissipated the first time the sensor and actuator are sep arated. If the safety gate is in a locked condition and is opened by force, the safety outputs will shut down. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 10: Lateral And Vertical Offset
PSEN sl0.5n 1.1/2.1/2.2 Lateral and vertical offset Vertical offset max. 5 mm Lateral offset max. 3 mm Wiring Please note: You must comply with the specifications stated in the technical details (see Technical details: System with normal actuator [ 22], System with freemoving actuator [ 25], under electrical data, inputs and semiconductor outputs). The power supply must meet the regulations for extra low voltages with protective sep aration (SELV, PELV). The inputs and outputs of the safety switch must have a protective separation to voltages over 60 VDC. INFORMATION Only use safety relays with a 24 VDC supply voltage. Safety relays with uni versal power supply or in AC device versions have internal potential isola tion and are not suitable as evaluation devices. Guidelines for cable length The max. cable length depends on the voltage drop at the sensor cables. The level of voltage drop is determined by the: Cable resistance Current of the device and the current load of the safety outputs 12 and 22 If the level of the supply voltage at the device connector falls below the minimum permitted value (see Technical details: System with normal actuator [ 22], System with freemov ing actuator [ 25], under electrical data), the electromagnet is no longer activated reli ably. The "Lock" LED registers an error when guard locking. Possible remedies: Set the supply voltage constantly to the upper tolerance range (see Technical details: System with normal actuator [ 22], System with freemoving actuator [ 25], un der electrical data) Select a higher cable cross section Reduce the load on the safety output, e.g. with an electrical evaluation device (PNOZ e1.1p, 5 mA/channel) Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 11: Recommended Cable Cross Sections
PSEN sl0.5n 1.1/2.1/2.2 Recommended cable cross sections Prerequisite: Supply voltage: 24 V Cable type: LiYY 5x0.25 mm² (79 Ohm/km) from Pilz Max. load per safety output 100 mA 500 mA Cable length 65 m 28 m If cable lengths greater than those stated in the table are required, please contact Pilz. Pin assignment 5pin M12 connector Cable colour (Pilz Function Terminal designation cable) +24 UB Brown Output, channel1 White 0 V UB Blue Output, channel2 Black "Lock_Unlock" Grey The wire colour also applies for the cable available from Pilz as an accessory. Connection to evaluation devices Make sure that the selected evaluation device has the following properties: Dualchannel with feasibility monitoring OSSD signals are evaluated Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... - Page 12 PSEN sl0.5n 1.1/2.1/2.2 Connection diagram, single connection 24 V 0 V Actuator Receiver O1 (ST) I1 (FS) I2 (FS) Evaluation device FS: Failsafe ST: Standard Connection to Pilz evaluation devices The safety switch PSEN sl0.5n 1.1/2.1/2.2 can be connected to Pilz evaluation devices, for example. Make sure that an evaluation device is selected that can evaluate OSSD signals through two channels. Suitable Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring PNOZpower for safety gate monitoring PNOZsigma for safety gate monitoring PNOZ X for safety gate monitoring PNOZmulti for safety gate monitoring Configure the switch in the PNOZmulti Configurator with switch type 3. PSS for safety gate monitoring with standard function block SB064, SB066 or FS_Safety Gate The correct connection to the respective evaluation device is described in the instructions for the evaluation device. Make sure that the connection is made in accordance with the specifications in the instructions for the selected evaluation device. The connections to two evaluation devices are shown on the following pages, by way of ex ample: PNOZ s3 and PNOZmulti Operating Manual PSEN sl0.5n 1.1/2.1/2.2...
-
Page 13: Connection Example Pnoz S3
PSEN sl0.5n 1.1/2.1/2.2 Connection example PNOZ s3 PNOZ s3 PSENslock Connection example PNOZmulti PNOZmulti PSENslock green yellow Legend: Input OSSD Input OSSD Signal input Lock/Unlock Teaching in the actuator PSEN sl0.5n 1.1 Any corresponding Pilz actuator (see Technical details: System with normal actuator [ 22], System with freemoving actuator [ 25], under mechanical data) is detected as soon as it is brought into the response range. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 14: Installation
PSEN sl0.5n 1.1/2.1/2.2 PSEN sl0.5n 2.1 Teaching in the actuator for the first time: The first corresponding actuator to be detected by the safety switch (see Technical details: System with normal actuator [ 22], System with freemoving actuator [ 25], under mechanical data) is automatically taught in as soon as it is brought into the response range. To teach in a new actuator: The actuator that is to be taught in must be brought into the safety switch's response range as the only transponder. As soon as the actuator is detected, the "Safety Gate" LED switches to a yellow flashing light. After 20 s has elapsed, the "Safety Gate" LED switches to quick yellow flashes. Trigger a system reset in the next 120 s by interrupting the power supply. When the device is switched back on, the learning procedure is complete and the num ber of permitted additional learning procedures is reduced by 1. A maximum of 8 learning procedures are possible. NOTICE The actuator must not be removed during the learning procedure. INFORMATION This actuator cannot be retaught on the same safety switch. PSEN sl0.5n 2.2 The first corresponding actuator to be detected by the safety switch (see Technical details: System with normal actuator [ 22], System with freemoving actuator [ 25], under mechanical data) is automatically taught in as soon as it is brought into the response range. NOTICE No other actuator may be taught in once this actuator has been taught. Installation When installing make sure you comply with the requirements of DIN EN 1088. The safety gate system can be installed on left or righthinged swing gates or on sliding gates. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... - Page 15 PSEN sl0.5n 1.1/2.1/2.2 WARNING! Potential loss of safety function due to gross manipulation Depending on the application, serious injury or death may result. Use appropriate installation measures to prevent – The wiring being modified. – A short circuit being generated on the connector. – The possibility of using a second actuator to open the safety gate. The safety switch and actuator should be installed opposite each other in parallel. The actuator should be secured permanently using safety screws or rivets. CAUTION! The unit's properties may be affected if installed in an environment contain ing electrically or magnetically conductive material. Please check the oper ating distances and the assured release distance. INFORMATION Mounting brackets are available as accessories [ 29]. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03...
-
Page 16: Note Regarding The Freemoving Actuator Psen Sl0.5Fm
PSEN sl0.5n 1.1/2.1/2.2 Note regarding the freemoving actuator PSEN sl0.5fm The freemoving actuators PSEN sl0.5fm are fitted with a movable metal plate. For this reason, a recess must be provided in the mounting surface for the screw connec tion. A (2:1) WARNING! Risk of death and serious injury by reaching into the danger zone! The actuators enable a warped gate to be closed. A gap may occur on the gate as a result. Make sure that the gap remains small enough to exclude the possibility of reaching into the danger zone. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 17: Installing On A Swing Gate
PSEN sl0.5n 1.1/2.1/2.2 Installing on a swing gate Align the actuator flush with the edge of the gate at the height required and tighten the screws. Close gate. Align the mounting bracket flush with the sensor and tighten the screws. Align the sensor and mounting bracket with the actu ator and tighten the screws. Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 18: Installing On A Sliding Gate
PSEN sl0.5n 1.1/2.1/2.2 Installing on a sliding gate Align the actuator mounting bracket flush with the sliding gate and tighten the screws. Install the actuator at the height required. Align the sensor mounting bracket flush with the frame and fasten with screws. Important: Do not tighten the screws. Fix sensor upright with a screw (a), close gate. Align mounting brackets, press firmly together and tighten screw (b). Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 19: Adjustment
PSEN sl0.5n 1.1/2.1/2.2 Remove the sensor and tighten screw (c). Align the sensor to the actuator and tighten the screws. Adjustment The stated operating distances (see Technical details: System with normal actuator [ 22], System with freemoving actuator [ 25], under mechanical data) only apply when the safety switch and actuator are installed facing each other in paral lel. Operating distances may deviate if other arrangements are used. Note the maximum permitted lateral and vertical offset (see Lateral and vertical offset [ 10]). Operation Check the function of the safety switch before commissioning. Any deviations from the properties and functions described in these operating in structions can lead to hazardous situations. CAUTION! Contaminated surfaces can reduce the holding force of the electromagnet. Make sure that the contact surfaces are clean. Status indicators: "Power / Fault" LED illuminates green: The unit is ready for operation "Safety Gate" LED lights up yellow: Actuator is within the response range "Lock" LED lights up green: Magnetic guard locking device active "Input" LED lights up yellow: The unit is ready for operation Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03... -
Page 20: Error Display Through Flashing Codes
PSEN sl0.5n 1.1/2.1/2.2 Error display through periodic flashing: "Power/Fault" LED lights up red: Error message Flashing codes for fault diagnostics are output to the "Safety Gate" or "Input" LED (see Error display through flashing codes). Remedy: Rectify fault and interrupt power supply. "Lock" LED lights up red: Guard locking request is present, but guard locking has not taken place. This behaviour occurs, for example, when the safety gate is open or the actuator is not within the response range or the holding force is too low. Remedy: Rectify the cause (e.g. close safety gate), switch off S31 and then switch it back on again after at least 500 ms. "Input" LED lights up yellow: Internal error, change unit. Please note the different times for The switchon delay after UB is applied. Error display through flashing codes The "Safety Gate" and "Input" LEDs send flash signals; an error code can be established from the number and sequence. The "Power/Fault" LED illuminates red. Each error code is indicated by three short flashes of the "Input" or "Safety Gate" LED. After a longer pause, the LED will then flash at one second intervals. The number of LED flashes corresponds to a digit in the error code. The error code can consist of up to 3 digits. The digits are separated by a longer period without flashing. The entire sequence is con stantly repeated. Number of flashes 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Decimal error code 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0 Example: Error code 1,4,1: Flash frequency of the "Safety Gate" or "Input" LED Meaning of flash frequency: Flash frequency Meaning 3 times, short Code for error message Once, for one second each Code for 1st digit 4 times, for one second each Code for 2nd digit Once, for one second each Code for 3rd digit 3 times, short Code for error message repeated... -
Page 21: Dimensions In Mm
PSEN sl0.5n 1.1/2.1/2.2 Table of error codes Error code Number of flashes Description Remedy Decimal 1.4.1 3x short – 1x long – 4x Wiring error Rectify wiring error long – 1x long – 3x short 1.12 3x short – 1x long – 12x Wiring error Rectify wiring error long – 3x short 1.6.3 3x short – 1x long – Wiring error Rectify wiring error 6x long – 3x long – 3x short 1.13 3x short – 1x long – 12x Wiring error Rectify wiring error long – 3x short 1.6.4 3x short – 1x long – Wiring error Rectify wiring error 6x long – 4x long – 3x short 3x short – 14x long – 3x Wiring error Rectify wiring error short 3x short – 15x long – 3x Wiring error Rectify wiring error short Other flashing codes signal an internal error. Remedy: Change device. -
Page 22: Technical Details Order No. 570503570505
PSEN sl0.5n 1.1/2.1/2.2 Fig.: Mounting bracket for sliding gate (see Accessories [ 29]) Fig.: Mounting bracket for swing gate (see Accessories [ 29]) Technical Details Order No. 570503570505 General 570503 570504 570505 Approvals CE, EAC (Eurasian), CE, EAC (Eurasian), CE, EAC (Eurasian), TÜV, cULus Listed TÜV, cULus Listed TÜV, cULus Listed Sensor's mode of opera tion Transponder Transponder Transponder Classification in accord ance with EN 6094753 PDFM PDFM PDFM Electrical data 570503 570504 570505 Supply voltage Voltage 24,0 V 24,0 V 24,0 V Kind Voltage tolerance 15 %/+10 % 15 %/+10 % 15 %/+10 % Output of external power supply (DC) - Page 23 PSEN sl0.5n 1.1/2.1/2.2 Electrical data 570503 570504 570505 Max. cable capacitance at the safety outputs Noload, PNOZ with re lay contacts 40 nF 40 nF 40 nF PNOZmulti, PNOZelog, 70 nF 70 nF 70 nF Max. inrush current im pulse Current pulse, A1 14,00 A 14,00 A 14,00 A Pulse duration, A1 0,0250 ms 0,0250 ms 0,0250 ms Semiconductor outputs 570503 570504 570505 OSSD safety outputs Switching current per out 500 mA 500 mA 500 mA Breaking capacity per out 12,0 W 12,0 W 12,0 W Residual current at "0" signal 0,25 mA 0,25 mA...
- Page 24 PSEN sl0.5n 1.1/2.1/2.2 Environmental data 570503 570504 570505 Climatic suitability In accordance with the standard EN 60068278 EN 60068278 EN 60068278 Humidity 93 % r. h. at 40 °C 93 % r. h. at 40 °C 93 % r. h. at 40 °C EN 55011: class A, EN EN 55011: class A, EN EN 55011: class A, EN 6094753, EN 62061 6094753, EN 62061 6094753, EN 62061 Vibration In accordance with the standard EN 6094752 EN 6094752 EN 6094752 Frequency 10,0 55,0 Hz 10,0 55,0 Hz 10,0 55,0 Hz Amplitude 1,00 mm 1,00 mm 1,00 mm Shock stress In accordance with the standard EN 60068227 EN 60068227 EN 60068227 Acceleration Duration...
-
Page 25: Technical Details Order No. 570563570565
PSEN sl0.5n 1.1/2.1/2.2 Mechanical data 570503 570504 570505 Connection type M12, 5pin male con M12, 5pin male con M12, 5pin male con nector nector nector Cable LiYY 5 x 0.25 mm2 LiYY 5 x 0.25 mm2 LiYY 5 x 0.25 mm2 Material Anchor plate Stahl vernickelt Stahl vernickelt Stahl vernickelt Base plate Anticorodal, hard anod Anticorodal, hard anod Anticorodal, hard anod ised ised ised Actuator Anticorodal, hard anod Anticorodal, hard anod Anticorodal, hard anod ised ised ised Dimensions Height 122,0 mm 122,0 mm 122,0 mm Width 45,0 mm 45,0 mm... - Page 26 PSEN sl0.5n 1.1/2.1/2.2 Electrical data 570563 570564 570565 Max. inrush current im pulse Current pulse, A1 14,00 A 14,00 A 14,00 A Pulse duration, A1 0,0250 ms 0,0250 ms 0,0250 ms Semiconductor outputs 570563 570564 570565 OSSD safety outputs Switching current per out 500 mA 500 mA 500 mA Breaking capacity per out 12,0 W 12,0 W 12,0 W Residual current at "0" signal 0,25 mA 0,25 mA 0,25 mA Short circuitproof Relay outputs 570563 570564 570565 Number of safety outputs 2 Times 570563 570564...
- Page 27 PSEN sl0.5n 1.1/2.1/2.2 Environmental data 570563 570564 570565 Vibration In accordance with the standard EN 6094752 EN 6094752 EN 6094752 Frequency 10,0 55,0 Hz 10,0 55,0 Hz 10,0 55,0 Hz Amplitude 1,00 mm 1,00 mm 1,00 mm Shock stress In accordance with the standard EN 60068227 EN 60068227 EN 60068227 Acceleration Duration 11 ms 11 ms 11 ms In accordance with the standard EN 60068229 EN 60068229 EN 60068229 Acceleration Duration 16 ms 16 ms 16 ms Airgap creepage Overvoltage category Pollution degree...
- Page 28 PSEN sl0.5n 1.1/2.1/2.2 Mechanical data 570563 570564 570565 Material Anchor plate Stahl vernickelt Stahl vernickelt Stahl vernickelt Base plate Anticorodal, hard anod Anticorodal, hard anod Anticorodal, hard anod ised ised ised Actuator Anticorodal, hard anod Anticorodal, hard anod Anticorodal, hard anod ised ised ised Dimensions Height 122,0 mm 122,0 mm 122,0 mm Width 45,0 mm 45,0 mm 45,0 mm Depth 44,0 mm 44,0 mm 44,0 mm Actuator dimensions Height 138,0 mm 138,0 mm 138,0 mm Width...
- Page 29 PSEN sl0.5n 1.1 / PSEN Safety gate system with M12, 5pin connector 570 563 sl0.5fm freemoving actuator, coded PSEN sl0.5n 2.1 / Safety gate system with M12, 5pin connector 570 564 PSEN sl0.5fm freemoving actuator, fully coded PSEN sl0.5n 2.2 / Safety gate system with M12, 5pin connector 570 565 PSEN sl0.5fm freemoving actuator, uniquely coded Accessories Product type Features Order no. PSEN sl bracket swing door Mounting bracket for swing gates and folding gates 570 550 PSEN sl bracket sliding door Mounting bracket for sliding gates 570 551 EC declaration of conformity This product/these products meet the requirements of the directive 2006/42/EC for ma chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, FelixWankelStr. 2, 73760 Ost fildern, Germany Operating Manual PSEN sl0.5n 1.1/2.1/2.2 22173EN03...
