Endress+Hauser mycom CLM 152 Operating Manual page 28

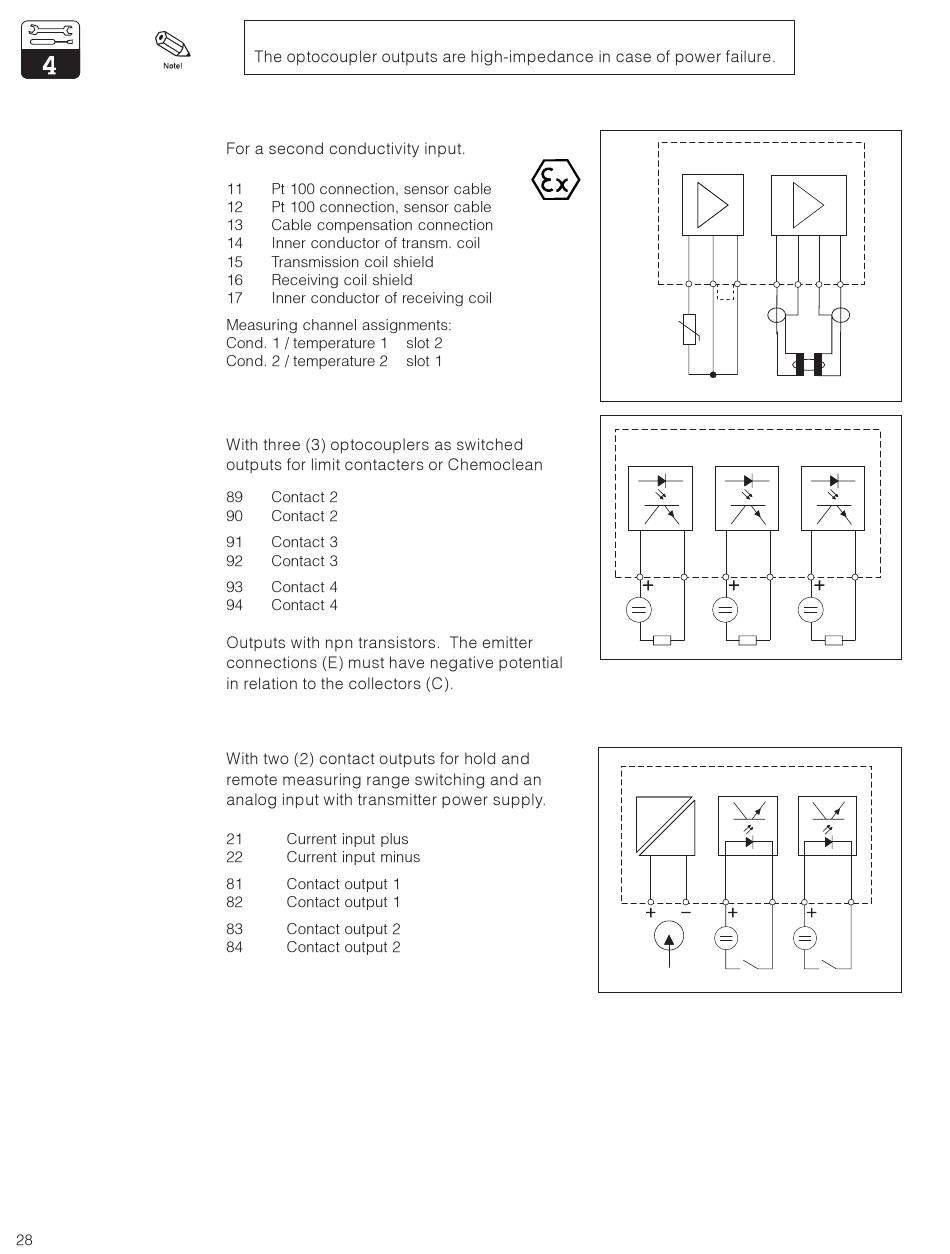

Figure 4.16
Connection of module
FCL1
Figure 4.17
Connection of module
FCYK, Ex
Figure 4.18
Connection of module
FCXI
Note!
Expansion Module FCL1 (toroidal):
Expansion Module FCYK-Ex:
Expansion Module FCXI:
11 12 13 14 15 16 17
Pt 100
Contact 2 Contact 3 Contact 4
89 90 91 92
Contact outputs
Current input
mA
21 22 81
82
93 94
83 84
