Figure 4.2
Mounting kit for panel
installation and post
mounting
(order no. 50061357)
Figure 4.3
¬ Panel installation
Post mounting of
Mycom CLM 152
Figure 4.4
Weather protection cover
Figure 4.5
Round post mounting kit
for weather protection
cover CYY 101

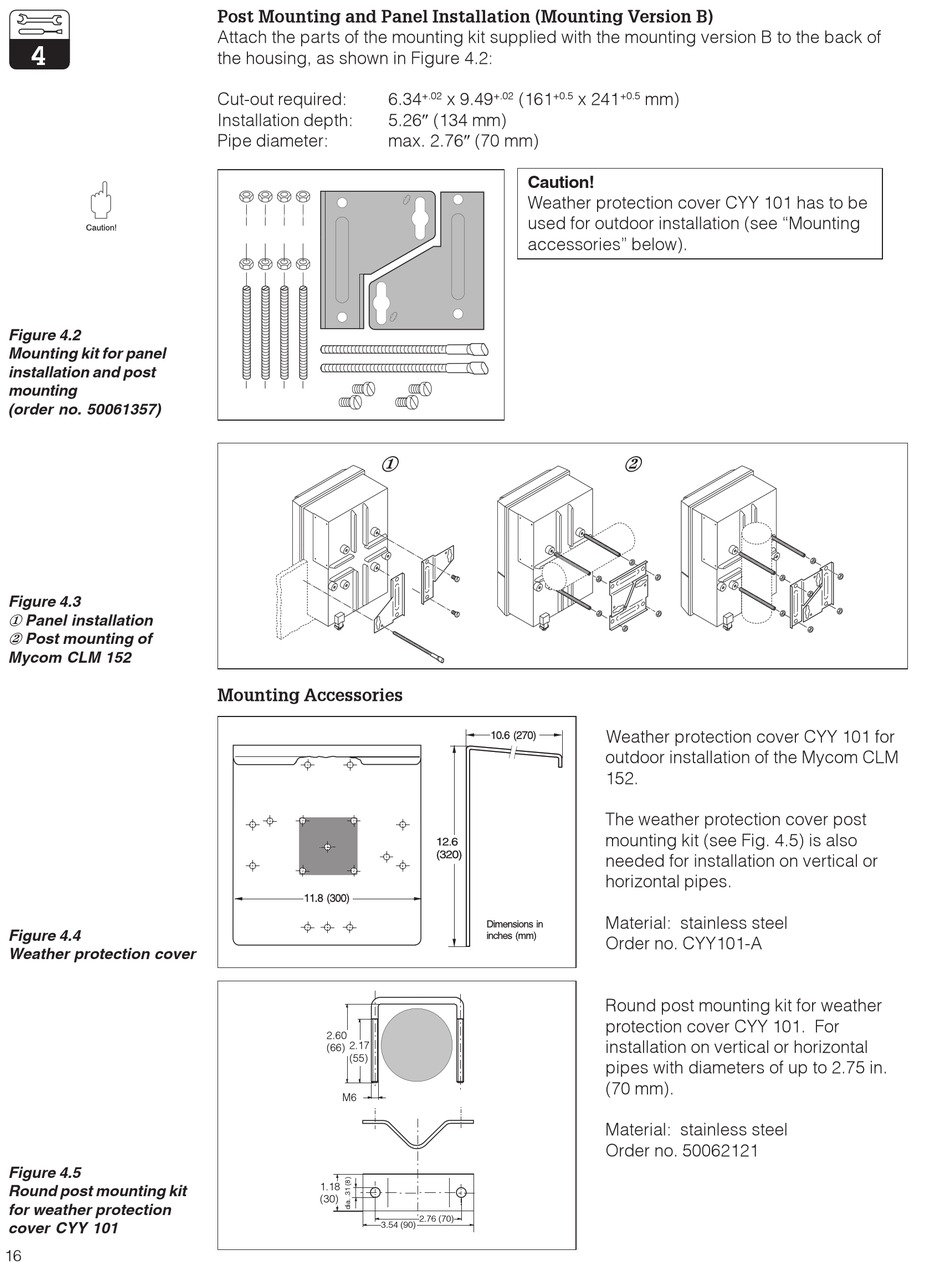

Post Mounting and Panel Installation (Mounting Version B)
¬
Mounting Accessories
2.60
(66) 2.17
(55)
M6
1.18
(30)
3.54 (90)
+.02
+.02
+0.5
²
²
Caution!
2.76 (70)
+0.5
