Endress+Hauser mycom CLM 152 Operating Manual page 18

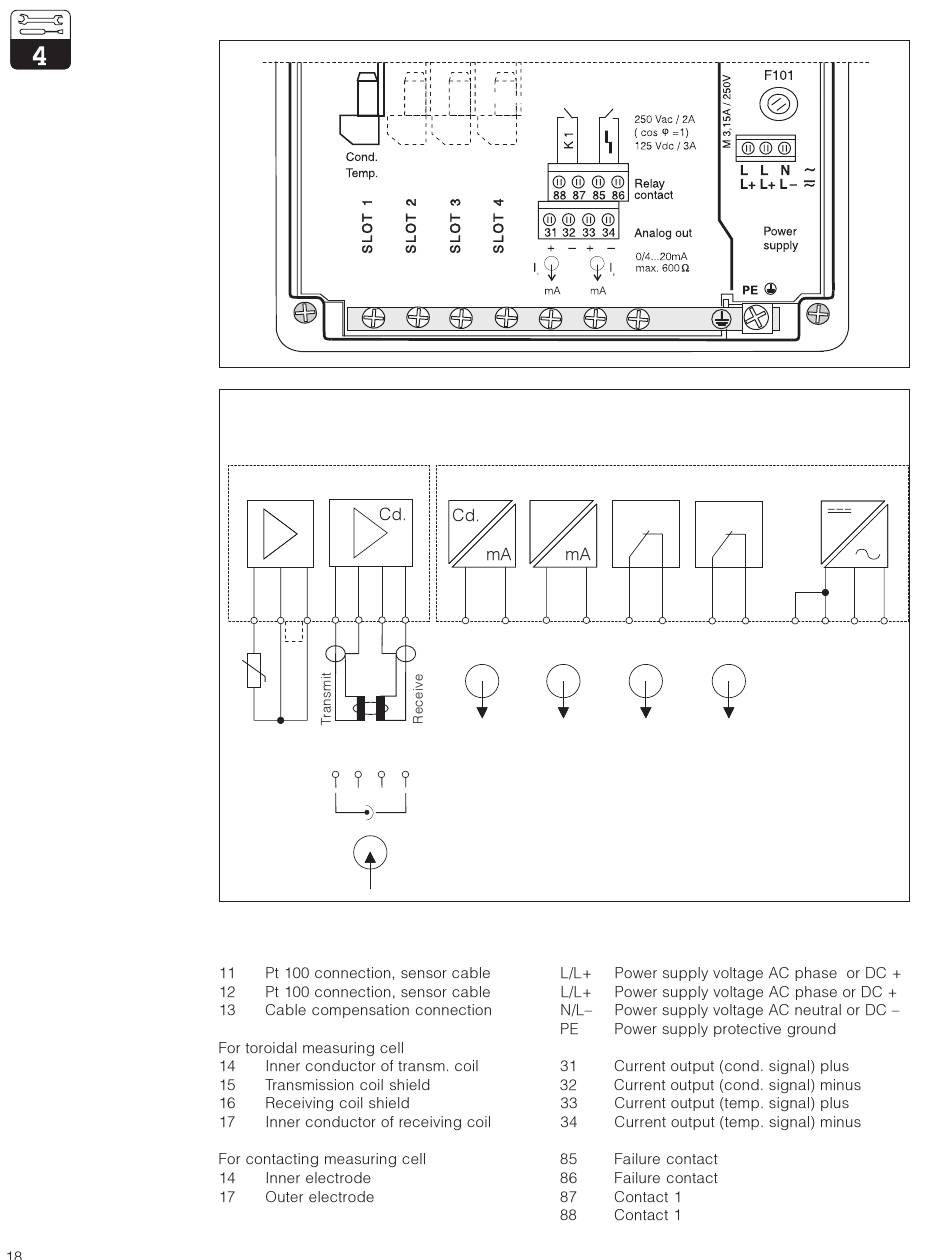

Figure 4.6
Connection compartment
of Mycom CLM 152
(basic configuration)
Figure 4.7
Connection diagram
for Mycom CLM 152
(basic configuration)
4.4.1 Connection of Mycom CLM 152 in non-Ex (non-hazardous) Areas
Conductivity input module FCL1
(slot 1)
Temperature Conductivity
J
11 12 13 14 15 16 17
Pt100
14 15 16 17
n.c.
n.c.
FCL1 module (slot 1, basic configuration):
Motherboard (basic assembly)
Conductivity Temperature
J
31 32 33 34
+ – + –
Toroidal
Contacting
Terminal blocks (basic configuration):
Failure Contact 1
85 86 87 88 AC: L
L+
DC:
Pwr Supply
L PE
N
L+
L–
