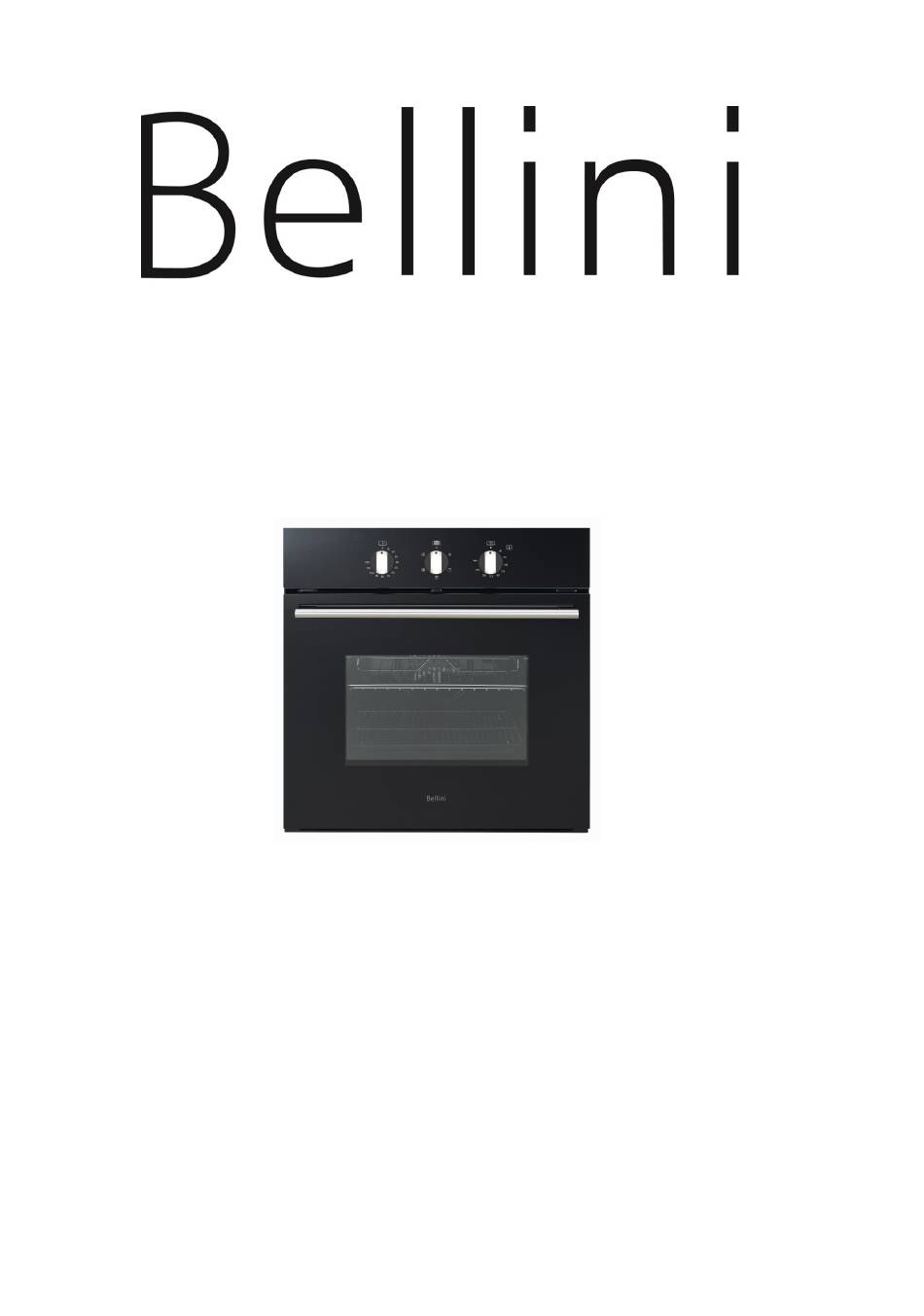

INSTALLATION & OPERATION
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ
www.belliniappliances.com.au Model: BOT605BP-F Fineline:5104070 60cm Built In Oven
INSTRUCTIONS
60cm Built In Oven
Model No.
BOT605BP-F
BOT605BP
FINELINE: 5104070 Aus Only
V.5 JULY20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bellini BOT605BP-F
Summary of Contents for Bellini BOT605BP-F
- Page 1 BOT605BP-F FINELINE: 5104070 Aus Only BOT605BP GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ V.5 JULY20 www.belliniappliances.com.au Model: BOT605BP-F Fineline:5104070 60cm Built In Oven...
- Page 2 Thank you Thank you for choosing Bellini Appliances. Bellini prides itself on ‘affordable living’ making sure there is no compromise in your favourite room … The Kitchen All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt.
-
Page 3: Table Of Contents
Oven Setting--------------------------------------7 Maintenance and cleaning -------------------10 Warranty------------------------------------------ 13 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: BOT605BP-F Fineline:5104070 60cm Built In Oven... -
Page 4: Safety Instructions
Important Safety Instructions This manual explains the proper installation and use of your oven, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. experience and knowledge, unless they’ve been General Warnings If the supply cord is damaged, the cord must be... - Page 5 flowing installing instructions. Grill The unit's power cord must be connected to a Do not cover the grill insert with foil, as fat built up properly grounded and protected, 220-240V may catch on fire. electrical outlet. Always ground fault Always keep the grill dish clean as any build up protection where required by the electrical code.
-
Page 6: Product Description
Product Description A. Minute Timer Knob D. Heating Indicator Light B. Function Select Knob E. Handle C. Temperature Select Knob F. 3 Layer Glass Door Accessories Accessory Name Picture Quantity Mounting Screws(ST4x20) 2 pcs Baking Pan & Rack 1 Pair Rack 2 pcs 1 pcs... - Page 7 Technical data product dimensions electrical min. fuse max. power max. current model (L x W x D) mm connection rating rating rating All 2 models 595x596x575 220-240V/50Hz 2.7 – 3.22Kw 13.4A Heating elements Motor 2 5 W a t t Oven light: Oven inside heating el.
-
Page 8: Installation
Installation The unit panels next to the appliance must be WARNING! Please follow the points below when heat resistant. In the case of veneered wood installing the appliance units, glue must be resistant to a temperature of 120°C. If the appliance is to be installed adjacent to vinyl Use an Authorised Person Installation should be carried out according to the wrapped surfaces, use an installation kit... - Page 9 The unit panels next to the appliance must be heat Cabinet Construction For Your Appliance The sizes of the unit for installing the appliance under resistant. In the case of veneered wood units, glues a worktop or in a column unit are shown in figure. must be resistant to a temperature of 120°C.
-
Page 10: Oven Setting
Oven Settings Preparing Your Oven 1. Please remove all stickers, leaflets and boxes from the door and from the floor of the oven before operation. 2. Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. - Page 11 Function Selector function description When the selector knob is in any position other than the “0”position, the oven light Oven Light comes on. Select this function, the air at ambient temperature is distributed inside the oven for Defrost defrosting food more quickly and without proteins adulteration. Both the fan and the circular heating element operate together.
- Page 12 Select the Temperature To set the temperature, turn the temperature selector in a clockwise direction to the desired setting. An indicator light above the temperature selector will come on. A thermostat controls the temperature in your appliance. When the temperature is reached, the heating source switches itself off and the indicator light goes out.
-
Page 13: Maintenance And Cleaning
Maintenance & Cleaning WARNING! Before cleaning your oven, or performing maintenance, disconnect it from the power supply. Do not use steam cleaners. Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and damage the enamel. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance! Do not clean the appliance when it is still hot! The inside and external surface of the oven should preferably... - Page 14 Replacement of the Oven Light Bulb WARNING! Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Cut off the supply of power to the oven by turning off the omni-polar switch connecting it to the mains, or by removing the plug if it is accessible;...
- Page 15 Step 1 Step 2 Step 3 Step 4 Troubleshooting Faults Causes Remedies The upper crust is dark and Not enough heat from the bottom Use the natural convection position. the lower part too pale Use deeper cake tins. Lower the temperature. Put the cake on a lower shelf.
-
Page 16: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 17 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
