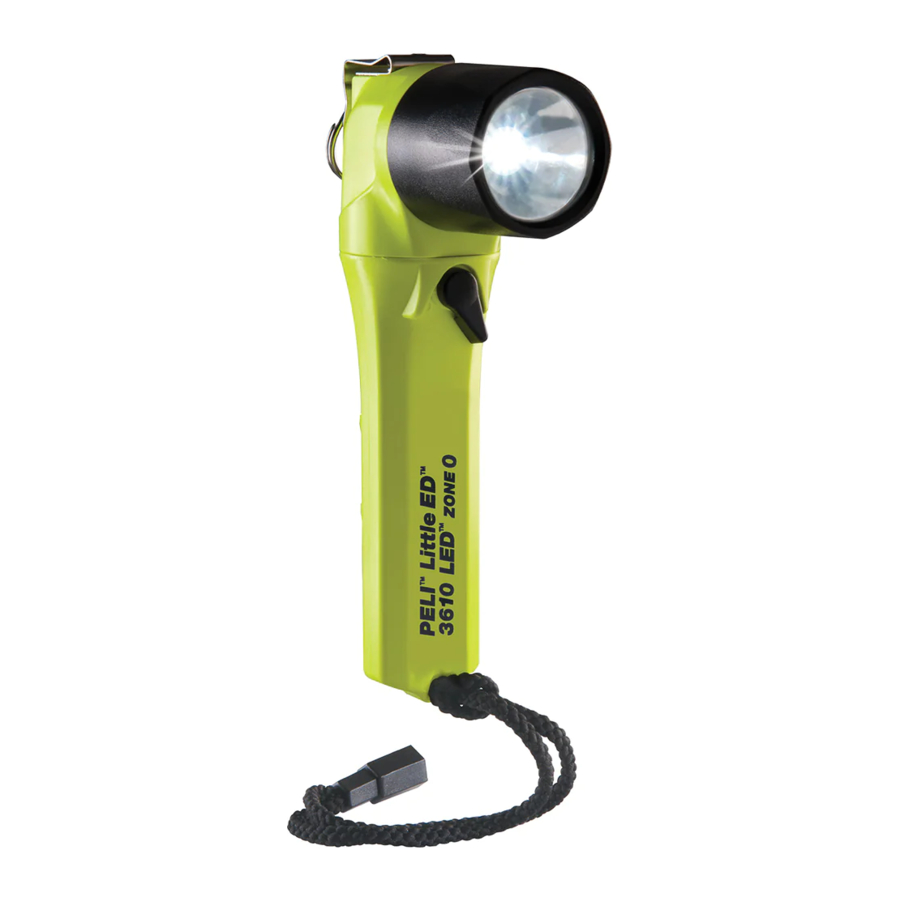

Pelican Little ED 3610 LED - 32 Lumens Flashlight Manual

BATTERY INSTALLATION AND REPLACEMENT

1. Grasp the right-angle housing of the flashlight and remove by turning counter-clockwise.
2. Remove the contact module and install the batteries as shown on the outside of the engraved body.
3. Replace the contact module.
4. Replace the right-angle housing by turning clockwise on the body until the lamp is pointing in the desired direction.

OPERATION

To turn on the light, push the switch over. To turn off the light, push the switch over to the other side.

LAMP REPLACEMENT

1. Unscrew the lens from the right-angle housing.
2. Remove the old lamp and replace with a new lamp.
3. Replace the lens and screw onto the housing until seated in the desired position.

If light is not to be used for some time, remove batteries to prevent possible leakage and corrosion.

O-RING MAINTENANCE

Check closely for cuts, scratches, or otherwise damaged O-ring or mating lens lip surface. Remove any dirt or foreign matter from O-ring sealing surfaces. Keep threads, O-ring groove and inside lip of lens lubricated with silicone grease. See Warranty information for replacement of O-ring.

PRODUCT SPECIFICATIONS

Lamp Type: LED

Battery Type: 1.5V Alkaline AA-cell (4)

Battery Brand: Eveready^® Energizer,^® Philips,^® Panasonic^®
