Pelican 3345 - 280 lumens LED Flashlight Manual

INTRODUCTION

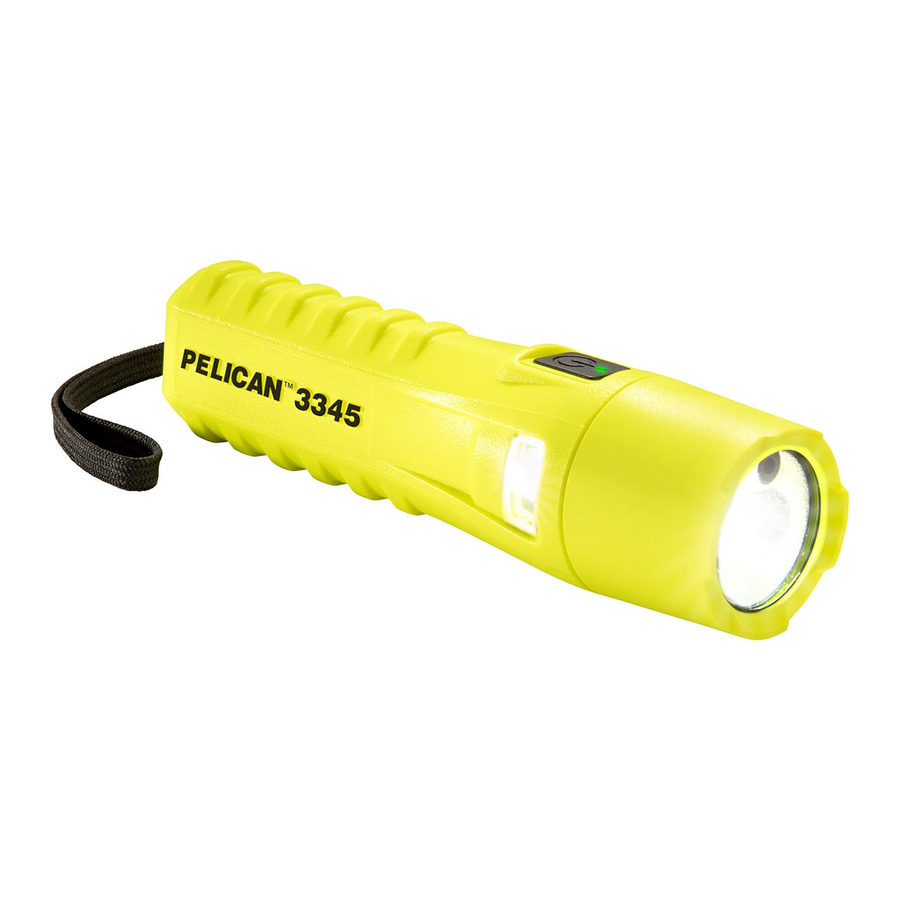

This compact LED safety certified flashlight provides dual beams (spot and flood) and incorporates an auto sensing feature. It is powered by (3) three AA 1.5V alkaline batteries (not included). The 3345 flashlight body is made of a high impact polymer alloy for the most durable construction and is water resistant supporting use in inclement weather conditions. Included is a convenient built-in clip

TO OPERATE

1. Spot Beam - From the off position, depress switch once.
2. Flood Beam – From the off position, depress the switch twice within 1 second.
3. Spot and Flood Beams – From the off position, depress the switch three times within 1.5 seconds.
4. Off – From any activated position, depress switch once.

TO ACTIVATE / DE-ACTIVATE AUTO SENSING

1. From the on position (spot beam only), press and hold the switch until you receive (2) confirming flashes which activates or de-activates the Auto Sensing feature.

AUTO SENSING

Once the auto sensing mode is activated, it will deliver the appropriate light level needed based on proximity and surrounding light levels.

BATTERY LEVEL INDICATOR

1. The battery level indicator is built in to the switch and represents the battery level via a colored LED (see below). The battery level is provided anytime the light is activated.

BATTERY INSTALLATION

1. Unscrew the shroud and pull out the lamp module/internal body to access the built-in battery tray.
2. Replace ALL batteries with fresh batteries as per polarity marking. Never mix partially depleted batteries with new. Dispose of used batteries in accordance with proper practices.
3. Insert the lamp module/internal body assembly and tighten the shroud onto the light body.

GENERAL CARE AND MAINTENANCE

1. Clean o-ring with a soft clean cloth to insure that sealing area is free of dirt that could damage the o-ring seal.

SPECIFICATIONS

BULB: LED
BATTERY: (3) Three AA alkaline

CL. I, II, III DIV. 1, GP. A-G T4
-20°C≤Ta≤+40°C IP54
Ex ia IIC T4 Ga (Canada)

Conforms to: UL STD 913
Certified to: CSA Std C22.2 No 60079-0
CSA Std C22.2 No 60079-11

IECEx ITS 17.0034X
Ex ia op is IIC T4 Ga

INTRINSICALLY SAFE APPARATUS
Approved for use with three size "AA" alkaline cells (Energizer E91, Philips LR6, Panasonic LR6 or Pelican/ Peli rechargeable cells P-NiMH-AA)

Do not replace batteries when an explosive atmosphere is present.
Do not mix cells from other manufacturers.
Replace all cells at the same time.
Risk of ignition - Do not open in hazardous area.
Substitution of components may impair intrinsic safety.

Battery Safety Bulletin

Alkaline Batteries

1. Hazardous location safety approvals for explosive environments are only valid for the specified cell type manufacturer and, where applicable, brand names that are displayed on the flashlight and/or instructions sheets that are supplied with the light.
2. The use of other battery technologies may reduce the performance of the the flashlight. Always read the battery manufacturers recommendations for the appropriate use of the battery technology/brand prior to using them in the flashlight.
3. When replacing the batteries:
   1. Replace all the batteries at the same time.
   2. Do not mix battery brands and old and new batteries.
   3. Always insert batteries correctly with regard to polarity (+ and -) marked on the battery and equipment.
4. Do not change batteries in a hazardous location.
5. Remove batteries from equipment if it is not to be used for an extended period of time.

PELICAN LIMITED LIFETIME GUARANTEE OF EXCELLENCE

Pelican Products, Inc. guarantees its lights for a lifetime against breakage or defects in workmanship. This guarantee does not cover the lamp or batteries. Pelican will either repair or replace any defective product, at our sole option.
To make a warranty claim, the purchaser must contact Pelican Products, Inc. at 23215 Early Avenue, Torrance, CA 90505 or csrwarranty@pelican.com, or by calling 1-800-473-5422, extension 5.

PELICAN PRODUCTS, INC.
23215 Early Avenue • Torrance, California 90505 USA
Tel 310.326.4700 • FAX 310.326.3311
www.pelican.com

PELICAN PRODUCTS ULC
10221-184th Street • Edmonton, Alberta T5S 2J4 Canada
Tel 780.481.6076 • FAX 780.481.9586
www.pelican.ca

© 2018 PELICAN PRODUCTS
All trademarks are registered and/or unregistered trademarks of Pelican Products, Inc., its subsidiaries and/or affiliates.
