Quick MILL QM67 EVO Instruction Manual page 3

QM67 Dual Boiler Espresso Machine

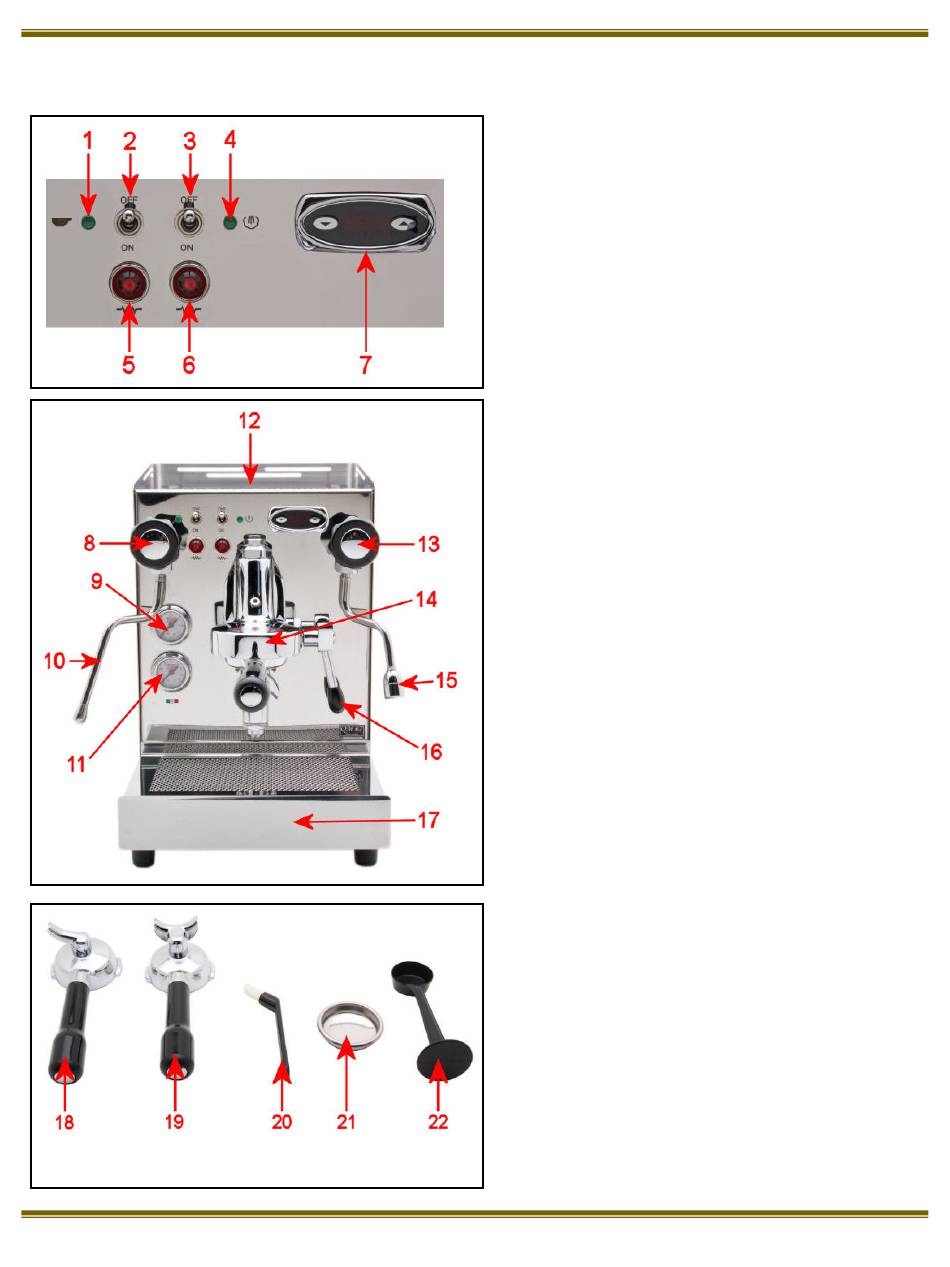

Diagrams
1. Coffee Boiler Power Indicator
2. Coffee Boiler Power Switch
3. Steam Boiler Power Switch
4. Steam Boiler Power Indicator
5. Coffee Boiler Heating Indicator
6. Steam Boiler Heating Indicator
7. PID Controller
8. Steam Knob
9. Steam Pressure Gauge
10. Steam Wand
11. Pump Pressure Gauge
12. Cup Warming Tray
(The water reservoir is located under the
hinged lid of the cup warming tray)
13. Hot Water Wand
(Do not remove more
than 6oz of water at one time until it has had
time to refill or damage to the heating element
may occur which will not be covered under
warranty)
14. E61 Grouphead
15. Hot Water Faucet
16. E61 Brew Lever
17. Drip Tray
18. Single Portafilter
19. Double Portafilter
20. Cleaning Brush
21. Backflush Disc
22. Coffee Scoop/Tamper
Page 2
