INSTALLATION INSTRUCTIONS (Continued)

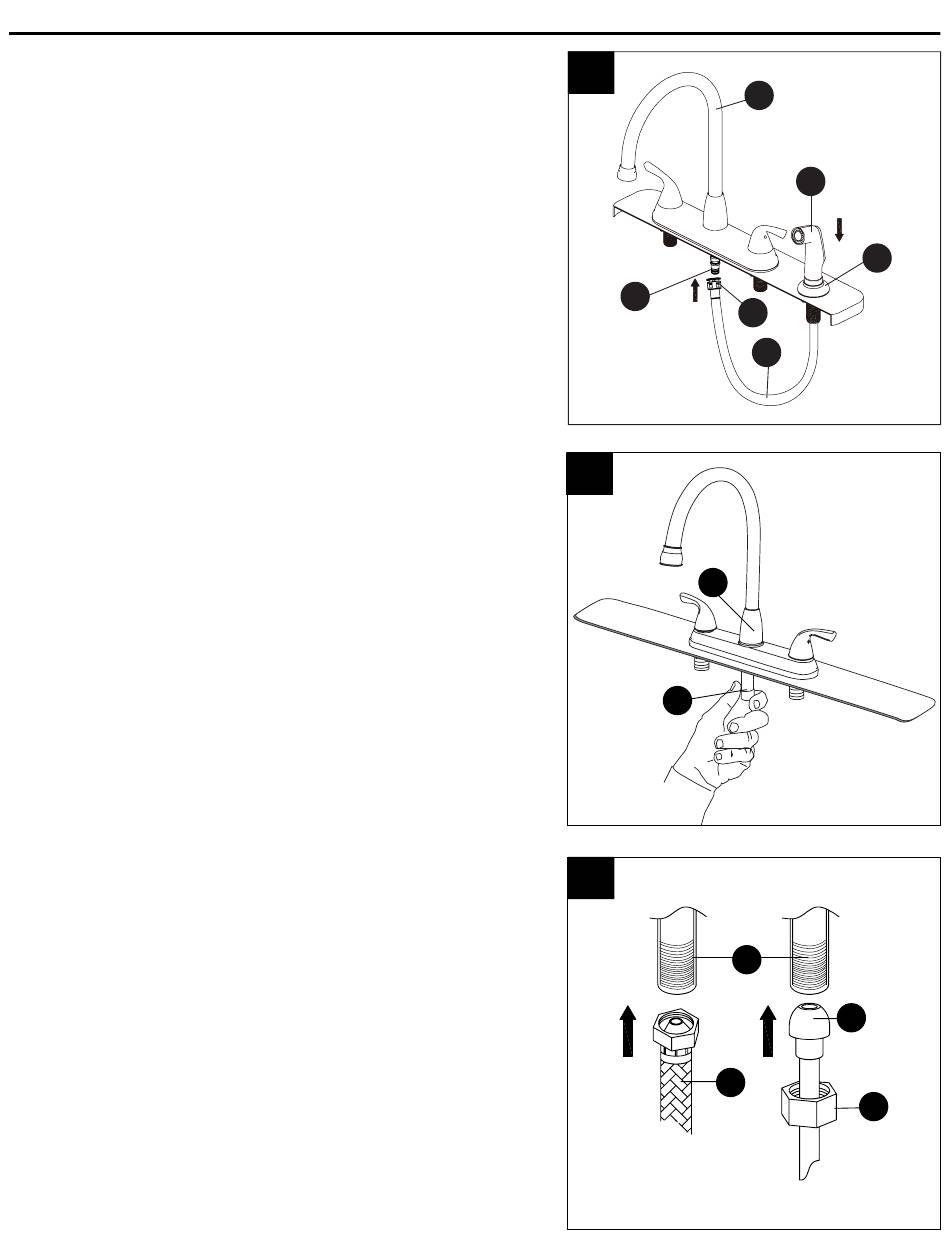

4. Insert the hose from the side spray assembly (B)
down through the sprayer support (C) and sink until
the spray head (4.1) rests in the top of the sprayer
support (C).
Underneath the sink, remove the hose connection
cap (D) from the faucet body (A). Push the quick
connector (4.2) on the end of the spray hose (4.3)
onto the quick connect sprayer outlet (4.4) on the
faucet body (A). Give the spray hose (4.3) a tug to
ensure the coupling is connected.
Skip to Step 6.
5. If not installing the side spray, ensure the hose
connection cap (D) is securely attached to the hose
connection on the bottom of the faucet body (A).
6. Attach one end of each of the water supply lines onto
the shanks (6.1) on the faucet body (A), with hot water
on the left and cold water on the right. Use 1/2 in. IPS
faucet connections (6.2) or supply line coupling nuts
(6.3) with 3/8 in. OD ball-nose risers (6.4). NOTE: Do
not reuse existing supply lines. When installing new
water supply lines, please refer to the supply line
manufacturer's installation instructions.
Tighten the supply line connections using an adjust-
able or basin wrench. Do not overtighten.
