Perle IRG5140+ Series Quick Start Manual

This guide covers basic installation and configuration and is intended for first time
setup or product evaluation of the IRG5140+ Router.
Complete details can be found in the following guides at www.perle.com/downloads.
•
IRG5140+ Series Router Hardware Installation Guide
•
IRG5000 Series Router User's Guide
•
IRG5000 Series Router CLI Reference Guide.
What's in the box?
•

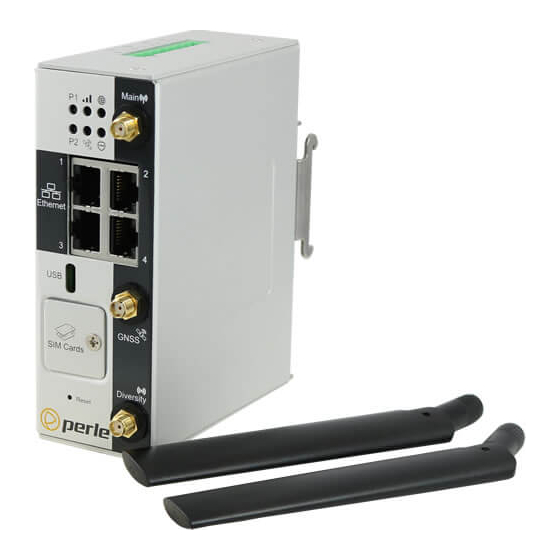

IRG5140+ Router
•
IRG5140+ Series Router Quick Start Guide (this guide)
•
Optional items
•
2 LTE antennas
•
GPS passive or active antenna

Getting Started

The steps for a typical installation are:
1. Inserting the SIM card/s.
2. Connecting antenna/s.
3. Connecting the Power.
4. Connecting to the Cellular Network.
5. Fast Setup Mode.

Inserting the SIM cards

Use only mini-SIM (2FF) cards.
Ensure the power is disconnected before you insert the SIM card/s.
1. Using a Phillips screwdriver, remove the screw from the panel covering the SIM
slots. Gently pry the SIM cover loose from the opening (see below).
2. Align the SIM card so that the SIM card will slide into the top slot (slot#1)
ensuring that the SIM card connectors will be facing the router's printed circuit
board. Always populate slot#1 first. Add a second SIM card if your network setup
requires it.
3. Align the SIM cover plate and secure the plate with the screw.
IRG5140+ Series Router Quick Start Guide 5500453-10
Version #A09.01.2020
IRG5140+ Series Router
Quick Start Guide
1
