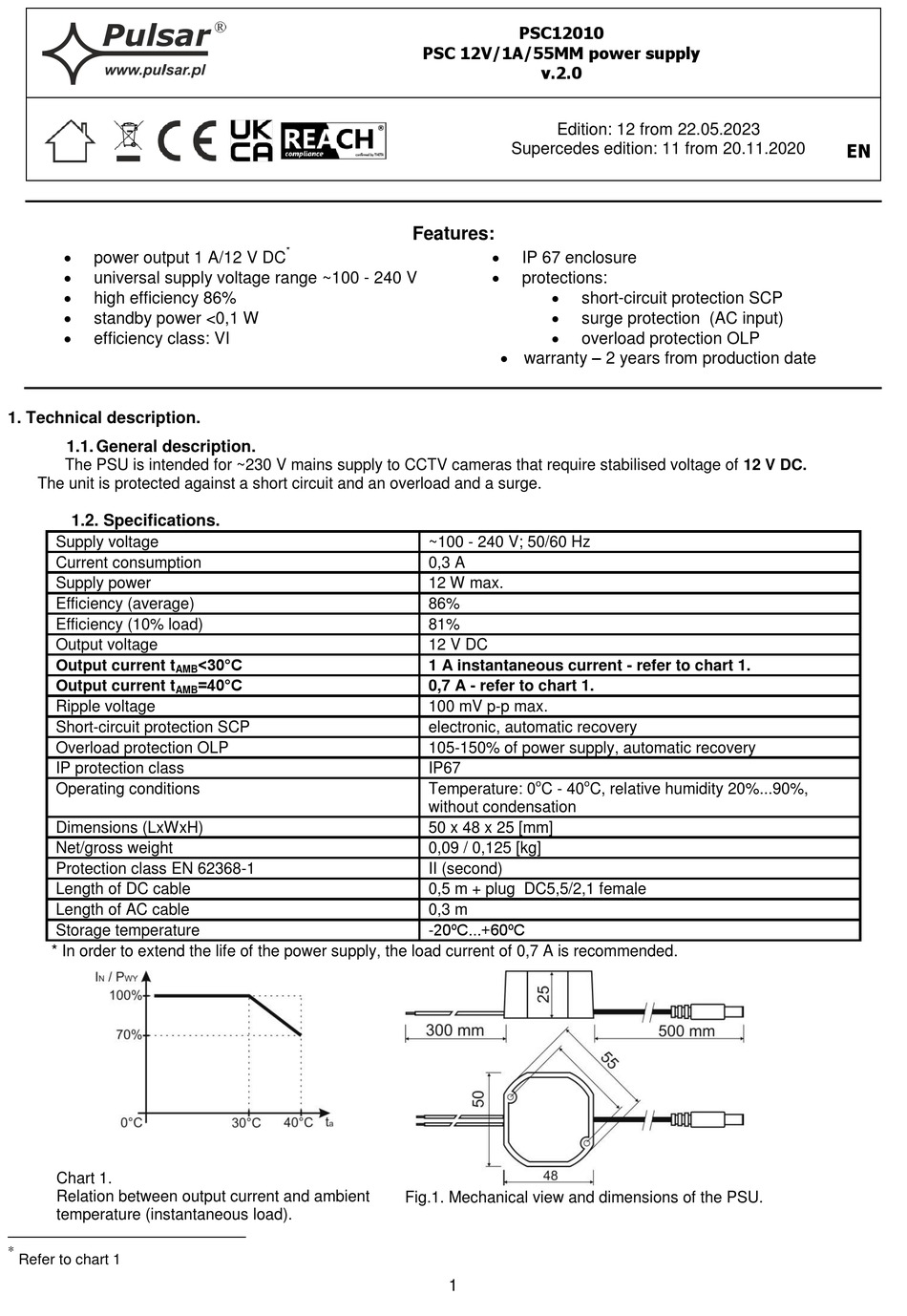

Pulsar PSC12010 Quick Start Manual


power output 1 A/12 V DC

universal supply voltage range ~100 - 240 V

high efficiency 86%

standby power <0,1 W

efficiency class: VI
1. Technical description.
1.1. General description.
The PSU is intended for ~230 V mains supply to CCTV cameras that require stabilised voltage of 12 V DC.
The unit is protected against a short circuit and an overload and a surge.
1.2. Specifications.
Supply voltage
Current consumption
Supply power
Efficiency (average)
Efficiency (10% load)
Output voltage
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
IP protection class
Operating conditions
Dimensions (LxWxH)
Net/gross weight
Protection class EN 62368-1
Length of DC cable
Length of AC cable
Storage temperature
* In order to extend the life of the power supply, the load current of 0,7 A is recommended.
Chart 1.
Relation between output current and ambient
temperature (instantaneous load).
*
Refer to chart 1
*
<30°C
=40°C
PSC12010

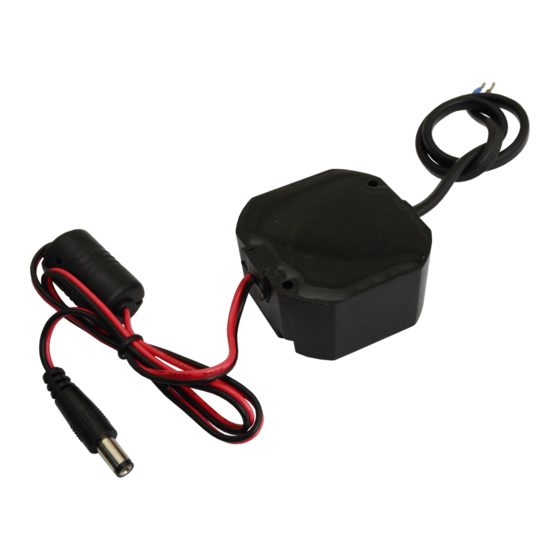

PSC 12V/1A/55MM power supply
v.2.0
Edition: 12 from 22.05.2023
Supercedes edition: 11 from 20.11.2020
Features:

IP 67 enclosure

protections:



 warranty – 2 years from production date
~100 - 240 V; 50/60 Hz
0,3 A
12 W max.
86%
81%
12 V DC
1 A instantaneous current - refer to chart 1.
0,7 A - refer to chart 1.
100 mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
IP67
o
Temperature: 0 C - 40
without condensation
50 x 48 x 25 [mm]
0,09 / 0,125 [kg]
II (second)
0,5 m + plug DC5,5/2,1 female
0,3 m
-20ºC...+60ºC
Fig.1. Mechanical view and dimensions of the PSU.
1
short-circuit protection SCP
surge protection (AC input)
overload protection OLP
o
C, relative humidity 20%...90%,
EN
