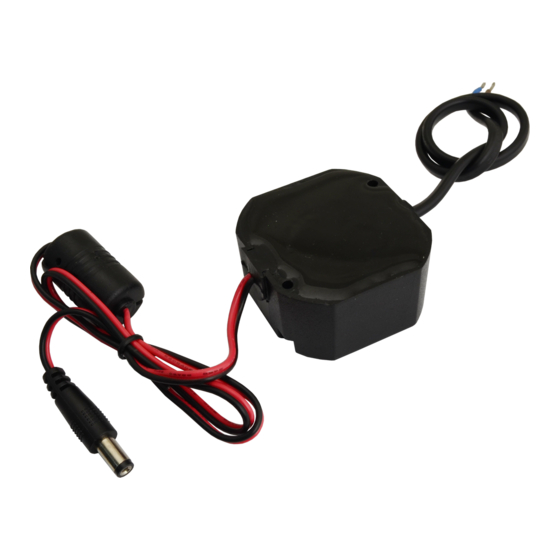

Pulsar PSC12010 Manual

power output 1A/12VDC

 universal AC voltage range 90÷264V
high efficiency 78%

standby power <0,3W

efficiency class: V

1. Technical description.
1.1. General description.
The PSU is intended for 230V AC mains supply to CCTV cameras that require stabilised voltage of 12V DC. The PSU can be
assembled in installation boxes, surface or flush-mounted, or fitted with 3mm screws. The unit is protected against a short circuit
and an overload and a surge.
1.2. Specifications.
Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
IP protection class
Operating conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Length of DC cable
Length of AC cable
Storage temperature
* In order to extend the life of the power supply, the load current of 0,7A is recommended.
Chart 1.
Relation between output current and ambient
temperature (instantaneous load
*
Refer to chart 1
*
<30°C
=40°C
).
PSC12010
PSC 12V/1A/55MM switch
mode power supply
Edition: 8 from 01.04.2014
Supercedes edition: 7 from 10.03.2014
Features:
IP 67 enclosure

protections:




 warranty – 2 year from the production date
90 ÷ 264V AC 50÷60Hz
0,13A@230V AC max.
12W max.
78%
12V DC
1A - refer to chart 1.
0,7A - refer to chart 1.
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
IP67
o o
temperature 0 C÷40 C
relative humidity 20%...90%
50 x 48 x 25 [mm]
0,09kg / 0125kg
II (second)
0,5m + plug DC5,5/2,1 female
0,3 m
-20ºC...+60ºC
Fig.1. Mechanical view and dimensions of the PSU.
1
short-circuit protection SCP
surge protection (AC input)
overload protection OLP
EN*
