Pulsar PSC13008 Manual

•
power output 0,8A/13,8VDC
•
universal AC input voltage range 90÷264V
•
high efficiency 77%
•
standby power <0,3W
•
efficiency level: V

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 13,8V DC.
Power supply can be assembled in installation box or fitted with 3mm screws. The unit is protected against short-circuit
and overload.

1.2.Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
IP protection class
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature

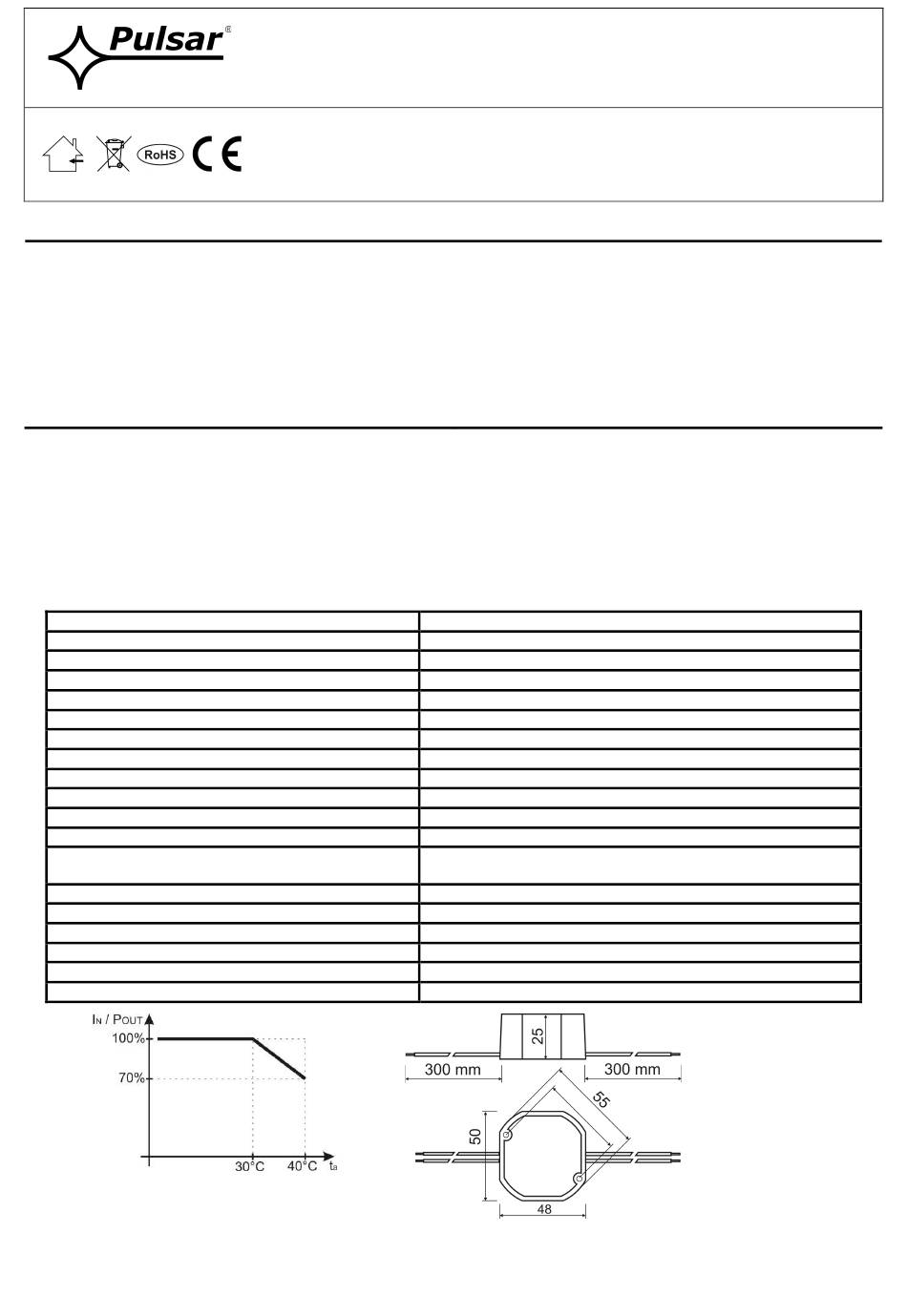

Graph 1.
Relation between output current and ambient
temperature.
Features of the power supply unit:
<30° C
=40° C
PSC13008
PSC 13,8V/0,8A/55MM switch
mode power supply
Edition: 4 from 24.05.2012
Supersedes edition: 3 from 03.12.2011
•
IP 67 case
•
protections:
•
•
•
90 ÷ 264 V AC 50÷60Hz
0,125A@230VAC max.
11W max.
77%
13,8V DC
0,8 A
0,8 A - refer to graph 1.
0,55 A - refer to graph 1.
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
IP67
o o
temperature 0 C÷40 C
relative humidity 20%...90%
50 x 48 x 25 [mm]
0,10kg / 0125kg
II (second)
0,3 m
0,3 m
-20ºC...+60ºC
Fig.1. Dimensions of power supply.
1
SCP short-circuit protection
overvoltage protection (AC input)
overload (OLP)
EN
