Pulsar PSC12015 Quick Start Manual

•
power output 1,5A/12VDC
•
universal AC input voltage range 90÷264V
•
high efficiency 81%
•
standby power <0,3W
•
efficiency level: V

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 12 V DC.
Power supply can be assembled in installation box or fitted with 3mm screws. The unit is protected against short-circuit
and overload.

1.2.Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
IP protection class
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature

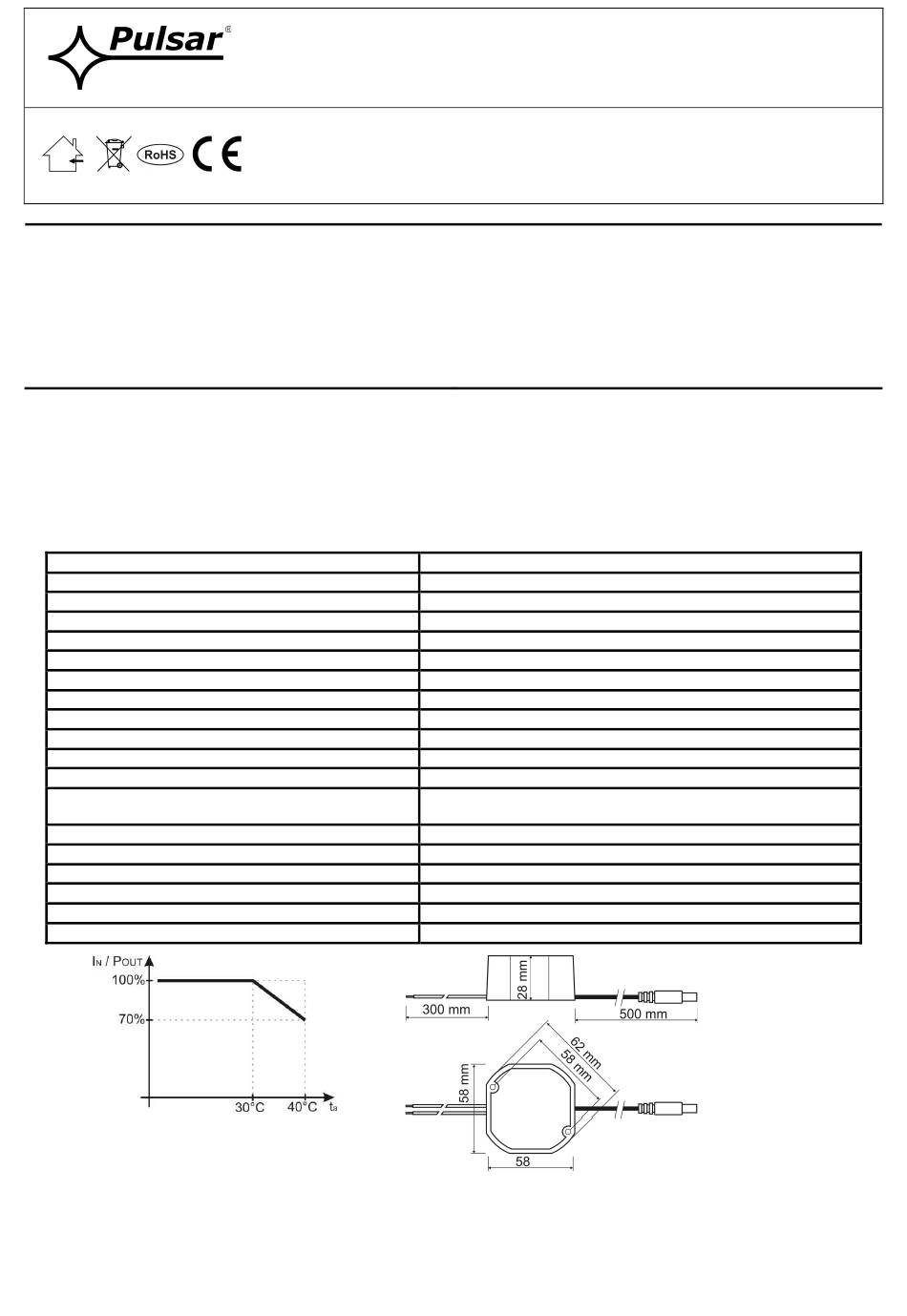

Graph 1.
Relation between output current and ambient
temperature.
Features of the power supply unit:
<30° C
=40° C
PSC12015
PSC 12V/1,5A/62MM switch
mode power supply
Edition: 2 from 24.05.2012
Supersedes edition: 1 from 18.11.2011
•
IP 67 case
•
protections:
•
•
•
90 ÷ 264 V AC 50÷60Hz
0,16A@230VAC max.
18W max.
81%
12V DC
1,5 A
1,5 A - refer to graph 1.
1,0 A - refer to graph 1.
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
IP67
o o
temperature 0 C÷40 C
relative humidity 20%...90%
58 x 58 x 28 [mm]
0,16kg / 0,19kg
II (second)
0,5m + plug DC5,5/2,1 female
0,3 m
-20ºC...+60ºC
Fig.1. Dimensions of power supply.
1
SCP short-circuit protection
overvoltage protection (AC input)
overload (OLP)
EN
