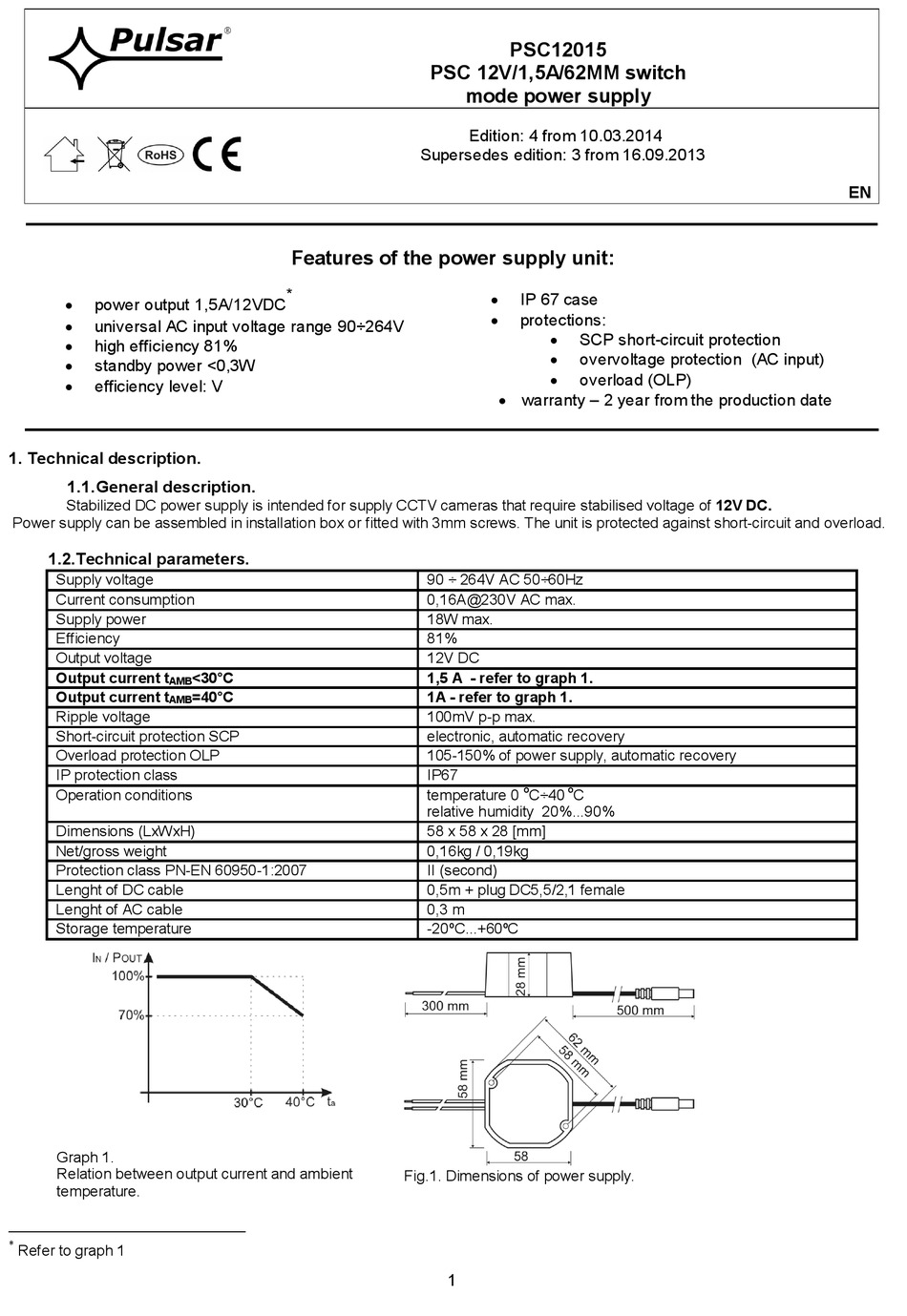

Pulsar PSC12015 Manual

Psc 12v/1,5a/62mm switch mode power supply

Advertisement

Quick Links

power output 1,5A/12VDC
universal AC input voltage range 90÷264V
high efficiency 81%
standby power <0,3W
efficiency level: V

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 12V DC.
Power supply can be assembled in installation box or fitted with 3mm screws. The unit is protected against short-circuit and overload.

1.2.Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
IP protection class
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature
Graph 1.
Relation between output current and ambient
temperature.
*
Refer to graph 1
Features of the power supply unit:
*
<30°C
=40°C
PSC12015
PSC 12V/1,5A/62MM switch
mode power supply
Edition: 4 from 10.03.2014
Supersedes edition: 3 from 16.09.2013
IP 67 case
protections:
 warranty – 2 year from the production date
90 ÷ 264V AC 50÷60Hz
0,16A@230V AC max.
18W max.
81%
12V DC
1,5 A - refer to graph 1.
1A - refer to graph 1.
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
IP67
o
o
temperature 0
C÷40
C
relative humidity 20%...90%
58 x 58 x 28 [mm]
0,16kg / 0,19kg
II (second)
0,5m + plug DC5,5/2,1 female
0,3 m
-20ºC...+60ºC
Fig.1. Dimensions of power supply.
1
SCP short-circuit protection
overvoltage protection (AC input)
overload (OLP)
EN
