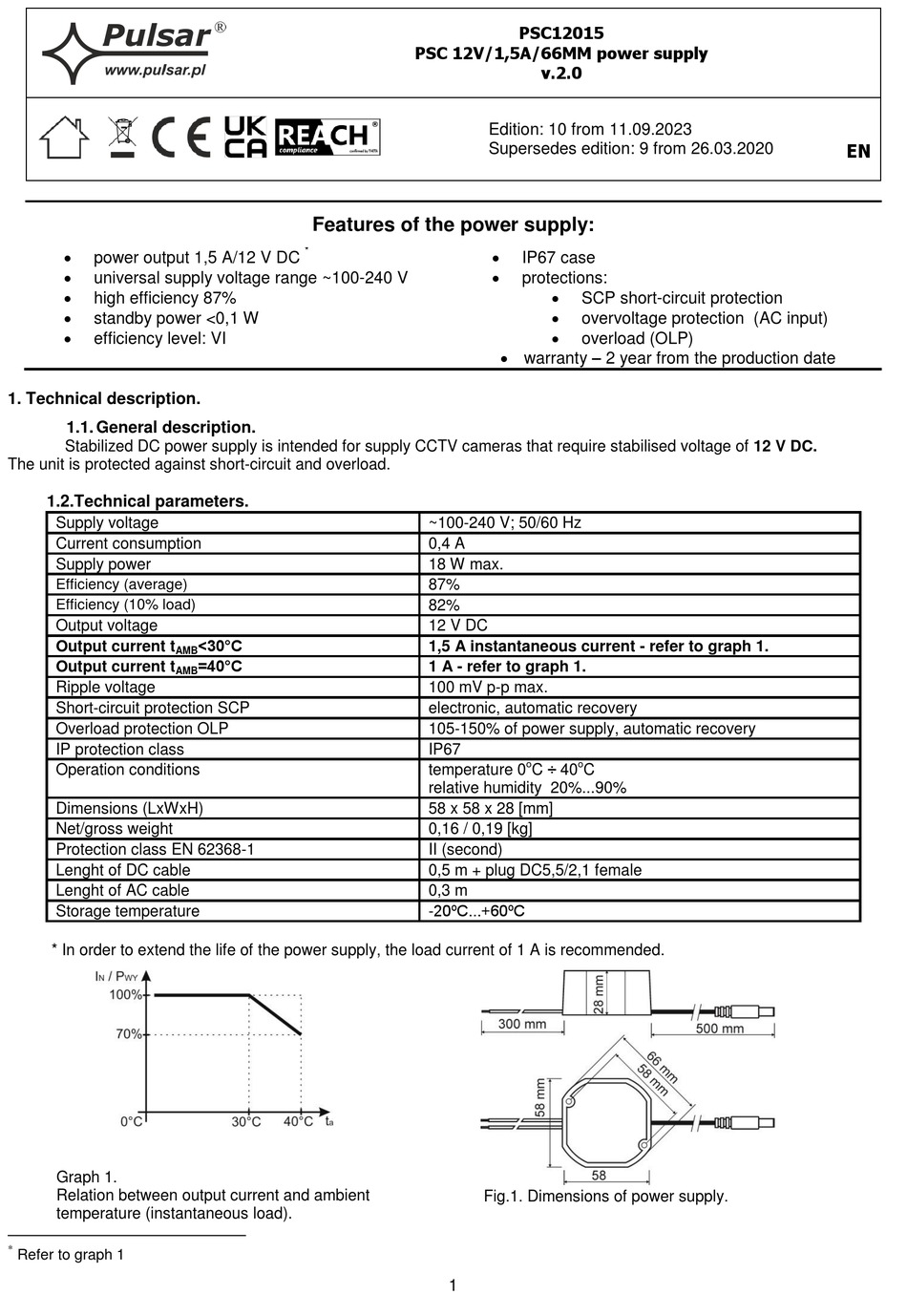

Pulsar PSC12015 Manual


power output 1,5 A/12 V DC

universal supply voltage range ~100-240 V

high efficiency 87%

standby power <0,1 W

efficiency level: VI

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of 12 V DC.
The unit is protected against short-circuit and overload.

1.2.Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency (average)
Efficiency (10% load)
Output voltage
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
IP protection class
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class EN 62368-1
Lenght of DC cable
Lenght of AC cable
Storage temperature
* In order to extend the life of the power supply, the load current of 1 A is recommended.
Graph 1.
Relation between output current and ambient
temperature (instantaneous load).
*
Refer to graph 1
Features of the power supply:
*
<30°C
=40°C
PSC12015
PSC 12V/1,5A/66MM power supply
v.2.0
Edition: 10 from 11.09.2023
Supersedes edition: 9 from 26.03.2020

IP67 case

protections:

SCP short-circuit protection

overvoltage protection (AC input)

overload (OLP)
 warranty – 2 year from the production date
~100-240 V; 50/60 Hz
0,4 A
18 W max.
87%
82%
12 V DC
1,5 A instantaneous current - refer to graph 1.
1 A - refer to graph 1.
100 mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
IP67
o C ÷ 40 o
temperature 0 C
relative humidity 20%...90%
58 x 58 x 28 [mm]
0,16 / 0,19 [kg]
II (second)
0,5 m + plug DC5,5/2,1 female
0,3 m
-20ºC...+60ºC
Fig.1. Dimensions of power supply.
1
EN
