Pulsar PSC12010 Quick Start Manual

1. Technical description.

1.1. General description.

Stabilised DC power supply is intended for cameras installed in CCTV industrial systems.
Power supply cam be assembled in intalations box or fitted with 3mm screws. The unit is protected against short-
circuit and overload.

1.2. Technical parameters.

Dimensions (L x W x H)
Net/Gross weight
230V AC Cable length
DC Cable length
Assembly
Supply voltage
Output power
Output voltage
Maximum output current
Maximum output current
for ta=40°C
Short circuit protection SCP / overload
protection OLP
Operation status indication
Operation conditions
* - output current of the power supply unit depending on ambient temperature. For temperature above 30°C maximum
output current is limited according to graph 1. The power supply operation life time is limited by reliability of the
electrolyte capacitors which strongly depends of an operation temperature. Avoid excessive temperature rise of the
power supply!
Graph 1 Relation between output current and ambient temperature.
2. Installation.

2.1. Requirements.

The adapter shall be mounted by the qualified installer having appropriate (required and necessary for a
given country) permissions and qualifications for connecting (operating) low-voltage installations. The unit shall be
for ta<30°C

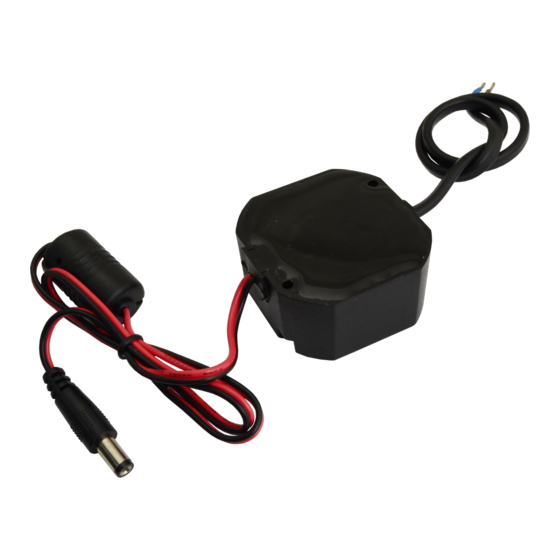

PSC12010 12V/1A/55MM
switch mode power supply
PSC12010
Edition: 1st from 17.12.2010
Supercedes edition: ___________
50 x 48 x 25 mm
0,095 kg/0,125kg
2x screws 3mm
100 V÷ 240 V AC 50/60 Hz
1000mA*
o o
0 C ÷ 40 C , relative humidity 10 ÷ 90 %,
1
120mm
90mm
12W
MAX
12 V DC
700mA*
Yes
No
EN
