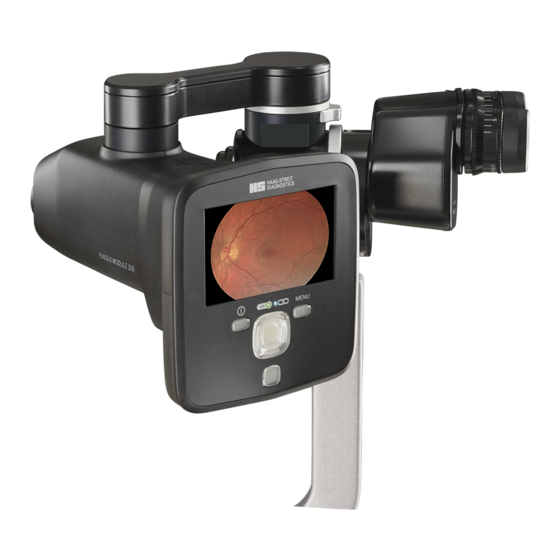

INSTALLATION GUIDE
FUNDUS MODULE 300
Edition 2.00 / 2020 – 08
Tradition and Innovation – Since 1858, visionary thinking and a
fascination with technology have guided us to develop innovative products of
outstanding reliability: Anticipating trends to improve the quality of life.
SERVICE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUNDUS MODULE 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Haag-Streit FUNDUS MODULE 300

Summary of Contents for Haag-Streit FUNDUS MODULE 300

  • Page 1 INSTALLATION GUIDE SERVICE MANUAL FUNDUS MODULE 300 Edition 2.00 / 2020 – 08 Tradition and Innovation – Since 1858, visionary thinking and a fascination with technology have guided us to develop innovative products of outstanding reliability: Anticipating trends to improve the quality of life.
  • Page 2 • ‘Instruction Manual regarding the purpose of use and description of the instrument. • Information on how to unpack and lift the device can be found in the ‘Instruction Manual”. © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 3 5.1.1 Required devices and programs ..........................24 5.1.2 Flashing instructions ..............................24 5.1.3 Formatting instructions ..............................24 Troubleshooting ................................. 25 List of modifications ..............................27 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...

  • Page 4: Safety Instructions

    Portable and mobile RF communications equipment can affect MEDICAL ELECTRICAL SYSTEM. Fundus Module 300 should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, the EQUIPMENT or SYSTEM should be observed to verify normal operation in the configuration in which it will be used.

  • Page 5: Lithium Batteries

    • Continued use of an instrument that has been damaged by incorrect operation can lead to personal injury. The manufacturer cannot accept liability in this case. • Repairs and alterations on this equipment should only be carried out by HAAG-STREIT service technicians or by authorized persons.

  • Page 6: Installation

    The cables for the accessories should be laid to prevent any risk of the examiner tripping over them or their presenting any danger to the patient. © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...

  • Page 7: Firmware Update

    Module 300\02_Software Fig. 6 Make sure the Fundus Module 300 is charged at least for 60%. Remove it from the cradle and it will automatically start updating. © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 8 Fig. 8 Guide the cables underneath the cradle through the cable holders and plug the power supply cable to the mains. Fig. 9 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 9 • Carefully tear off the remainder of the adhesive label along the perforation (10). • Mount the slit lamp and rail cover again. © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 10 Fix the USB cable to the holders. Fig. 13 Connect the right-angled camera USB cable 0.6 m to the base plate. Fig. 14 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 11 • Adapter kit BI 7220669 (BI base plate adapter assembly, USB cable 560mm, adapter screw) • Adapter kit BM 7220670 (BM base plate adapter assembly, USB cable 560mm, adapter screw) © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 12 Fix the USB cable to the holders. Fig. 19 Connect the left angled camera USB cable 0.6 m to the base plate. Fig. 20 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 13 Fig. 22 Align it to the mark and the screw. Fig. 23 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 14 J. Headrest K. Cable headrest/LED illumination/RM02 L. Release module RM02 M. LED illumination N. FUNDUS MODULE 300 Camera O. FUNDUS MODULE 300 Cradle © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 15 Computer cable USB 3.0 (a), power supply cable (b) and cable headrest/LED illumination/RM02 (c) must be fed through in the braided sleeving. Fig. 27 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 16 Fix the loop to the computer cable by using a tie wrap. Fig. 30 Tighten the braided sleeving and fix it with a tie wrap. Fig. 31 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 17 Insert the camera USB cable connector plug in the socket. Fig. 34 Connect the headrest cable with the counterpart on the headrest. Fig. 35 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 18 Pivot the illumination tower and the microscope arm to the side as shown below. Mount the Fundus Module 300 to the pin. Fig. 37 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 19 The pictures will now automatically be transferred to EyeSuite. NOTE! Automatically image import is only available with EyeSuite software version i9.0.2.0 and higher. Fig. 39 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 20 Contents 3.11 Mounting pin The portable version of the Fundus Module 300 can be mounted on Haag-Streit slit lamps but also on many non- Haag-Streit slit lamps. It’s hooked to the 12mm tonometer pin as the R-Type tonometer is. Ask the manufacturer of the third party slit lamp for matching mounting pins.

  • Page 21: Maintenance And Repair

    Clean camera lens and optics ring before each use to avoid contamination. The FUNDUS MODULE 300 is a precision optics instrument that should be handled with care. The FUNDUS MODULE 300 is not intended to be sterilized. Ensure that no moisture penetrates the system during cleaning and disinfection.
  • Page 22 Contents Open the battery cover. Fig. 44 Lift the battery cover off. Fig. 45 Pull the connector out from its socket. Fig. 46 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 23 Place the new battery to the case in the same position. Attach the connector to its socket. Fig. 48 Close the battery cover. Fig. 49 © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 24 5.1.2 Flashing instructions 1. First check the software version of the FUNDUS MODULE 300 from Device menu - Camera SW version. Check that the software version in the release_notes.txt that is delivered with the software package is newer than the version in FUNDUS MODULE 300.

  • Page 25: Troubleshooting

    1. Update the software by following Flashing instruction in the Service Manual. Camera shows question a. If this does not fix the problem, please contact the customer service for marks at the display © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 26 PC. Wait that drivers are installed correctly. If images cannot still be transferred to EyeSuite software, please contact the customer service for RMA. © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 27 Add note about software and installation, chapter 3, p. 6. Changes in the table below picture No. 20, p. 13. 1.00 10..10.2016 First release. © HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. No. 7220676 - Edition 2.00 / 2020 – 08...
  • Page 28 For further questions please contact the HAAG-STREIT Customer Support at: service@haag-streit.com http://www.haag-streit.com/contact/contact-your-distributor.html PRODUCTS CER TIFIED FOR BOTH THE U.S AND CANADIAN MARKETS, TO THE APPLI- CABLE U.S. AND CANADIAN STANDARDS Manufactured by: Distributed by: HAAG-STREIT AG Optomed Oy Gartenstadtstrasse 10...
