INSTRUCTIONS FOR USE

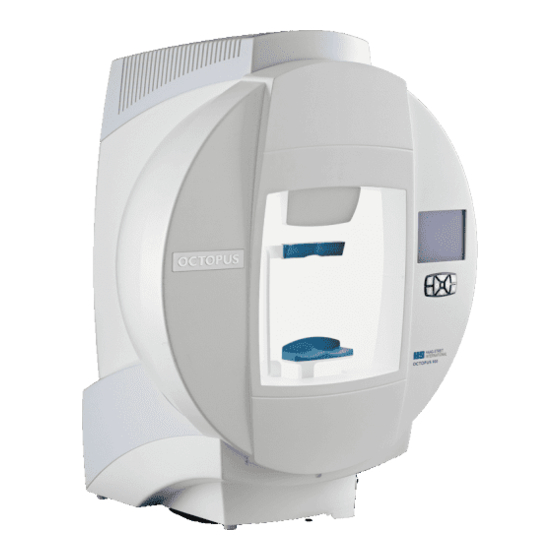

Perimeter
OCTOPUS 900
®
EyeSuite Perimetry
7. Edition / 2016 – 11
DOC. no. 1500 1500.1400209.04000
1
© HAAG-STREIT AG, 3098 Koeniz, Switzerland - HS Doc. no. 1500.7220343.04070 – 7. Edition / 2016 – 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCTOPUS 900 and is the answer not in the manual?

Questions and answers

Karen
May 28, 2025

I have Octopus 900 Eyesuite. How do you print off a test which has been completed?

0

Subscribe to Our Youtube Channel

Related Manuals for Haag-Streit OCTOPUS 900

Summary of Contents for Haag-Streit OCTOPUS 900

  • Page 1: Instructions For Use

    DEUTSCH ENGLISH PORTUGUÊS INSTRUCTIONS FOR USE Perimeter OCTOPUS 900 ® EyeSuite Perimetry 7. Edition / 2016 – 11 DOC. no. 1500 1500.1400209.04000 © HAAG-STREIT AG, 3098 Koeniz, Switzerland - HS Doc. no. 1500.7220343.04070 – 7. Edition / 2016 – 11...
  • Page 2 Purpose of use EyeSuite Perimetry The Octopus 900 perimeter is designed for the examination, analysis and documen- tation of the field of sight, especially the light difference sensitivity and other func- 7. Edition / 2016 – 11 tions of the human eye.

  • Page 3: Table Of Contents

    Octopus 900 ..................12 Infrared illumination ................12 Introduction ..............6 Field of sight ..................12 Device description .................. 6 Octopus 900 control unit / PC .............. 13 System components ................6 Maintenance ............13 Device overview ..................6 LCD display .................... 7 Repairs ....................

  • Page 4: Safety

    The patient must be capable of sitting up straight and keeping his head still. He/she • The Octopus 900 must be placed in a completely darkened room. must be physically and mentally able to cooperate well and is mentally capable of •...

  • Page 5: Disinfection

    • Ethernet isolator, etc.) Haag-Streit products must be used only for the purposes and in the manner des- • The doctor or operator is obliged to inform the patient of the safety in- cribed in the documents distributed with the product.

  • Page 6: Introduction

    Keyboard/mouse (optional) Device overview 1. Top cover for stimulus projector 2. Front cover 3. Housing / cupola 4. Forehead rest (application part) © HAAG-STREIT AG, 3098 Koeniz, Switzerland - HS Doc. no. 1500.7220343.04070 – 7. Edition / 2016 – 11...

  • Page 7: Lcd Display

    Cupola 22. Display brightness setting 23. Position chin rest left, right, up, down The cupola of the Octopus 900 has a diameter of 600 mm and thus conforms to the Goldmann standard. Forehead rest A wide, ergonomically designed forehead rest allows the patient to maintain a com- fortable posture during the examination.

  • Page 8: Chin Rest

    ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 2.10 Chin rest 2.14 Network connection The chin rest (and thus the position of the patient's head) is adjusted with the four The Ethernet port is located at the back of the appliance. Always use a shielded cat- buttons.

  • Page 9: Fixation Control

    Stand in front of the device, grasp the cupola with both hands and lift the device (Figure 7-1), or © HAAG-STREIT AG, 3098 Koeniz, Switzerland - HS Doc. no. 1500.7220343.04070 – 7. Edition / 2016 – 11...

  • Page 10: Connect The Network Cable

    The built-in mains power units operate with the voltages specified in the Technical Data section. It is not necessary to select the voltage on the appliance. If a support stand was also supplied, the Octopus 900 can be connected to the power socket in the support stand's electrical connection box.

  • Page 11: System Variant Ii, Octopus 900 With Pc And Monitor As Control Unit

    System variant II, Octopus 900 with ** If the control unit (notebook, PC) and printer are more than 1.5 m away from the Octopus 900, then the safety isolating transformer can be dispensed with in accor- PC and monitor as control unit dance with EN 60601-1.

  • Page 12: Commissioning

    See chapter 1.3 Humidity: See chapter 1.3 Before connecting the Octopus 900 to a suitable power socket, it must be ensured Functional principle: projection cupola perimeter that the mains switch (24) is set to OFF '0'. The power socket is on the rear of the base of the device.

  • Page 13: Octopus 900 Control Unit / Pc

    PORTUGUÊS Octopus 900 control unit / PC A dust cover is included in the accessories of the Octopus 900. Cover the appliance when the room is being cleaned or if it is not used for longer periods. Always re- A standard PC can be used as control unit for the Perimeter. The control unit soft- move the dust cover before switching on the power.

  • Page 14: Appendix

    E, 'Standards'. • The Octopus 900 is a Class IIa device in accordance with Appendix IX of Directive Technical service life ~ 30,000 hours. 93/42/EEC. By affixing the CE mark we confirm that our device complies with the applicable standards and directives.

  • Page 15: Information And Manufacturer's Declaration Concerning Electromagnetic Compatibility (Emc)

    The operation of other lines or equipment than those listed may lead to higher emissions or may reduce the device's resistance to interfe- The OCTOPUS 900 fulfils the requirements on electromagnetic compatibility ac- rence. cording to EN 60601-1-2:2007 (IEC 3. Edition) + EN 60601-1-2:2015 (IEC 4. Edi- •...

  • Page 16: Immunity (Standard Table 2)
