- Page 1 INSIEME EVOe 25 LN EN USER MANUAL...
- Page 2 LN boiler. Please accept our renewed thanks for your purchase Riello S.p.A. CONFORMITY INSIEME EVOe 25 LN boilers conform to the following directives: − Directive 92/42/EEC on efficiency requirements − Electromagnetic Compatibility Directive 2014/30/EU − Low Voltage Directive 2014/35/EU − Ecodesign Directive 2009/125/CE for energy-related prod- ucts −...
-
Page 3: Table Of Contents
CONTENTS 1 GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 General Safety Information . -
Page 4: General Information
GENERAL INFORMATION GENERAL INFORMATION Precautions The operation of any appliance that uses fuel, electrical power General Safety Information and water demands that a number of fundamental safety pre- cautions be respected: This product must be installed by a legally qualified heat- Do not allow children or infirm persons to operate the sys- ing engineer. -
Page 5: Description Of The Appliance

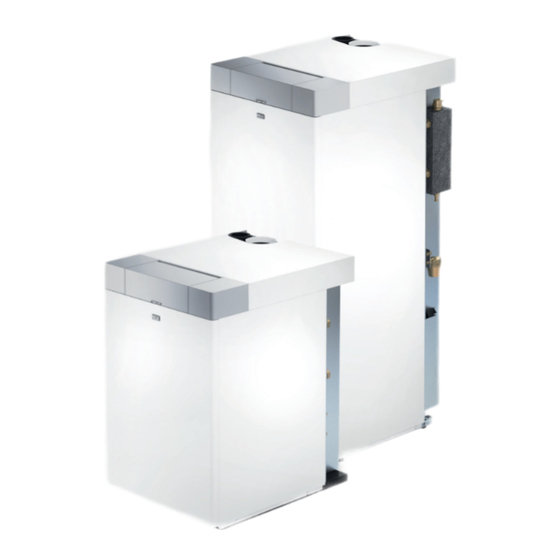

Description of the appliance Safety and control devices The thermal unit INSIEME EVOe 25 LN is a hot water generator for The control panel, apart from managing the functions of the the heating of environments. It can function at low temperature thermal unit INSIEME EVOe 25 LN, allows to highlight any anom- and is oil fuelled. -
Page 6: System Layout
GENERAL INFORMATION System layout INSIEME EVOe 25 LN Safety valve Main switch Central heating flow Central heating return Control panel Heating expansion reservoir Burner Drain cock Pump 10 Flame inspection window Boiler body 12 Serial number plate 13 Exhaust flue duct... -
Page 7: Control Panel
GENERAL INFORMATION Control panel Controls interface Door Light guide Rear light display ENTER/RESET key: it allows accessing the main menu and restoring the operation after a stop due to an anomaly Navigation keys Main switch (located on the equipment rear wall) Light Guide displaying STATUS DESCRIPTION... - Page 8 GENERAL INFORMATION Display visualisation HEAT °C °F OUTSIDE Icon displayed when heating mode is enabled. Blinking when there is a heat demand Icon displayed when DHW mode is enabled. Blinking when there is an DHW Demand Icon displayed when entering the "Installer" menu Icon displayed when the burner of the equipment is on.
-
Page 9: Menu Navigation
GENERAL INFORMATION Menu navigation At start-up or when no key is pressed for more than 4 minutes, the display is in “basic display” mode and provides general infor- mation on the equipment operation. In this mode, keys have the following functions: Button Function "+"... - Page 10 GENERAL INFORMATION MENU selection Enters into "MENU" mode when "MENU/RESET" key is pushed. The figures of the small display indicate "0000" which is the first accessible menu. In this mode, keys have the following functions: Button Function "+" Exits from the menu and cancels a parameter change "-"...
-
Page 11: Navigation Scheme
GENERAL INFORMATION Navigation scheme Modalità “visualizzazione base” °C Modalità “utente” oppure Example of parameter setting change con rmed change canceled... -
Page 12: List Of User Parameters
GENERAL INFORMATION List of user parameters Par. Default set- Menu Description Range ting Main menu Quick adjustment of direct Zone/Zone 1 heating setpoint in 0 and 3 heating modes. 0000 By connecting the zone control accessory, this parameter can See Par. 2103 See Par. - Page 13 GENERAL INFORMATION Par. Default set- Menu Description Range ting 1000 1032 Error code 1000 1112 Zone 1 heating setpoint °C 1000 1113 Zone 2 heating setpoint °C 1000 1114 Zone 3 heating setpoint °C 1000 1056 Total hours of operation in heating mode h x 10 1000 1057...
-
Page 14: Use
2 USE HEAT °C Putting into service °F OUTSIDE Have the Technical Assistance Service start up your INSIEME EVOe 25 LN boiler for the first time. Once this has been done, the boiler can be left to function automatically. Under certain circumstances, such as after long periods of dis- use, the user may need to re-start it without involving the Tech- nical Assistance Service. -
Page 15: Adjustment Of Heating Setpoint
2.1.3 Adjustment of heating setpoint − Press the key“+” or “-” to display the current value of the heating temperature setpoint. °C Once the initialization phase is complete, the display switches to “basic display” mode. In this mode, the main information on the equipment opera- tion is displayed. -
Page 16: Special Functions
2.1.5 Special functions 2.1.6 Ignition failure When a special function is active, a specific message is shown If an ignition or operating anomaly occurs, the thermal unit dis- on the display of the device control interface. play will show a text message (small digit) and a number (large digit), which vary according to the anomaly detected. -
Page 17: Temporary Or Short-Term Shut-Down
Device cleaning and maintenance Warnings The text “AttE” is displayed together with the alert number. The equipment is not locked out, but its functions may be limit- Please remember that THE PERSON RESPONSIBLE FOR SYSTEM MAN- ed (according to the alert). AGEMENT MUST ENSURE THAT PROFESSIONALLY QUALIFIED HEATING Contact your local Technical Assistance Service ENGINEERS UNDERTAKE PERIODIC MAINTENANCE AND COMBUSTION... -
Page 18: Troubleshooting
RECYCLING AND DISPOSAL Troubleshooting FAULT CAUSE SOLUTION − Contact your local Technical Assistance There is a smell of fumes Fumes escaping into the air Service − Contact your local Technical Assistance Air in the circuit Service The generator is at temperature but the heating system is cold −... - Page 20 RIELLO S.p.A. Via Ing. Pilade Riello, 7 37045 - Legnago (VR) www.riello.com The manufacturer strives to continuously improve all products. Appearance, dimensions, technical specifications, standard equipment and accessories are therefore liable to modification without notice.
