XSW-J-04-0003-2023
No.：
User Manual M61
Name：
Version
A/0
Page 1 of 31
Issued on：
28
Aug, 2023
th
Written By:
Rev.：
Apprv.：
Zhang Pei
Liu Jian
Luo Zhenrong

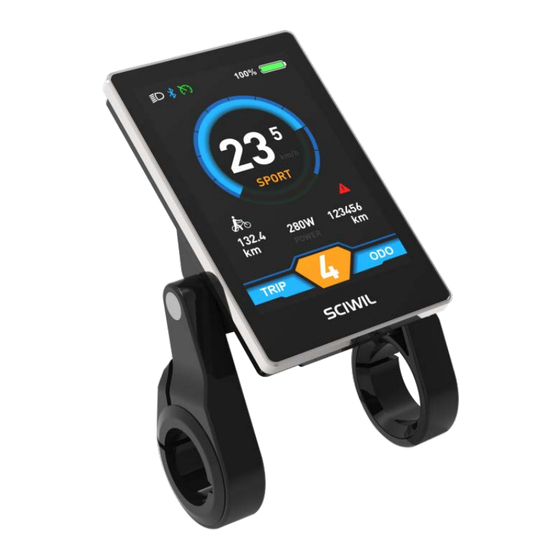

USERS GUIDE
M61
Changzhou Sciwil E-Mobility Technology Co., Ltd.
9
Huashan Road, Changzhou, Jiangsu, China- 213022
th
Fax: +86 519-85602675 Tel: +86 519-85600675
1
Advertisement
Table of Contents
Related Manuals for SCIWIL M61
Summary of Contents for SCIWIL M61
- Page 1 Name： Version Page 1 of 31 Issued on： Aug, 2023 Written By: Rev.： Apprv.： Zhang Pei Liu Jian Luo Zhenrong USERS GUIDE Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675...
-
Page 2: Table Of Contents
Contents 1. Product Introduction .......................... 6 1.1 Product Name and Model ......................6 1.2 Specifications ..........................6 1.3 Functions ............................6 1.4 Exterior Look and Size ........................ 7 1.5 Assembly ............................7 1.6 Cable Connection ..........................8 1.7 Extended Function ........................9 2. - Page 3 4. Settings ...............................15 4.1 Key Operations ..........................15 4.2 System Unit ............................16 4.3 Backlight Brightness .........................16 4.4 Auto-Off ..............................16 4.5 Auto-Lamp On/Off ..........................17 4.6 Battery Indication ..........................17 4.7 Wheel Size ............................18 4.8 Voltage Level ............................19 4.9 Low Battery Level ..........................19 4.10 Boot Password ..........................20 4.11 Advanced Settings ........................
- Page 4 4.24 Information ..........................27 5. Error Code ............................28 5.1 Error Code Definition ......................28 6. Serial Code ............................29 7. Safety Notes ............................ 30 8. Quality and Warranty ......................... 31 8.1 Warranty Term ........................31 8.2 Warranty Exclusions ......................31 9. Version .............................. 31...
-
Page 5: Product Introduction
Congratulations on purchasing your e-bike smart display. Before use, please read through this manual. It is important to acknowledge all the WARNINGS, SAFETY NOTES AND INSTRUCTIONS. This manual will walk you through assembly, settings and operations of Sciwil display products in easy steps, to facilitate operations on your e-bike. -
Page 6: Product Name And Model
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 1.1 Product Name and Model Product Name: E-Bike Display Product Model: M61 1.2 Specifications ① Working Voltage: DC 24V/36V/48V/60V/72V ② Rated Working Current: 12mA ③... -
Page 7: Exterior Look And Size
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 1.3.10 Walk assist mode 1.3.11 Bluetooth communication, support OTA upgrade via mobile phone 1.3.12 Error code indication Simple key pad for easy & clear operation 1.4 Exterior Look and Size... -
Page 8: Cable Connection
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 *Damage due to extra fixing torque is not covered by warranty. 1.5.2 Make sure your e-bike is powered off, then plug the connector on the display to the connector on the controller (bus) to finish standard assembly. -
Page 9: Extended Function
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 1.7 Extended Function: Front Light: Brown Wire (Front Light Power+) White Wire (Front Light GND) 2. Display Guide Interface Introduction 2.1.1 Display Interface... -
Page 10: Setting Interface
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 ① Real-Time Speed (RT SPEED)：current riding speed ② Average Speed (AVG SPEED)：average riding speed ③ Maximum Speed (MAX SPEED)：the max speed during ride ④... -
Page 11: Key Pad Introduction
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 2.2.1 Key Pad: Function Key： ，Plus Key： ，Minus Key ，Light On/Off： ，Info： 3. General Operations 3.1 Switch On/Off Keep the display connected with controller, press and hold Mode 2s to turn on the display. -
Page 12: Assist Level
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 3.2 Assist Level Press Plus or Minus to toggle assist levels. Generally, there are 3/5 levels available. The display shows 1 as default start level, level 0 means no pedal assist output. -
Page 13: Interface Switching
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Walk Assist Mode 3.3 Interface Switching Press Info to toggle display info among total distance (ODO), single-trip distance (TRIP), current voltage, riding time, average speed (AVG), max speed (MAX). -
Page 14: Front Light On/Off
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 3.3.2 Speed Mode Switching (AVG/MAX) Speed mode switching Interface as follows: 3.4 Front Light On/Off For display-controlled front light, press Light On/Off... -
Page 15: 6Km/H Walk Assist Mode
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 3.5 6km/h Walk Assist Mode (Walk Mode) Press and hold Minus for 2s to enter 6km/h walk assist mode, the current speed shows in the Assist Level section. Release Minus to exit walk assist mode. -
Page 16: System Unit
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 save values after 10 seconds. 4.2 System Unit: km/h or mph Press Plus or Minus to choose metric (km/h) or imperial (mph) unit. -
Page 17: Auto-Lamp On/Off
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.5 Auto-Lamp On/Off Press and hold to turn on or off the front light automatically. Digital scenario or analog scenario switch. * The current version only supports digital scenario 4.6 Battery Indication... -
Page 18: Wheel Size
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.7 Wheel Size Press Plus or Minus to set the correct wheel size. Default wheel size: 26inch. Incorrect or inaccurate wheel size may lead to incorrect speed display. -
Page 19: Voltage Level
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.8 Voltage Level Press Plus or Minus to select. Working voltage range: 24~72V. 4.9 Low Battery Level In light of low battery protection volt level, press Plus or Minus to set low-battery... -
Page 20: Boot Password
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.10 Boot Password Press to enter Passoword Settings. First to set is 4-digit boot password (as shown in the pictures below). Then you can set in turn passwords for setting menu, basic... -
Page 21: Advanced Settings
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.11 Advanced Settings Press to enter Advanced Settings. For password protected product, enter the correct passwort and press to enter Advanced Setting. Press Plus or Minus to set values, then press to save and switch to the next item. -
Page 22: Auto-Cruise
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Max. Value: 50A. Default speed limit: 15A. 4.14 Auto-Cruise Press Plus or Minus to turn on or off the auto-cruise function. 4.15 Assist Levels... -
Page 23: Torque Level Range
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.16 Torque Level Range Press Plus or Minus to select signal voltage level for torque sensor: 500mV / 3500mV. 4.17 Poles in Motor Press Plus or Minus to set number of magnetic poles for speed gauge. -
Page 24: Start Mode
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.18 Start Mode Press Plus or Minus to select start mode : Throttle on demand and Throttle after pedal. “Zero” means Throttle on demand, “Non-Zero”means Throttle after pedal. -
Page 25: Pas Sensor Type
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.20 PAS Sensor Type Press Plus or Minus to select PAS Sensor Type: 5 / 8 / 12. This value is the number of magnetic steels on the PAS disc. -
Page 26: Start Strength
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.22 Start Strength Press Plus or Minus to select start sensitivity range: 0~5. This value is the start power output after pedal. -
Page 27: Information
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.24 Information Press to enter the information interface and check info like speed record, distance record and serial numbers, etc. -
Page 28: Error Code
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 5. Error Code The display can report error codes of the electric vehicle. Error codes will be shown when the display detects corresponding error/failure. The interface is as follows:... -
Page 29: Serial Code
Front Light Error Controller Over Current Error Communications Error 6. Serial Code Each Sciwil display product bears a unique Serial Code on the back shell (as shown in the photo below)：192 2 1 210603011 Explanation to the above Serial Code: 192：Customer Code 2：Protocol Code... -
Page 30: Safety Notes
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 7. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY. -
Page 31: Quality And Warranty
Fax: +86 519-85602675 Tel: +86 519-85600675 8. Quality and Warranty 8.1 Warranty Term In compliance with local laws, Sciwil provides limited warranty period covering 24 months after the date of manufacturing (as indicated by the serial number), applies to quality issues during normal operations.
