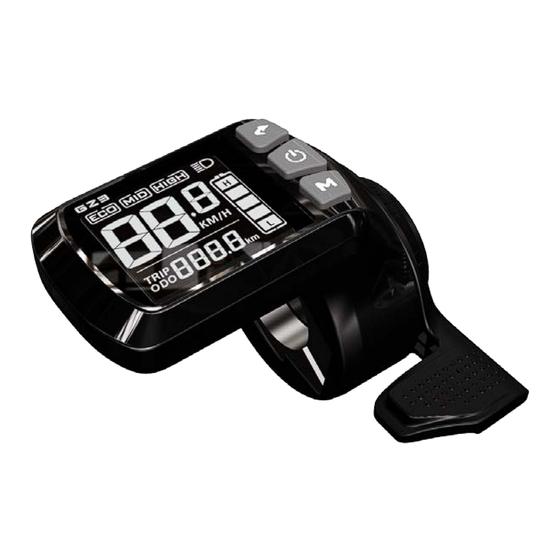

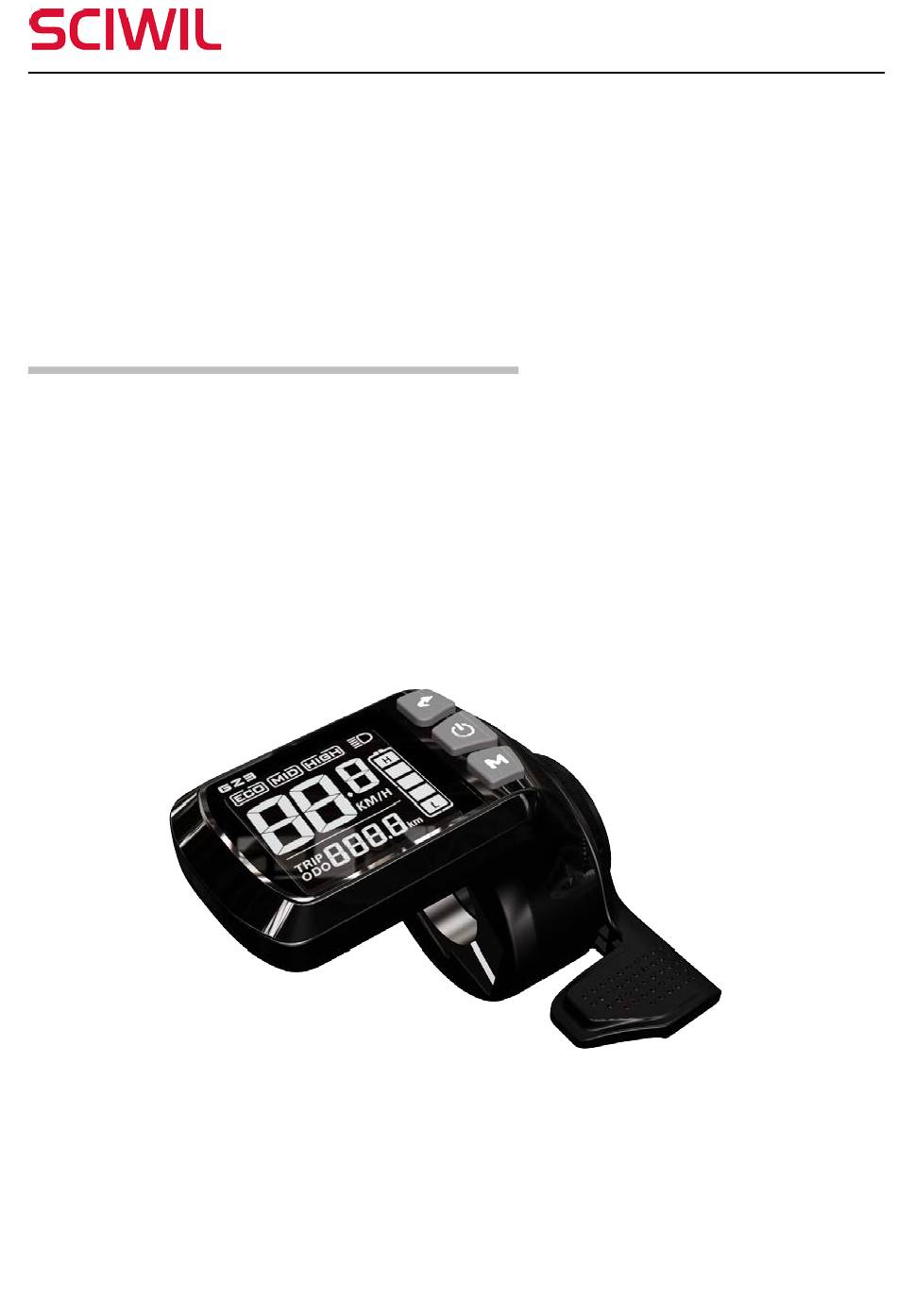

- Page 1 Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 USERS GUIDE GZ3-LCD...
-
Page 2: Table Of Contents
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Contents Introduction ..............................1 1. Safety Notes ............................2 2. Assembly ..............................2 3. Product Size ............................3 4. Working Voltage and Connection ....................3 4.1 Working Voltage ........................ -
Page 3: Introduction
Congratulations on purchasing your e-bike smart display. Before use, please read through this manual. It is important to acknowledge all the WARNINGS, SAFETY NOTES AND INSTRUCTIONS. This manual will walk you through assembly, settings and operations of Sciwil display products in easy steps, to facilitate operations on your e-bike. -
Page 4: Safety Notes
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 1. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY. -
Page 5: Product Size
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 3. Product Size Material Shell Material: ABS Screen Cover Material: High Hardness Acrylic (same hardness as tempered glass). Working Temperature: -20°C~60°C. Product Size... -
Page 6: Working Voltage
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.1 Working Voltage DC 24V-60V compatible (can be set on display)，other voltage level can be customized. 4.2 Connection Connector to Controller Display Cable Outlet Connector... -
Page 7: Control And Setting Items
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 5.2 Control and Setting Items Power Switch, Light Switch, Walk Mode, Real-time Cruise, Wheel Size Setting, PAS Level PWM Setting, Speed Limit Setting, Auto-Off Setting. - Page 8 Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 P04: Auto-Off Time (0: never, other value means time interval for display auto-off) Unit: minute P05: Pedal Assist Level 0/3 Gear Mode: Gear 1-2V, Gear 2-3V, Gear 3-4V 1/5 Gear Mode: Gear 1-2V, Gear 2-2.5V, Gear 3-4V, Gear 4-3.5V, Gear 5-4V...
-
Page 9: Communications Protocol
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 P14: Current Limit Value (12A by default; Range: 1-20A) P15: Unspecified P16: ODO Clearance Press and hold the up key for 5 seconds and ODO distance will be cleared. - Page 10 Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 ② During riding, press Mode to switch items displayed in versatile area. Note：Press and hold of a single key is mainly used for switch mode/on/off status.
-
Page 11: Error Code
Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Sensor Type, Controller Current Limit, ODO clearance, etc. - In Settings, press On/Off to switch the above setting items; press Level/Toggle to set parameter for the current item. The parameter will blink after set, press On/Off to the next item and the previous parameter will be automatically saved. -
Page 12: Serial Code
Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 5.8 Serial Code Each Sciwil display product bears a unique Serial Code on the back shell (as shown in the photo below)：192 2 1 210603011 Explanation to the above Serial Code: 192：Customer Code... -
Page 13: Version
Warranty Exclusions: 1. Sciwil products that have been modified or repaired without authorization 2. Sciwil products that have been used for rental, commercial applications, or competition 3. Damage resulting from causes other than defects in material or manufacturing...
