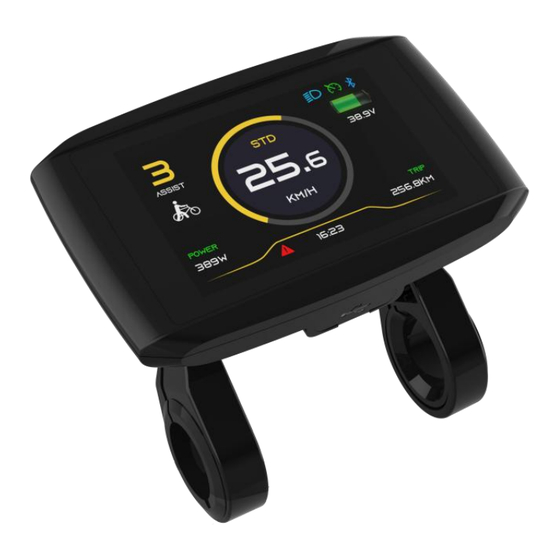

USERS GUIDE
K60-A
No.：
Name：
th
Version
30
Aug, 2023
Rev.：
Zhang Pei
XSW-J-04-0004-2023
User Manual K60-A
A/0
Liu Jian
Changzhou Sciwil E-Mobility Technology Co., Ltd.
th
9
Huashan Road, Changzhou, Jiangsu, China- 213022
Fax: +86 519-85602675 Tel: +86 519-85600675
1
Page 1 of 31
Apprv.：
Luo Zhenrong

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K60-A and is the answer not in the manual?

Questions and answers

Related Manuals for SCIWIL K60-A

Summary of Contents for SCIWIL K60-A

  • Page 1 Issued on： Version Page 1 of 31 Aug, 2023 Written By: Rev.： Apprv.： Zhang Pei Liu Jian Luo Zhenrong USERS GUIDE K60-A Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675...

  • Page 2: Table Of Contents

    Contents 1. Product Introduction .......................... 6 1.1 Product Name and Model ......................6 1.2 Specifications ..........................6 1.3 Functions ............................6 1.4 Exterior Look and Size ........................ 7 1.5 Assembly ............................7 1.6 Cable Connection ..........................8 1.7 Extended Function ........................9 2.
  • Page 3 4. Settings ...............................14 4.1 System Unit ............................14 4.2 Backlight Brightness .........................15 4.3 Auto-Off ..............................15 4.4 Auto-Lamp On/Off ..........................15 4.5 Battery Indication ..........................16 4.6 Wheel Size ............................16 4.7 Voltage Level ............................17 4.8 Low Battery Level ..........................17 4.9 Boot Password ..........................17 4.10 Advanced Settings ........................
  • Page 4 5. Error Code ............................23 5.1 Error Code Definition ......................23 6. Serial Code ............................24 7. Safety Notes ............................ 25 8. Quality and Warranty ........................ 26 8.1 Warranty Term ........................26 8.2 Warranty Exclusions ......................26 Version ............................. 26...

  • Page 5: Product Introduction

    Congratulations on purchasing your e-bike smart display. Before use, please read through this manual. It is important to acknowledge all the WARNINGS, SAFETY NOTES AND INSTRUCTIONS. This manual will walk you through assembly, settings and operations of Sciwil display products in easy steps, to facilitate operations on your e-bike.

  • Page 6: Product Name And Model

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 1.1 Product Name and Model Product Name: E-Bike Display Product Model: K60-A 1.2 Specifications Working Voltage: DC 24V/36V/48V/60V/72V Rated Working Current: 12mA Leakage current: <1uA...

  • Page 7: Exterior Look And Size

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 1.3.10 Walk assist mode 1.3.11 Bluetooth communication, support OTA upgrade via mobile phone 1.3.12 Error code indication Simple key pad for easy & clear operation 1.4 Exterior Look and Size...

  • Page 8: Cable Connection

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 *Damage due to extra fixing torque is not covered by warranty. 1.5.2 Make sure your e-bike is powered off, then plug the connector on the display to the connector on the controller (bus) to finish standard assembly.

  • Page 9: Extended Function

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 1.7 Extended Function: Front Light: Brown Wire (Front Light Power+) White Wire (Front Light GND) 2. Display Guide Interface Introduction 2.1.1 Display Interface 2.1.2...

  • Page 10: Setting Interface

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Maximum Speed (MAX SPEED)：the max speed during ride  Total Travel Distance (ODO)：total riding distance, max value 99999.9  Assist Level and Walk Mode：Assist Level 3/5/9 levels, can be changed.

  • Page 11: Key Pad Introduction

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 2.2.1 Key Pad: Function Key： ，Plus Key： ，Minus Key ，Light On/Off： ，Info： 3. General Operations 3.1 Switch On/Off Keep the display connected with controller, press and hold Mode 2s to turn on the display.

  • Page 12: Interface Switching

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Level3 Level4 Level5 Walk Assist Mode 3.3 Interface Switching Press Info to toggle display info among total distance (ODO), single-trip distance (TRIP), current voltage, riding time, average speed (AVG), max speed (MAX).

  • Page 13: Front Light On/Off

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 3.4 Front Light On/Off For display-controlled front light, press Light On/Off and the front light will be on and the dipped beam icon will be shown in the riding interface.

  • Page 14: Settings

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4. Settings Introduction of Setting Operations 1. Press and hold Plus and Minus together for 2s to enter the settings interface. You may set Working Voltage, Wheel Size (inch), Magnetic Steel Number, Speed Limit ect.

  • Page 15: Backlight Brightness

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.2 Backlight Brightness ‫׀ .׀׀׀׀׀~׀‬ ‫׀׀׀׀׀‬ Press Plus or Minus to choose among is darkest, is brightest. 4.3 Auto-Off Press Plus or Minus to select 1~60min as auto-off time, which means the display will turn off automatically if no operations detected within this period of time.

  • Page 16: Battery Indication

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 Digital scenario or analog scenario switch. * The current version only supports digital scenario 4.5 Battery Indication Press Plus or Minus to select among Voltage/Percentage/Off. Battery indicator on the display will toggle among voltage value, battery percentage left and none.

  • Page 17: Voltage Level

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.7 Voltage Level Press Plus or Minus to select. Working voltage range: 24~72V. 4.8 Low Battery Level In light of low battery protection volt level, press Plus or Minus to set low-battery protection level for the vehicle.

  • Page 18: Advanced Settings

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.10 Advanced Settings Press to enter Advanced Settings. For password protected product, enter the correct passwort and press to enter Advanced Setting. Press Plus or Minus to set values, then press to save and switch to the next item.

  • Page 19: Controller Current Limit

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.12 Current Limit Press Plus or Minus to set values for current limit. Min. Value: 6A, Max. Value: 50A. Default speed limit: 15A.

  • Page 20: Torque Level Range

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.15 Torque Level Range Press Plus or Minus to select signal voltage level for torque sensor: 500mV / 3500mV. 4.16 Poles in Motor Press Plus or Minus to set number of magnetic poles for speed gauge.

  • Page 21: Drive Mode

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.18 Drive Mode Press Plus or Minus to select drive mode: 0 / 1 / 2. 0 means pedal assist only, 1 means throttle only, 2 means both modes available.

  • Page 22: Start Strength

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 4.21 Start Strength Press Plus or Minus to select start sensitivity range: 0~5. This value is the start power output after pedal.

  • Page 23: Error Code

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 5. Error Code The display can report error codes of the electric vehicle. Error codes will be shown when the display detects corresponding error/failure. The interface is as follows:...

  • Page 24: Serial Code

    Front Light Error Controller Over Current Error Communications Error 6. Serial Code Each Sciwil display product bears a unique Serial Code on the back shell (as shown in the photo below)：192 2 1 210603011 Explanation to the above Serial Code: 192：Customer Code 2：Protocol Code...

  • Page 25: Safety Notes

    Changzhou Sciwil E-Mobility Technology Co., Ltd. Huashan Road, Changzhou, Jiangsu, China- 213022 Fax: +86 519-85602675 Tel: +86 519-85600675 7. Safety Notes PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE YOUR E-BIKE IS POWERED ON. AVOID CLASHES OR BUMPS TO THE DISPLAY.

  • Page 26: Quality And Warranty

    Fax: +86 519-85602675 Tel: +86 519-85600675 8. Quality and Warranty 8.1 Warranty Term In compliance with local laws, Sciwil provides limited warranty period covering 24 months after the date of manufacturing (as indicated by the serial number), applies to quality issues during normal operations.
