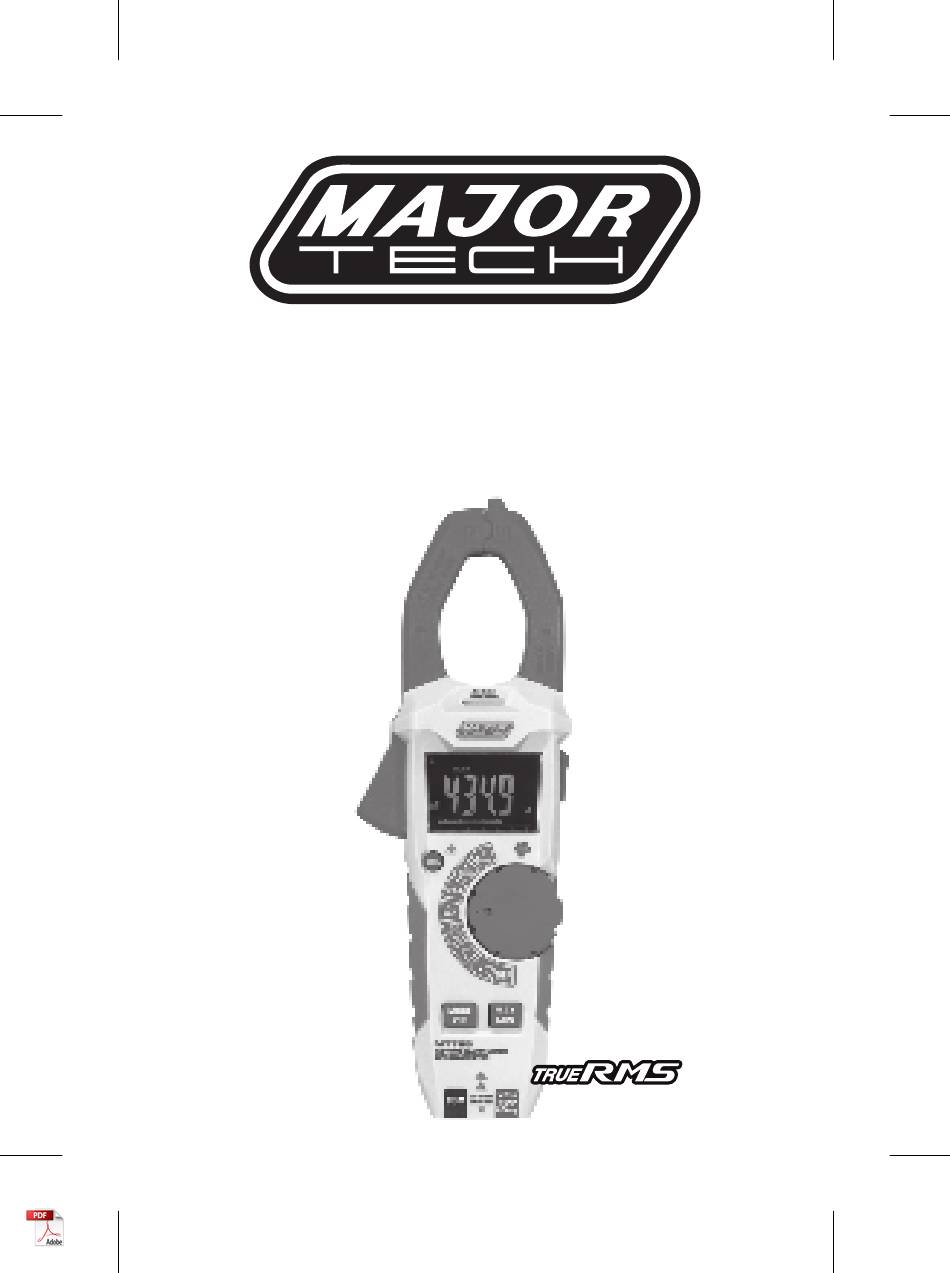

INSTRUCTION MANUAL
MT765
AC TRMS CLAMP METER
WITH IR THERMOMETER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TrueRMS MT765 and is the answer not in the manual?

Questions and answers

Related Manuals for Major tech TrueRMS MT765

Summary of Contents for Major tech TrueRMS MT765

  • Page 1 INSTRUCTION MANUAL MT765 AC TRMS CLAMP METER WITH IR THERMOMETER...

  • Page 3: Table Of Contents

    Contents Page no 1. Safety ..................... 4 1.1. International Safety Symbols............4 1.2. Safety Notes................4 1.3. Warnings ................4 1.4. Cautions ................. 4 2. Meter Description................5 3. Display Icons..................5 4. Specifications .................. 5 4.1. AC Current (50/60Hz)...............5 4.2. AC Voltage................5 4.3. DC Voltage................6 4.4.

  • Page 4: Safety

    1. SAFETY 1.1. lnternational Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present. Double insulation.

  • Page 5: Meter Description

    2. METER DESCRIPTION 2.1. Meter Description 1 - Current clamp 8 - MAX/MIN button 9 - Rotary Function 2 - Clamp trigger 3 - LCD display switch 4 - Relative / IR Laser 10 - Data Hold /Flashlight button button 5 - MODE/VFD button 11 - Non-contact AC voltage indicator light...

  • Page 6: Dc Voltage

    4.3. DC Voltage Range & Resolution Accuracy (% of reading + digits) 600.0mV ±(0.8% + 4 digits) 6.000V 60.00V ±(1.2% + 5 digits) 600.0V 1000V 4.4. Resistance Range & Resolution Accuracy (% of reading + digits) 600.0Ω ±(1.5% + 6 digits) 6.000KΩ...

  • Page 7: Temp (Type-K)

    4.8. Temp (type-K) (probe accuracy not included) Range & Resolution Accuracy (% of reading + digits) -20.0 to 1000°C ±(3%rdg + 3°C) -4.0 to1800.0°F ±(3%rdg + 6°F) 4.9. IR Temp (D:S=4:1) Range & Resolution Accuracy (% of reading + digits) -30.0 to 350.0°C ±(2%rdg + 2°C) -22.0 to 662.0°F...

  • Page 8: Operation

    4.10. General Specifications (continued) Basic Functions Range Storage Temperature -20 to 60°C (-4 to 140°F) Operating Humidity Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F) Storage Humidity <80% Operating Altitude 2000 meters (7000ft.) maximum. Over voltage Category III 1000V, Category IV 600V.

  • Page 9: Resistance Measurements

    5.3. Resistance Measurements 1. Insert the black test lead into the negative COM terminal and the red test lead into the positive V/Ω terminal. 2. Set the function switch to the Ω position. 3. Press the MODE button until "Ω" appears in the display. 4.

  • Page 10: K-Temperature Measurements

    5.7. K-Temperature Measurements WARNING: To avoid electric shock, disconnect both test probes from any source of voltage before making a temperature measurement. 1. Set the function switch to K-TEMP. 2. Insert the Temperature Probe into the negative (COM) and the V jacks, making sure to observe the correct polarity.

  • Page 11: Mode Button

    5.10. Mode Button To select Diode/Continuity/CAP,VAC/Hz/%, °C/°F. 5.11. Data Hold/Flashlight Button To freeze the LCD meter reading, press the data hold button. The data hold button is located on the right side of the meter (top button). While data hold is active, the HOLD display icon appears on the LCD. Press the data hold button again to return to normal operation.
  • Page 12 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
