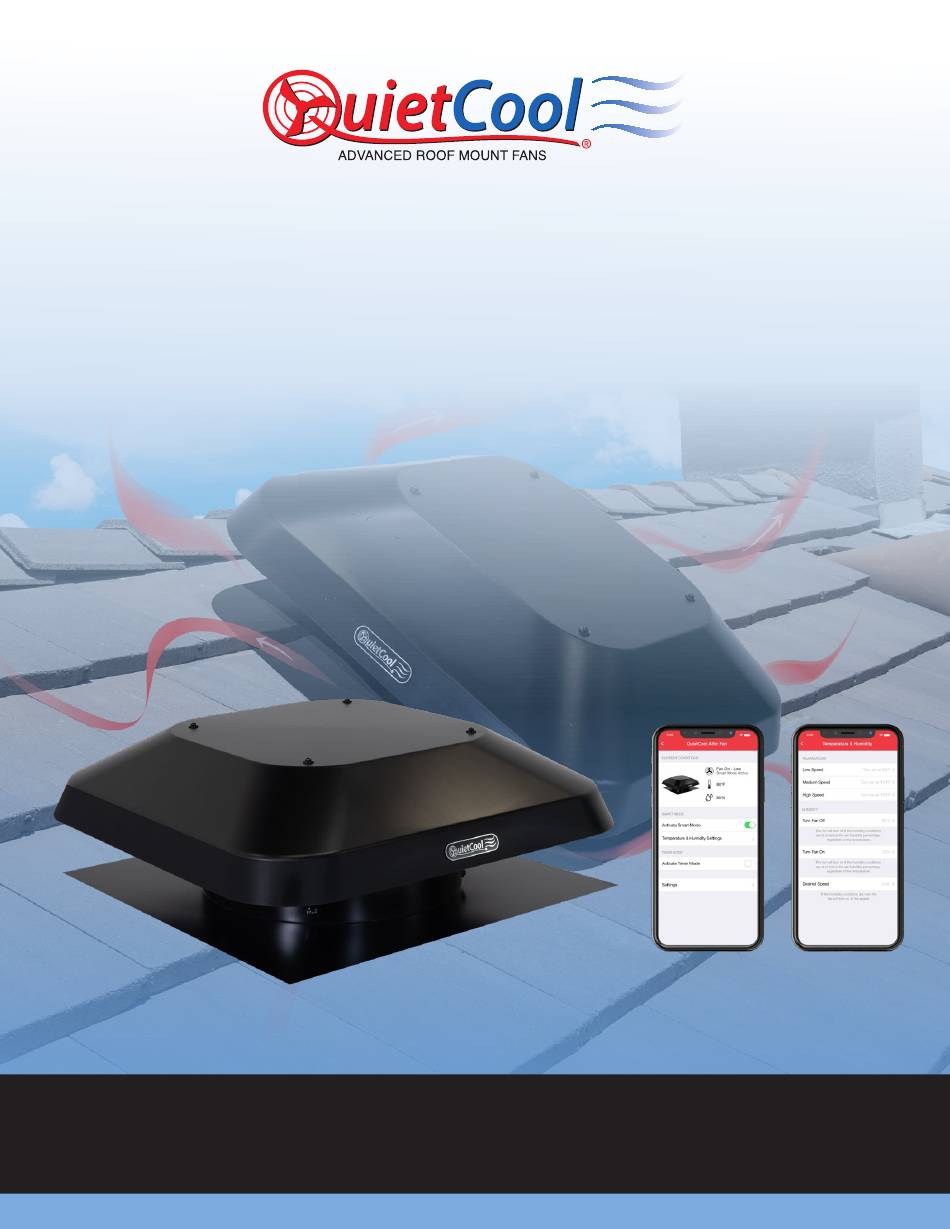

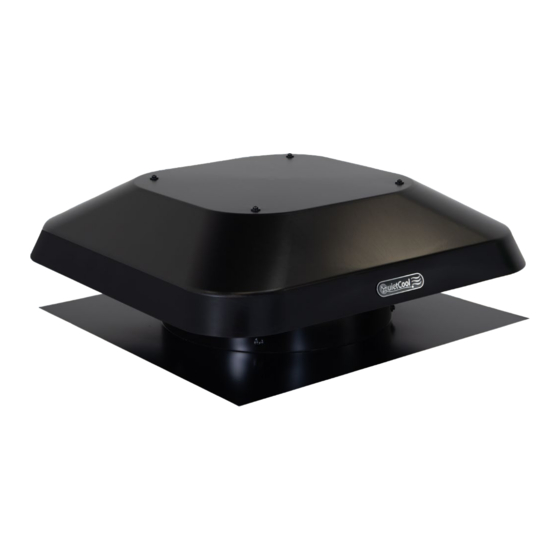

- Page 1 OWNER’S GUIDE SMART ATTIC ROOF MOUNT FAN AFR SMT PRO-1.3 AFR SMT PRO-2.0 AFR SMT ES-2.0 DO NOT THROW AWAY! SERIAL NUMBER FOR FAN IS LOCATED ON THE BACK COVER OF THE OWNER’S GUIDE. LEAVE WITH HOMEOWNER...
-
Page 2: Table Of Contents
3. WIRING ..........10 3.1 Two Speed Wiring - AFR SMT PRO-1.3 & 2.0 ....10 3.2 Three Speed Wiring - AFR SMT ES-2.0 . -
Page 3: System Overview
CONGRATULATIONS on the purchase of your new QuietCool Smart Attic Fan! QuietCool Attic Fans are the best in the business. New for 2023, our Smart Line of roof mount attic fans have been completely re-designed! With a new hood design, integrated wildlife guard, and... -
Page 4: System Venting Requirements
Venting plays a very significant role in the performance of QuietCool fans. QuietCool recommends a mini- mum of 1 SQ. FT. of venting for every 750 CFM in the QuietCool system. If an attic has at least 1:750 attic venting, the QuietCool system will operate efficiently and effectively. If an attic has less than 1:750 attic venting, the system may not operate as efficiently, or effectively, as it could with 1:750 attic venting. -
Page 5: Getting Started - Important - Read Before Install
CHOOSING THE RIGHT LOCATION Choose a location to install your QuietCool roof mounted fan that allows for balanced airflow throughout the attic space. We always recommend the fan to be installed centrally located on the roof three feet below the ridge line. -
Page 6: Installation
This installation utilizes the included Primary Flashing of the AFR. For installing the AFR on a tile or cement roof, please skip to page 8. 1. Determine in which area you would like to install your QuietCool AFR. Figure 2.1B 2. - Page 7 Figure 2.1G 10. Using a minimum of 8 roofing nails, nail the fan to the roof through the primary flashing, securing the fan to the roof. To prevent leaking, be sure to apply weatherproof sealant on the nail heads. (see Figure 2.1G) Figure 2.1H 11.
-
Page 8: Installing Afr Model Fans - Tile/Cement Roofs
NOTE: When applying weatherproof sealant, be sure to use a generous amount to create a watertight seal. 1. Determine in which area you would like to install your QuietCool AFR. Figure 2.2B 2. From inside the attic, find the center point between the two roof rafters and mark it as the center of the fan hole. - Page 9 Be sure to use a generous amount of weatherproof sealant to create a watertight seal. 13. Using the QuietCool Secondary Flashing accessory (part number FLA-SEC-3743), gently slide the flashing over the fan housing and hood mounting tabs. (see Figure 2.2H) Figure 2.2I...
-
Page 10: Wiring
If you would like to hard-wire the fan, or it is required by your local building codes, please follow the wiring instructions below. TWO SPEED WIRING - (AFR SMT PRO-1.3 & AFR SMT PRO-2.0) 1. Using a wire nut, connect the black wire from the power source to the black wire from the Hub. -
Page 11: Three Speed Wiring - Afr Smt Es-2.0
THREE SPEED WIRING - (AFR SMT ES-2.0) 1. Using a wire nut, connect the black wire from the power cord and the black wire from the fan to the black wire from the Hub. 2. Connect the white wire from the power cord and the white wire on the fan to the white wire from the Hub. -
Page 12: Smart Control Hub - Led Indicators
The indicator will be lit up solid when a device is • connected via Bluetooth. The indicator will not be lit when no pairing • operations are being made or no device is Bluetooth Speed connected. POWER Temp and Hum Test Pair Timer 1-888-QUIETCOOL... -
Page 13: System Operating Instructions
4. SYSTEM OPERATING INSTRUCTIONS DOWNLOADING THE QUIETCOOL SMART CONTROL APP Download the QuietCool Smart Control App onto your iOS or Android device. Scan the QR code above or visit QuietCoolSystems.com/smart-control/ and click the link to download the app to your device. - Page 14 Fan Model, enter the Serial Number and adjust the Climate Settings & Presets. You can also enter Pair Mode for remote pairing of devices, perform a Firmware Update, as well as reset all settings to factory defaults. 1-888-QUIETCOOL...
- Page 15 SETTING UP YOUR FAN Once your attic fan has power, open up the QuietCool Smart Control app. You will be taken to the Home Page. You should see your attic fan show up in the list of available fans. A message indicates that setup is required. Press and hold the Pair button on the Hub until the LED indicator begins to blink.
- Page 16 These settings will be saved into the memory of the Hub meaning all settings will sync between any additional devices you pair to the Hub. Click Done to complete Fan Setup. You can always access these settings again from the Settings option on the Fan Control Page. 1-888-QUIETCOOL...
- Page 17 FAN CONTROL PAGE On the Fan Control page, you will see the current fan status, the current attic temperature, as well as the current attic humidity level. You also have the option to Activate Smart Mode or Activate Timer Mode. You can also go into the Fan Settings page and adjust the settings that you setup in the first step.
- Page 18 Turn Fan On humidity level. If the humidity level in the attic is above the Turn Fan On humidity parameter but below the Turn Fan Off humidity parameter, the fan will turn on at the Desired Speed. 1-888-QUIETCOOL...
- Page 19 PAIR MODE Pair Mode is a feature that was designed to prevent users from having to get into the attic to access the physical Hub in order to pair additional devices. NOTE: In order to use this feature, you must have one device that is already paired to the Fan Hub.
- Page 20 Once back in the app, your Wi-Fi network name will be pre-filled. Type in your Wi-Fi password and tap Save. The firmware update will now begin. Once completed, an alert will popup indicating that the download was successful and your Hub will reboot. Your Hub is now updated. 1-888-QUIETCOOL...
-
Page 21: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS WHAT PROTOCOL DOES THIS CONTROL USE? This control operates over Bluetooth to connect to your phone. The control uses Wi-Fi for firmware updates. WILL MY NEIGHBOR BE ABLE TO CONTROL MY FAN IF THEY HAVE THE SAME SET UP AS ME? No. -
Page 22: Warranty
No subsequent purchaser of the unit or of a home in which it is installed is entitled to any of the benefits of this warranty. The QuietCool Product that you have purchased has a limited warranty from the date of purchase against defects in workmanship and materials. - Page 23 The electrical motor is to be used solely as a direct replacement for a motor of the same model in QC Manufacturing, Inc., QuietCool products. Using the motor in any other product could result in electrical shock and/or fire, which may cause property damage, serious injury or even death.
- Page 24 Rev. 8/30/23 FAN SERIAL NUMBER INFORMATION RETAIN FOR YOUR RECORDS. SERIAL NUMBER IS REQUIRED FOR WARRANTY PURPOSES. 1-888-QUIETCOOL | WWW.QUIETCOOLSYSTEMS.COM...
