StarTech.com 2TBT3-PCIE-ENCLOSURE Quick Start Manual

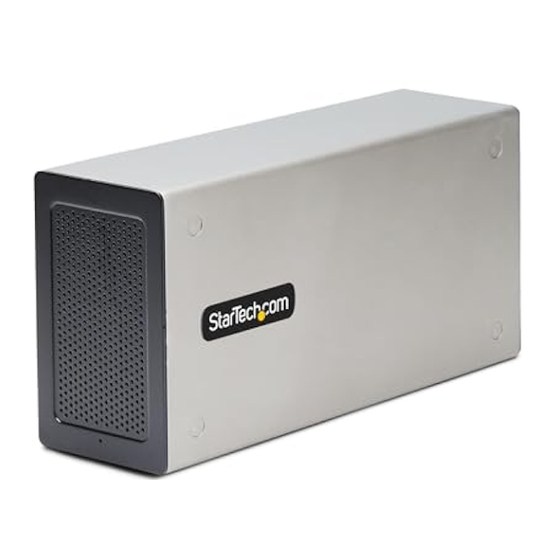

Thunderbolt 3 Dual PCIe 3.0 Expansion Chassis - 8K 60Hz DisplayPort

Product ID

2TBT3-PCIE-ENCLOSURE

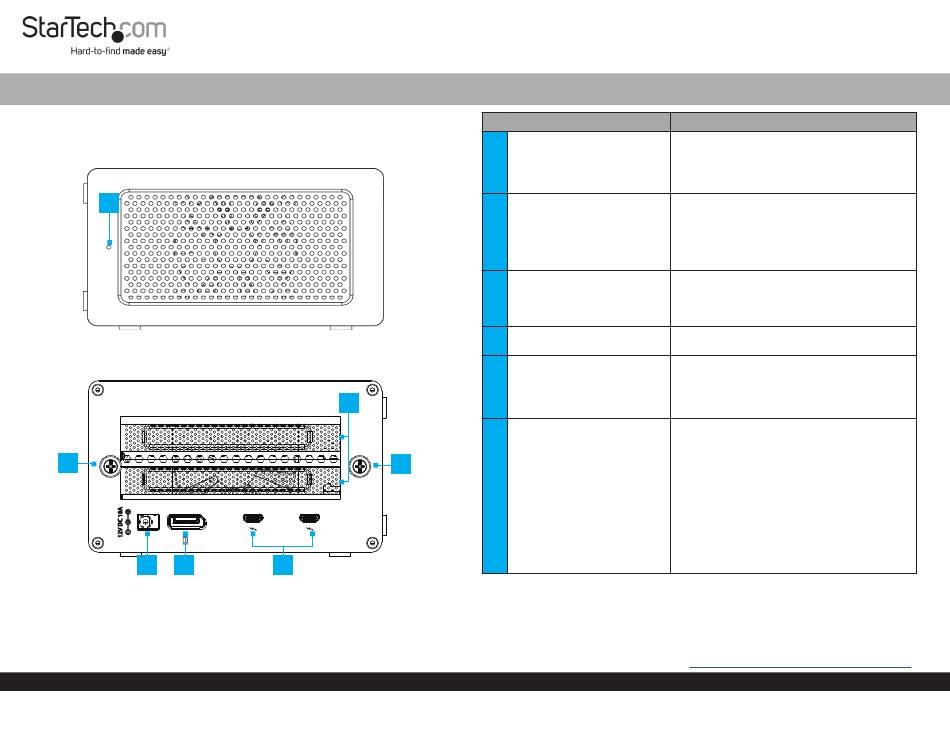

Product Diagram (Side A)

1
(Side B)
3
4 5

Package Contents

TB3 PCIe Expansion Chassis x1
•
Power Adapter x1
•
Quick-Start Guide x1
•
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
3
6
3.3ft (1m) Thunderbolt Host Cable x1
•
Footpad Set x1
•
Component
1
Power LED Indicator
2
2x PCI-Express (PCIe) Expansion Slots
3
2x Thumb Screws
4
12V DC Power Port
5
DisplayPort Video Output Port
6
2x Thunderbolt 3 Ports (USB-C)

Requirements

Thunderbolt 3 Enabled Host Computer
•
Phillips Type Screwdriver
•
For the latest drivers, manuals, product information, technical specifications, and
declarations of conformance, please visit:
Quick-Start Guide
Function
• Indicates if the TB3 Expansion Chassis is Receiving
Power from the 12V DC Power Port
• Solid Blue - Receiving Power
• Off - Not Receiving Power
• Install up to two PCIe Cards
• Supports half-length single-slot PCIe cards with full
profile brackets
• PCIe 3.0 x4 (2700 MB/s)
• PCIe x16 Card Sizes Supported at PCIe x4 Speeds
• Loosen Counter-Clockwise to Release the PCIe Card
Drawer from the Enclosure
• Tighten Clockwise to Secure the PCIe Card Drawer into
the Enclosure
• Connect to the Included Power Adapter from an AC
Power Source
• Connect to a DisplayPort Display
• DisplayPort 1.4
• Up to 8K (7680 × 4320) 60Hz / 4K (3840 X 2160)
144Hz Resolutions
• Connect to a an Upstream Thunderbolt Host Device or a
Downstream Thunderbolt Peripheral/Display
• Thunderbolt 3
• 40Gbps Thunderbolt Communication
• 10Gbps USB 3.2 Gen1 Communication
• Up to 6K (6144 × 3160) 60Hz / 5K (5120 × 2880)
60Hz Resolutions
• DisplayPort 1.4 Alt Mode
• Up to 8K (7680 × 4320) 60Hz / 4K (3840 X 2160)
144Hz Resolutions
Up to two PCIe Card(s)
•
www.StarTech.com/2TBT3-PCIE-ENCLOSURE
Manual Revision: May 5, 2023 11:58 AM
