Install the Bulldog Valve Robot,
K
Continued

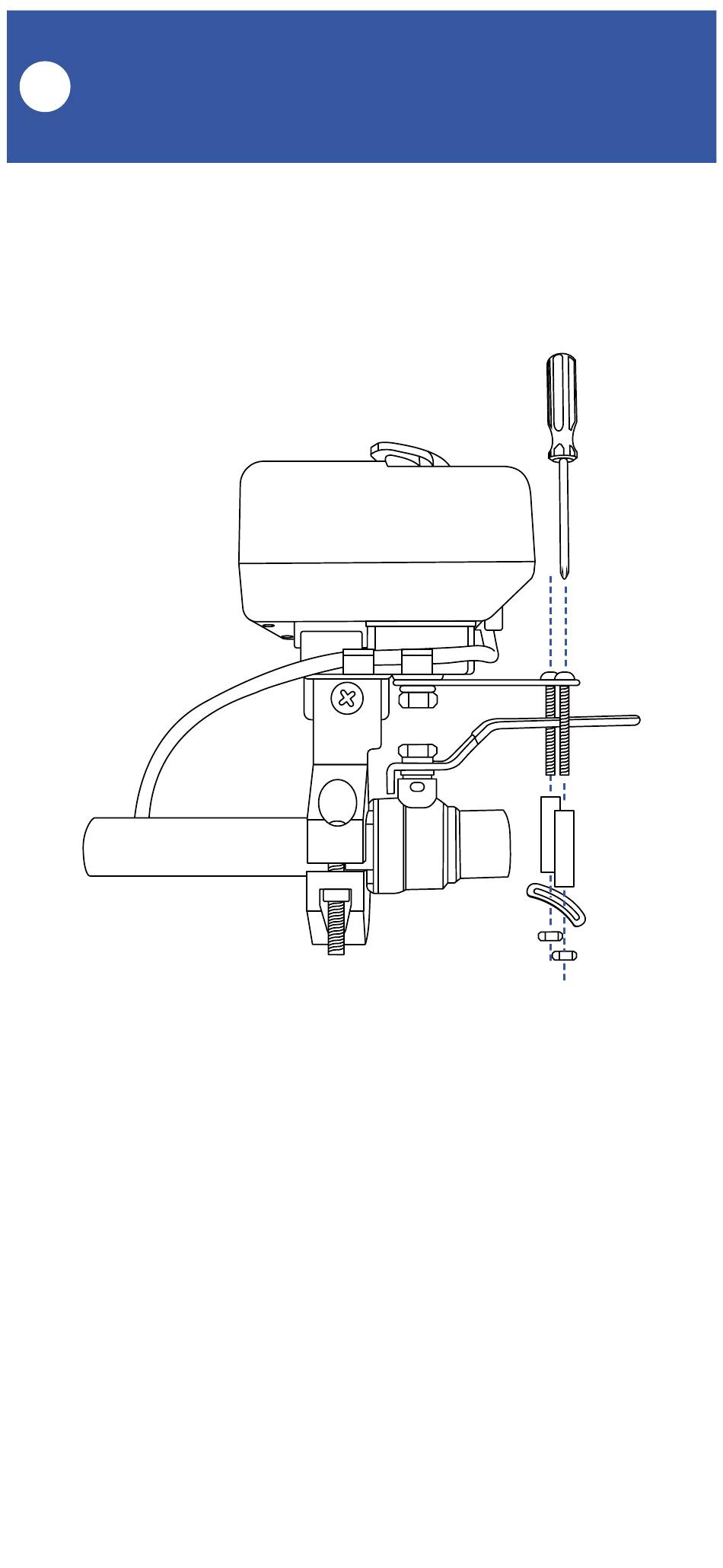

9. Place the bolts in the slot on the rocker arm,
with one on each side of the valve handle, as
shown.
10. Put the collars back on the bolts. Holding
them in place with one hand, insert the bottom
supporting bracket over the end of each bolt, as
shown. Insert and loosely tighten a nut on each
bolt. Now, position each bolt/collar so that it is
snug against the valve lever handle, with one on
each side of the handle. Using a Phillips
screwdriver, tighten the screw on each
bolt/collar assembly, holding the nut in place, as
needed. Confirm that each collar is snug against
the handle.
