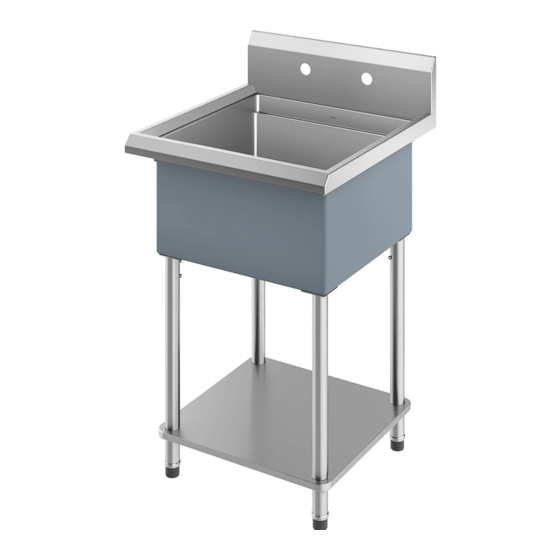

- Page 1 INSTALLATION GUIDE Scullery Workstation Stainless Steel Sinks KWS101-19 / KWS101-24 / KWS100-32 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. August 8, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Cleaning And Maintenance
Toll-Free: 800-775-0703 or customerservice@kraususa.com While these step-by-step instructions are intended to assist in the safe installation of a Kraus sink, this product is likely to perform best when installed by a licensed professional. The failure to follow these instructions or to hire a professional when needed may result in personal injury or property damage and may void the warranty. -
Page 4: Tools You Will Need
Tools you will need: Safety Goggles Drill Silicone Adhesive Jig Saw Phillips Screwdriver Cut Resistant Gloves Tape Measure Pencil Putty Knife Scissors Screwdriver Closed Toe Shoes Dimensions: 19" (482.6mm) 15 1/2" (393.7mm) Ø3 1/2" (90mm) R 3/8" (10mm) 8" Ø1 3/8" 1 1/4"... - Page 5 Dimensions: 24" (609.6mm) 20 1/2" (520.7mm) Ø3 1/2" (90mm) R 3/8" (10mm) 8" Ø1 3/8" 1 1/4" (203.2mm) (35mm) (32mm) typ. R 3/8" (10mm) 1 5/8" 17" 18" (455.9mm) (41.5mm) (433.1mm) 20 3/4" (527mm) 19 7/8" (505mm) Model #: KWS101-24 Overall Dimensions: 24"...
- Page 6 Dimensions: 32" (812.8mm) 28 1/2" (723.9mm) Ø3 1/2" (90mm) R 3/8" (10mm) Ø1 3/8" 8" 1 1/4" (35mm) (203.2mm) typ. (32mm) R 3/8" (10mm) 1 5/8" 26" (659.7mm) 17" (41.5mm) (433.1mm) 28 3/4" (730mm) 19 7/8" (505mm) Model #: KWS100.32 Overall Dimensions: 32"...
- Page 7 Diagram and Parts List Sink Bottom Shelf Screw M6 x16 - 16* 4 Legs * - 4 extra screws provided...
- Page 8 Step 1. Position the shelf onto the legs · Place the legs through the holes on the shelf. · Install the screws (C) but only fasten halfway. Fasten all 4 screws halfway...
- Page 9 Step 2. Position the sink onto the legs · Place the legs onto the bottom of the sink. Make sure the holes are aligned for the screws. · Install the screws (C) and fasten. · Holes are aligned Fasten all 8 screws (C)
- Page 10 Step 3. Fully tighten leg screws · Fully fasten the screws (C) on the legs. Fully fasten all 4 screws (C)
-
Page 11: Step 4. Adjust The Feet
Step 4. Adjust the feet · Flip the sink right side up and adjust the feet as needed to make the sink balanced by twisting clockwise or counterclockwise depending on the adjustment needed. Adjust the feet... - Page 12 Step 5. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. Run water into sink and check for leaks. ·...
